CENTER EDGE CLIP
Applications
* Edge clip is used along with cable ties for end application where drilling holes or adhesive mounts can't be fix. * Majorly used in automotive, wire harness, electrical and panel building etc.
Key Industries:
Automobile
Electrical / Electronics
Material: Clip - Nylon 66 and Insert - Steel
Colour: Black
Operating Temp: -40ºC to +85ºC
Flammability Rating: UL 94V-2
Installation: BY hand
Test Certificate:
Packing: 100 pcs bag in all sizes
Unit: 100 Pcs/Pkt

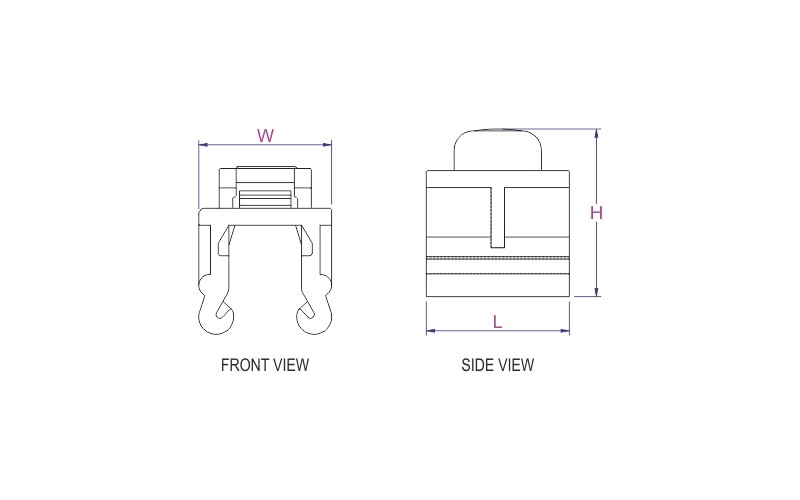

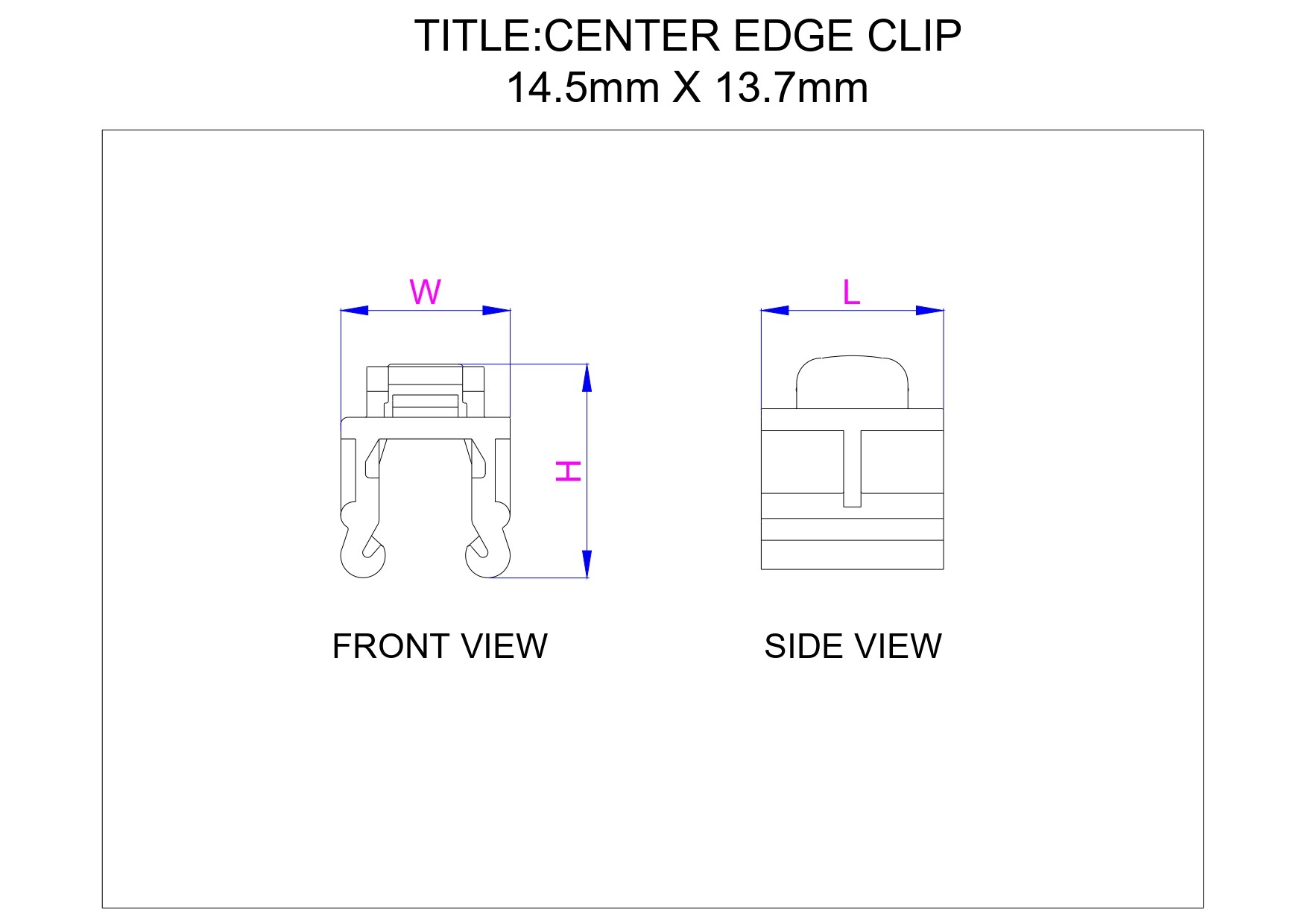

Tolerance:
Length: ±0.2mm
Width: ±0.3mm
Height: ±0.3mm
* Edge clip is two-piece assembly outside housing is nylon 66 body whereas inside metal clamp is assembled
* Edge clip is used along with cable tie
* Easy to push fit on any metal chassis

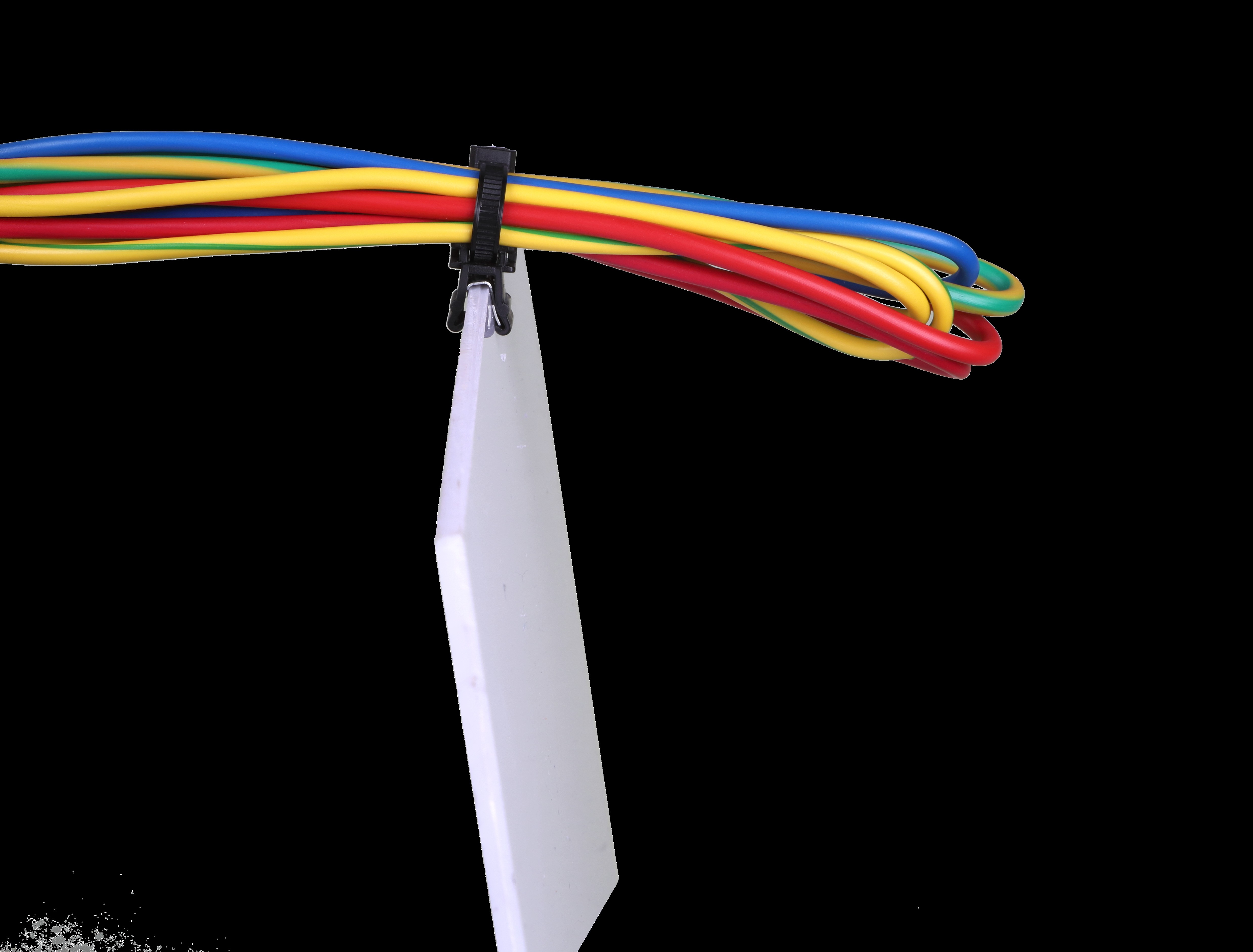

* It is used to keep cables maintain vertical, horizontal or in any angle direction against the chassis
* Edge clip is used along with cable tie
* Easy to push fit on any metal chassis
* It is used to keep cables maintain vertical, horizontal or in any angle direction against the chassis
