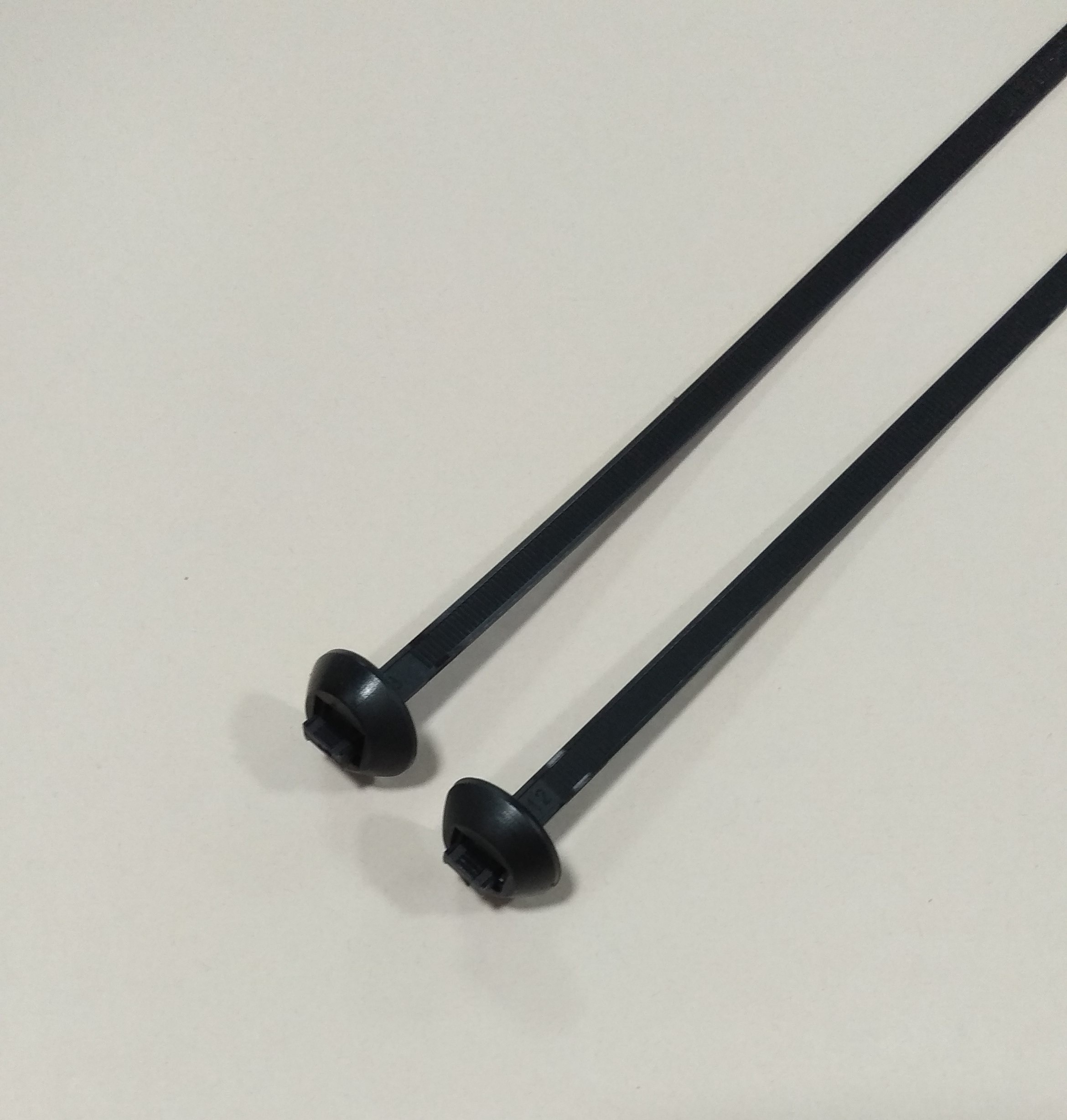

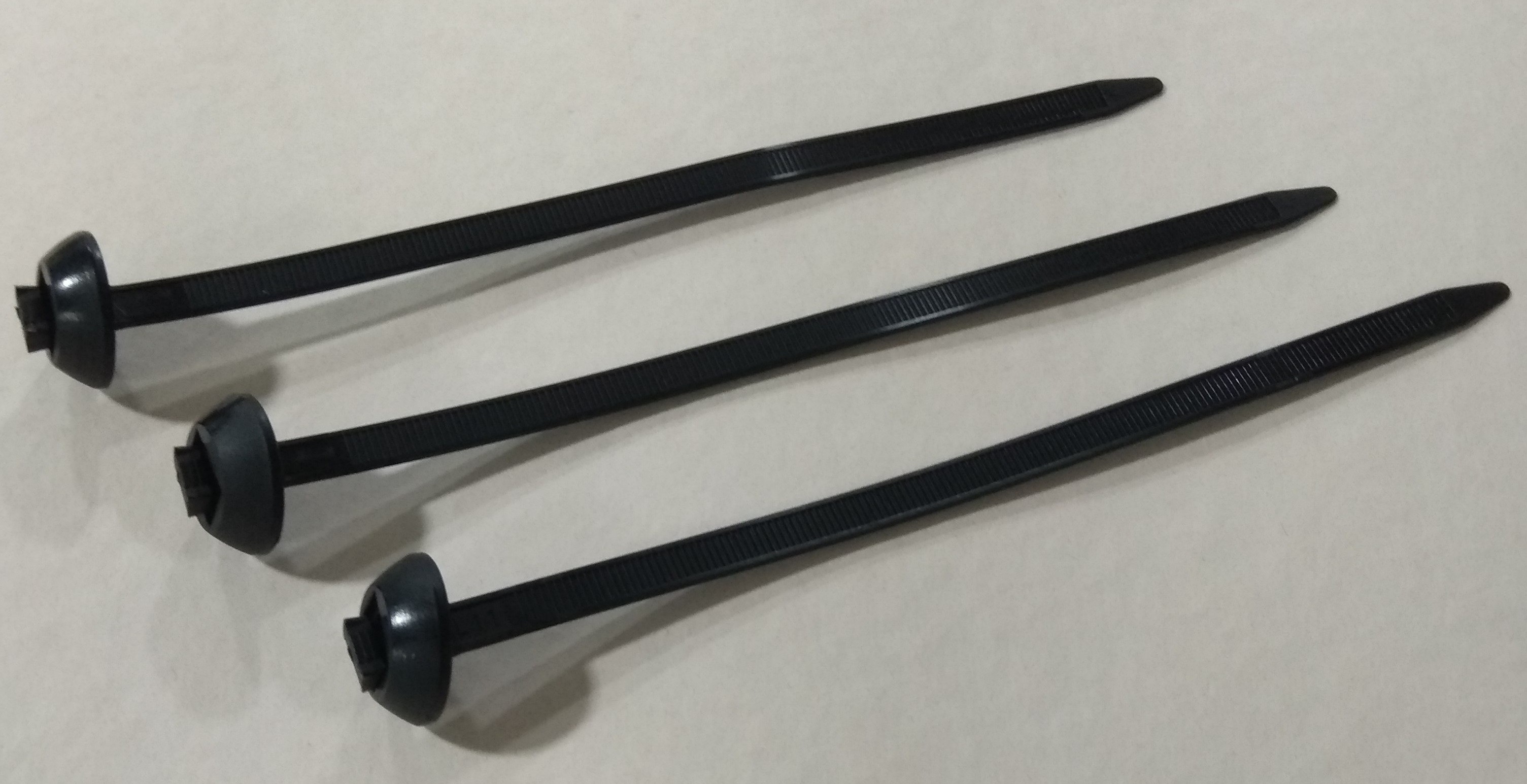

CHASSIS TIE HD & HOLDER
Applications
Chassis tie with holder are majorly used in automotive industries for heavy vehicle.
Key Industries:
Automobile
Material: Nylon 66
Colour: Black
Operating Temp: -40ºC to +85ºC
Flammability Rating: UL 94V-2
Installation: BY hand
Test Certificate:
Packing: 100 pcs bag in all sizes
Unit: 100 Pcs/Pkt
Tolerance:
Length: ±5mm
Width: ±0.2mm
Thickness: ±0.2mm
* Two piece construction
* Both side serration on the cable tie
* Small head height easily fit into a compact area
* Prior to final installation cable tie length is adjustable like releasable cable ties
* Both side serration on the cable tie
* Small head height easily fit into a compact area
* Prior to final installation cable tie length is adjustable like releasable cable ties
