COLORED CABLE TIES

Applications

For wire identification in electrical installation and for identification of productions bags in chemical & pharma industries.

Key Industries:

Chemicals & Refineries
Dairy & Food Processing
Drug & Pharma

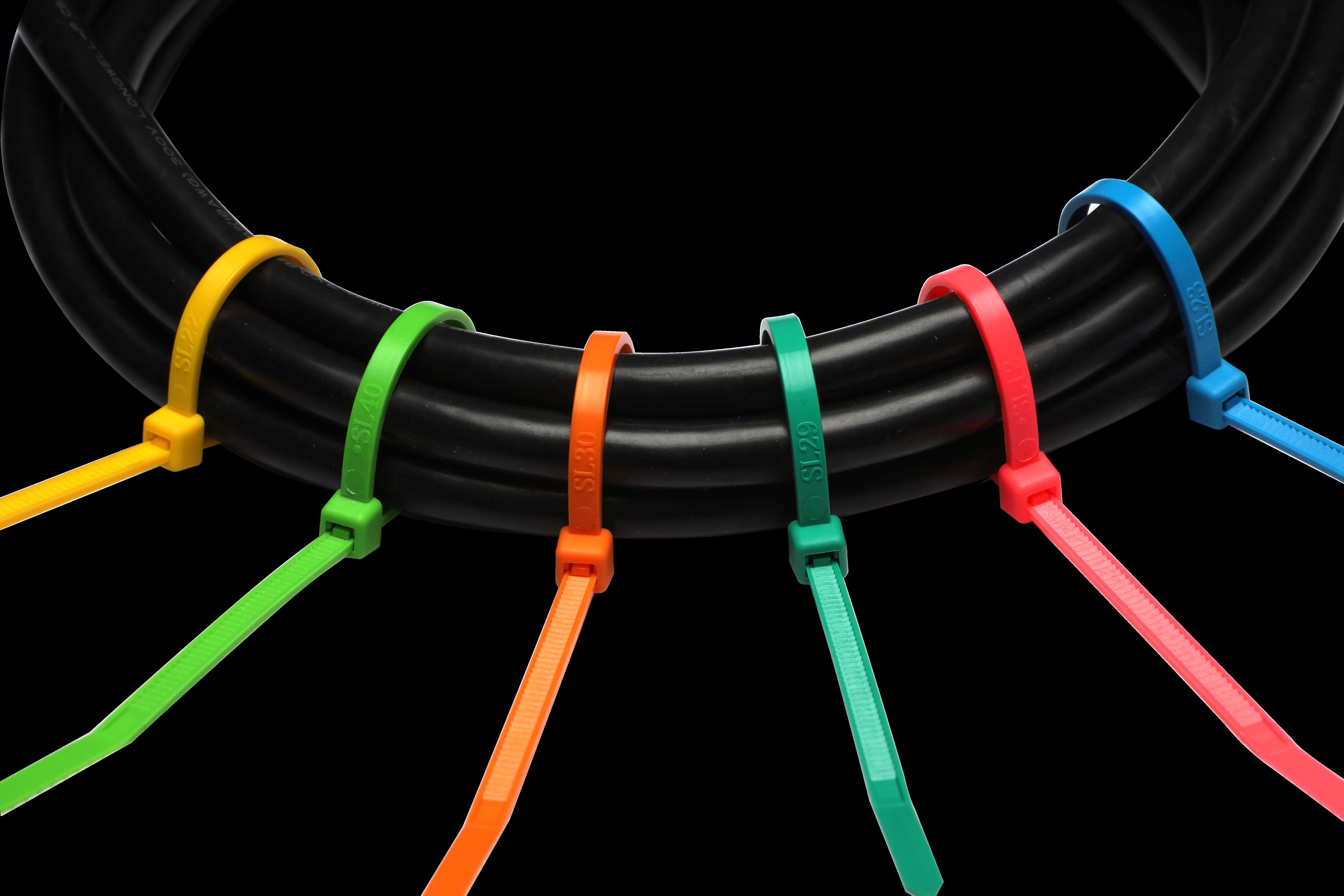

Green, Blue, Yellow Red Cable Ties

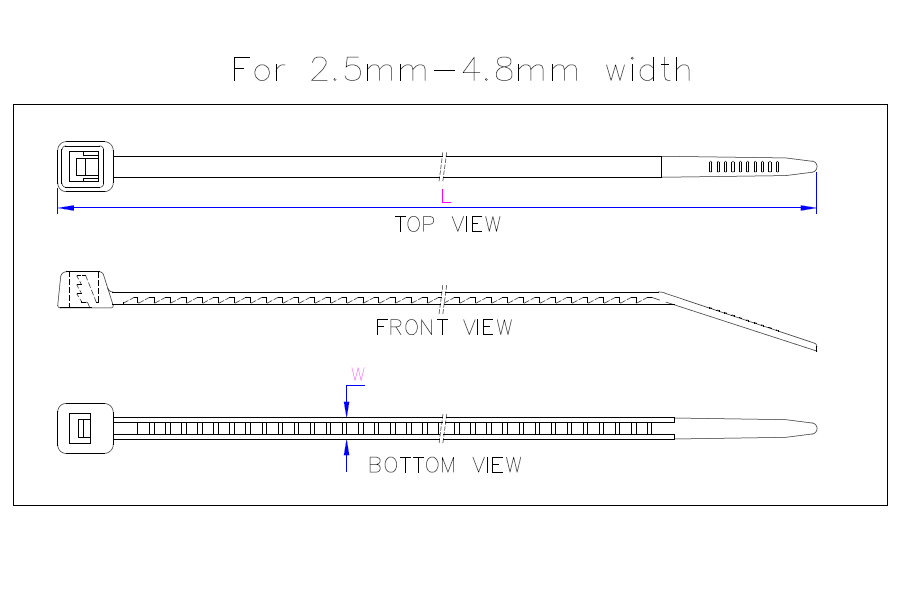

Green, Blue, Yellow Red Cable Ties Line Drawing - Colored Cable Ties Colored Nylon Cable Ties

Material: Nylon 66
Color: All colors are available
Operating Temp: -40°F to +85°C
Flammability Rating: UL 94V-2
Installation: By hand or tool cat no.........
Test Certificate:
Packing: 100 pcs bag in all sizes & 1000 pcs. bag upto 200mm length
Unit: 100 Pcs/Pkt & 1000 Pcs/K

* To order color cable ties find the 2 digit color code as under:

GN=Green, BE=Blue, YW=Yellow, RD=Red

Tolerance:
Length: ±1 to 5mm
Width: ±0.3 to 0.4mm
Thickness: ±0.2 to 0.4mm

Colored ties ensures easy identification of wires batch wise production bags.
Download Brochure
E-Catalogue
Length (mm) Width (mm) Thickness (mm) Length (inch) Tensile Strength Kgs (lbs) Maxi. Bundle Dia (mm) 100 pcs pack (PKT) 1000 pcs pack (K) PDF Drawing
75 2.5 1.04 3 8 (18) 12
SL-75GN
SL-75KGN
75 2.5 1.04 3 8 (18) 12
SL-75BE
SL-75KBE
75 2.5 1.04 3 8 (18) 12
SL-75YW
SL-75KYW
75 2.5 1.04 3 8 (18) 12
SL-75RD
SL-75KRD
104 2.5 1.06 4.1 8 (18) 22
SL-100GN
SL-100KGN
104 2.5 1.06 4.1 8 (18) 22
SL-100BE
SL-100KBE
104 2.5 1.06 4.1 8 (18) 22
SL-100YW
SL-100KYW
104 2.5 1.06 4.1 8 (18) 22
SL-100RD
SL-100KRD
104 2.5 1.20 4.1 12 (27) 22
SL-100XGN
SL-100XKGN
104 2.5 1.20 4.1 12 (27) 22
SL-100XBE
SL-100XKBE
104 2.5 1.20 4.1 12 (27) 22
SL-100XYW
SL-100XKYW
104 2.5 1.20 4.1 12 (27) 22
SL-100XRD
SL-100XKRD
120 2.5 1.1 4.7 8 (18) 27
SL-120GN
SL-120KGN
120 2.5 1.1 4.7 8 (18) 27
SL-120BE
SL-120KBE
120 2.5 1.1 4.7 8 (18) 27
SL-120YW
SL-120KYW
120 2.5 1.1 4.7 8 (18) 27
SL-120RD
SL-120KRD
150 2.5 1.20 5.9 8 (18) 35
SL-150GN
SL-150KGN
150 2.5 1.20 5.9 8 (18) 35
SL-150BE
SL-150KBE
150 2.5 1.20 5.9 8 (18) 35
SL-150YW
SL-150KYW
150 2.5 1.20 5.9 8 (18) 35
SL-150RD
SL-150KRD
200 2.5 1.15 7.9 8 (18) 53
SL-200GN
SL-200KGN
200 2.5 1.15 7.9 8 (18) 53
SL-200BE
SL-200KBE
200 2.5 1.15 7.9 8 (18) 53
SL-200YW
SL-200KYW
200 2.5 1.15 7.9 8 (18) 53
SL-200RD
SL-200KRD
153 3.6 1.25 6.0 18 (40) 35
SL-150IGN
SL-150IKGN
153 3.6 1.25 6.0 18 (40) 35
SL-150IBE
SL-150IKBE
153 3.6 1.25 6.0 18 (40) 35
SL-150IYW
SL-150IKYW
153 3.6 1.25 6.0 18 (40) 35
SL-150IRD
SL-150IKRD
153 3.7 1.35 6.0 22 (50) 35
SL-150IXGN
SL-150IXKGN
153 3.7 1.35 6.0 22 (50) 35
SL-150IXBE
SL-150IXKBE
153 3.7 1.35 6.0 22 (50) 35
SL-150IXYW
SL-150IXKYW
153 3.7 1.35 6.0 22 (50) 35
SL-150IXRD
SL-150IXKRD
204 3.6 1.30 8.0 18 (40) 53
SL-200IGN
SL-200IKGN
204 3.6 1.30 8.0 18 (40) 53
SL-200IBE
SL-200IKBE
204 3.6 1.30 8.0 18 (40) 53
SL-200IYW
SL-200IKYW
204 3.6 1.30 8.0 18 (40) 53
SL-200IRD
SL-200IKRD
250 3.6 1.40 9.8 18 (40) 68
SL-250IGN
250 3.6 1.40 9.8 18 (40) 68
SL-250IBE
250 3.6 1.40 9.8 18 (40) 68
SL-250IYW
250 3.6 1.40 9.8 18 (40) 68
SL-250IRD
300 3.6 1.45 11.8 18 (40) 80
SL-300IGN
300 3.6 1.45 11.8 18 (40) 80
SL-300IBE
300 3.6 1.45 11.8 18 (40) 80
SL-300IYW
300 3.6 1.45 11.8 18 (40) 80
SL-300IRD
368 3.6 1.60 14.5 18 (40) 104
SL-368IGN
368 3.6 1.60 14.5 18 (40) 104
SL-368IBE
368 3.6 1.60 14.5 18 (40) 104
SL-368IYW
368 3.6 1.60 14.5 18 (40) 104
SL-368IRD
200 4.8 1.45 8.0 30 (67) 53
SL-200SXGN
SL-200SXKGN
200 4.8 1.45 8.0 30 (67) 53
SL-200SXBE
SL-SXKBE
200 4.8 1.45 8.0 30 (67) 53
SL-200SXYW
SL-200SXKYW
200 4.8 1.45 8.0 30 (67) 53
SL-200SXRD
SL-200SXKRD
204 4.8 1.50 8.0 22 (50) 53
SL-200SGN
SL-200SKGN
204 4.8 1.50 8.0 22 (50) 53
SL-200SBE
SL-200SKBE
204 4.8 1.50 8.0 22 (50) 53
SL-200SYW
SL-SKYW
204 4.8 1.50 8.0 22 (50) 53
SL-200SRD
SL-200SKRD
254 4.8 1.45 10.0 22 (50) 68
SL-250SGN
SL-250SKGN
254 4.8 1.45 10.0 22 (50) 68
SL-250SBE
SL-250SKBE
254 4.8 1.45 10.0 22 (50) 68
SL-250SYW
SL-250SKYW
254 4.8 1.45 10.0 22 (50) 68
SL-250SRD
SL-250SKRD
315 4.8 1.55 12.4 22 (50) 86
SL-300SGN
315 4.8 1.55 12.4 22 (50) 86
SL-300SBE
315 4.8 1.55 12.4 22 (50) 86
SL-300SYW
315 4.8 1.55 12.4 22 (50) 86
SL-300SRD
373 4.8 1.55 14.7 22 (50) 104
SL-368SGN
373 4.8 1.55 14.7 22 (50) 104
SL-368SBE
373 4.8 1.55 14.7 22 (50) 104
SL-368SYW
373 4.8 1.55 14.7 22 (50) 104
SL-368SRD
455 4.8 1.55 17.9 22 (50) 130
SL-450SGN
455 4.8 1.55 17.9 22 (50) 130
SL-450SBE
455 4.8 1.55 17.9 22 (50) 130
SL-450SYW
455 4.8 1.55 17.9 22 (50) 130
SL-450SRD
550 4.8 1.55 21.7 22 (50) 165
SL-550SGN
550 4.8 1.55 21.7 22 (50) 165
SL-550SBE
550 4.8 1.55 21.7 22 (50) 165
SL-550SYW
550 4.8 1.55 21.7 22 (50) 165
SL-550SRD
206 7.8 1.82 8.1 55 (120) 53
SL-200HGN
206 7.8 1.82 8.1 55 (120) 53
SL-200HBE
206 7.8 1.82 8.1 55 (120) 53
SL-200HYW
206 7.8 1.82 8.1 55 (120) 53
SL-200HRD
256 7.8 1.82 10.1 55 (120) 68
SL-250HGN
256 7.8 1.82 10.1 55 (120) 68
SL-250HBE
256 7.8 1.82 10.1 55 (120) 68
SL-250HYW
256 7.8 1.82 10.1 55 (120) 68
SL-250HRD
312 7.8 1.82 12.3 55 (120) 82
SL-300HGN
312 7.8 1.82 12.3 55 (120) 82
SL-300HBE
312 7.8 1.82 12.3 55 (120) 82
SL-300HYW
312 7.8 1.82 12.3 55 (120) 82
SL-300HRD
382 7.8 1.82 15.0 55 (120) 105
SL-380HGN
382 7.8 1.82 15.0 55 (120) 105
SL-380HBE
382 7.8 1.82 15.0 55 (120) 105
SL-380HYW
382 7.8 1.82 15.0 55 (120) 105
SL-380HRD
453 8.1 1.95 17.8 55 (120) 130
SL-450HGN
453 8.1 1.95 17.8 55 (120) 130
SL-450HBE
453 8.1 1.95 17.8 55 (120) 130
SL-450HYW
453 8.1 1.95 17.8 55 (120) 130
SL-450HRD
551 9.1 2.15 21.7 80 (175) 163
SL-550HGN
551 9.1 2.15 21.7 80 (175) 163
SL-550HBE
551 9.1 2.15 21.7 80 (175) 163
SL-550HYW
551 9.1 2.15 21.7 80 (175) 163
SL-550HRD
616 9.1 2.15 24.3 80 (175) 180
SL-610HGN
616 9.1 2.15 24.3 80 (175) 180
SL-610HBE
616 9.1 2.15 24.3 80 (175) 180
SL-610HYW
616 9.1 2.15 24.3 80 (175) 180
SL-610HRD
716 9.1 2.0 28.2 80 (175) 210
SL-710HGN
716 9.1 2.0 28.2 80 (175) 210
SL-710HBE
716 9.1 2.0 28.2 80 (175) 210
SL-710HYW
716 9.1 2.0 28.2 80 (175) 210
SL-710HRD
816 9.1 2.0 32.1 80 (175) 240
SL-810HGN
816 9.1 2.0 32.1 80 (175) 240
SL-810HBE
816 9.1 2.0 32.1 80 (175) 240
SL-810HYW
816 9.1 2.0 32.1 80 (175) 240
SL-810HRD
916 9.1 2.0 36.1 80 (175) 276
SL-910HGN
916 9.1 2.0 36.1 80 (175) 276
SL-910HBE
916 9.1 2.0 36.1 80 (175) 276
SL-910HYW
916 9.1 2.0 36.1 80 (175) 276
SL-910HRD
1016 9.1 2.0 40.0 80 (175) 305
SL-1010HGN
1016 9.1 2.0 40.0 80 (175) 305
SL-1010HBE
1016 9.1 2.0 40.0 80 (175) 305
SL-1010HYW
1016 9.1 2.0 40.0 80 (175) 305
SL-1010HRD
