NON RELEASABLE VALUE SERIES CABLE TIES UV BLACK

Applications

For cable bunching in outdoor weather resistant application.

Key Industries:

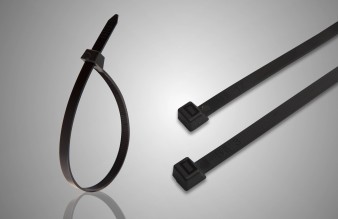

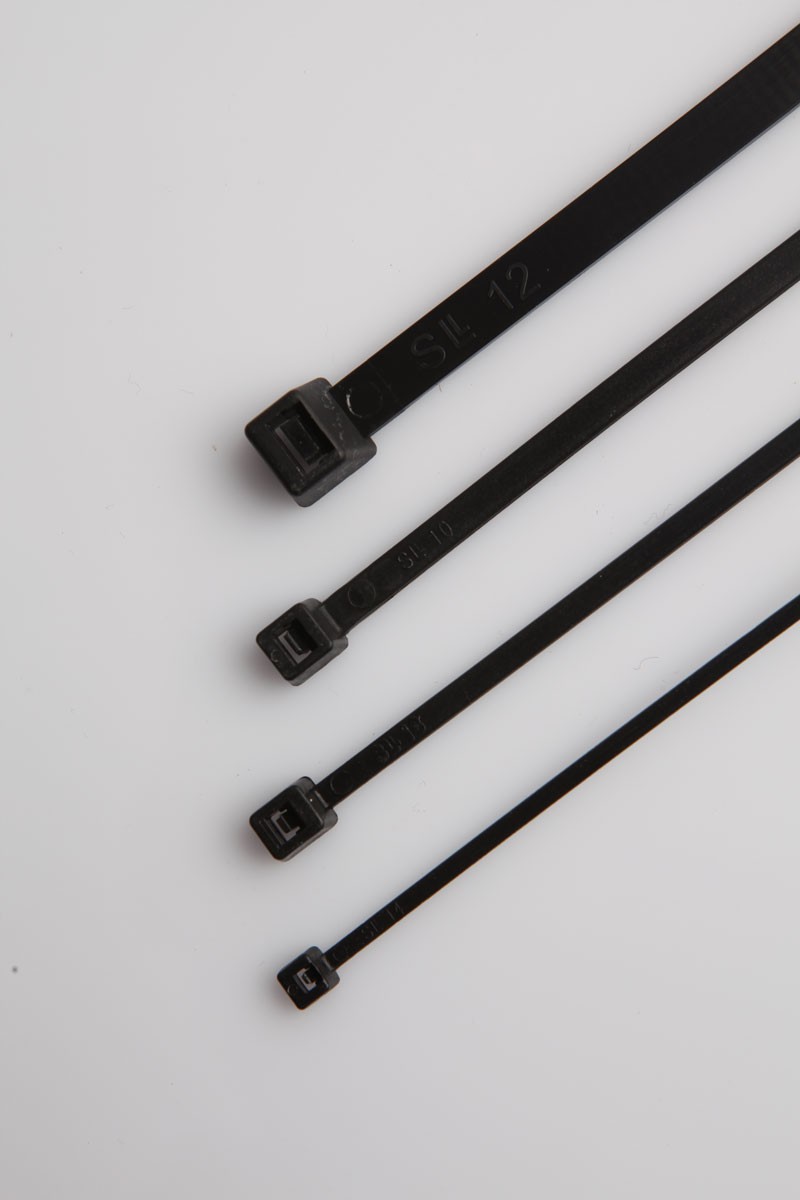

UV Black Non Releasable Value Series Cable Ties

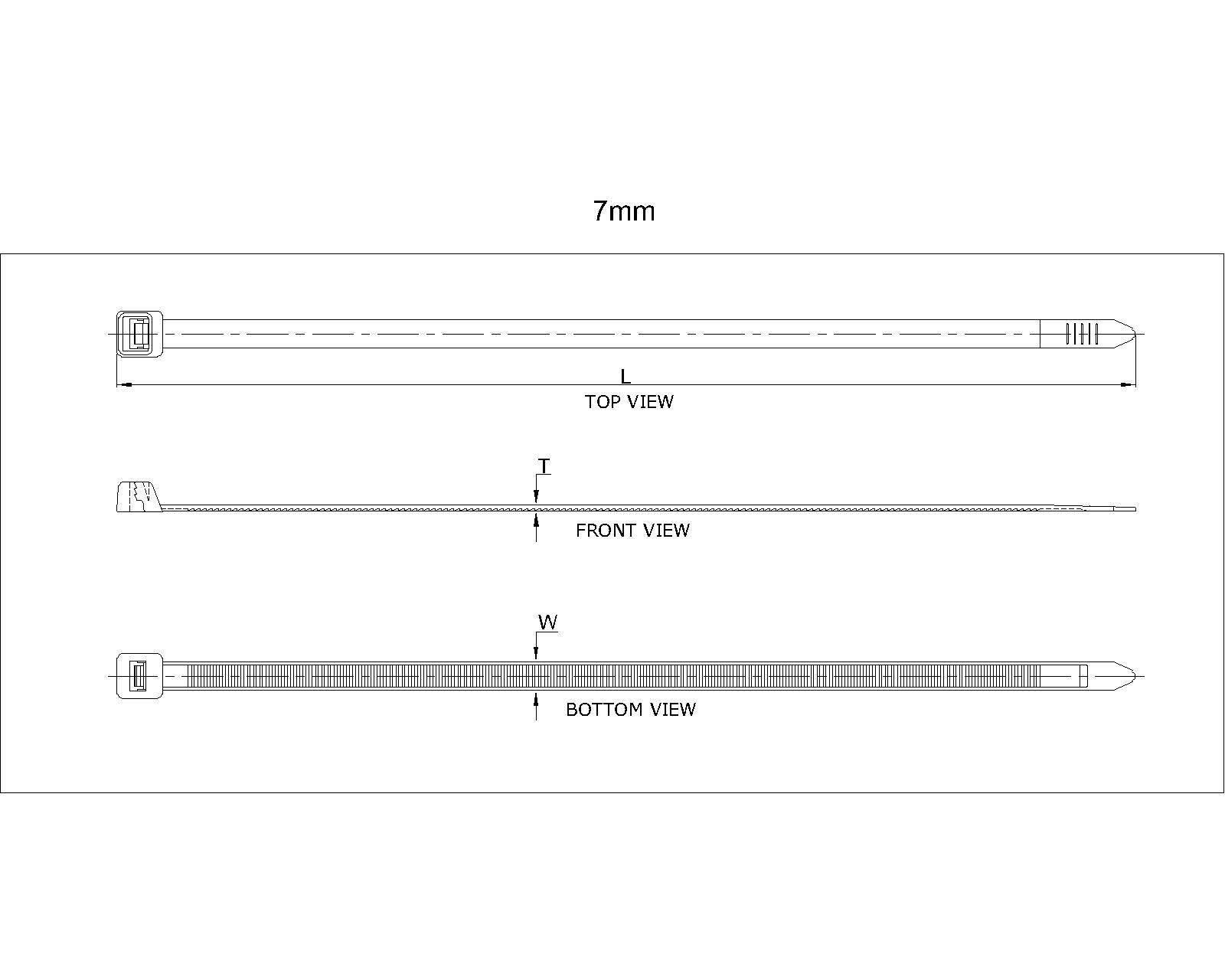

UV Black Non Releasable Value Series Cable Ties Value Series Cable Ties UV Black Line Drawing - Value Series Cable Ties UV Black

Material: Nylon 66
Color: Black
Operating Temp: -40°C to +85°C
Flammability Rating: UL 94V-2
Installation: By hand or tool cat no TT-3, TT-4, TT-5
Test Certificate: ROHS Compliance
Packing: 100 pcs bag in all sizes & 1000 pcs. bag upto 200mm length
Unit: 100 Pcs/Pkt & 1000 Pcs/K

Tolerance:
Length: ±1 to 3mm
Width: ±0.1 to 0.2mm
Thickness: ±0.05 to 0.1mm

* Low cost, economical design & uncompromised tensile strength
* UV ties are produced from a special grade of UV resistant nylon 6.6 which gives longer years of life span in outdoor climatic condition.
Length (mm) Width (mm) Thickness (mm) Length (inch) Tensile Strength Kgs (lbs) Maxi. Bundle Dia (mm) Cat No. 100 pcs pack (PKT) Cat No. 1000 pcs pack (K) PDF Drawing
100 2.2 0.90 3.9 8 (18) 22
SLV-100/U
SLV-100K/U
150 3.2 1.20 5.9 18 (40) 35
SLV-150I/U
SLV-150IK/U
200 3.2 1.20 7.9 18 (40) 50
SLV-200I/U
SLV-200IK/U
200 4.2 1.25 7.9 22 (49) 50
SLV-200S/U
SLV-200SK/U
250 4.2 1.30 9.8 22 (49) 65
SLV-250S/U
300 4.2 1.30 11.8 22 (49) 82
SLV-300S/U
355 4.2 1.40 14.0 22 (49) 100
SLV-355S/U
200 7.0 1.55 7.9 54 (119) 50
SLV-200LH/U
250 7.0 1.55 9.8 54 (119) 65
SLV-250LH/U
300 7.0 1.55 11.8 54 (119) 82
SLV-300LH/U
350 7.0 1.55 13.8 54 (119) 100
SLV-350LH/U
380 7.0 1.55 15.0 54 (119) 108
SLV-380LH/U
400 7.0 1.55 15.7 54 (119) 110
SLV-400LH/U
450 7.0 1.55 17.7 54 (119) 130
SLV-450LH/U
500 7.0 1.55 19.7 54 (119) 148
SLV-500LH/U
600 7.0 1.55 23.6 54 (119) 180
SLV-600LH/U
