RELEASABLE CABLE TIES LIGHT DUTY

Applications

* These are useful in wire harnessing where changes are anticipated during development, production or in the field. * Also used for temporary bag packing

Key Industries:

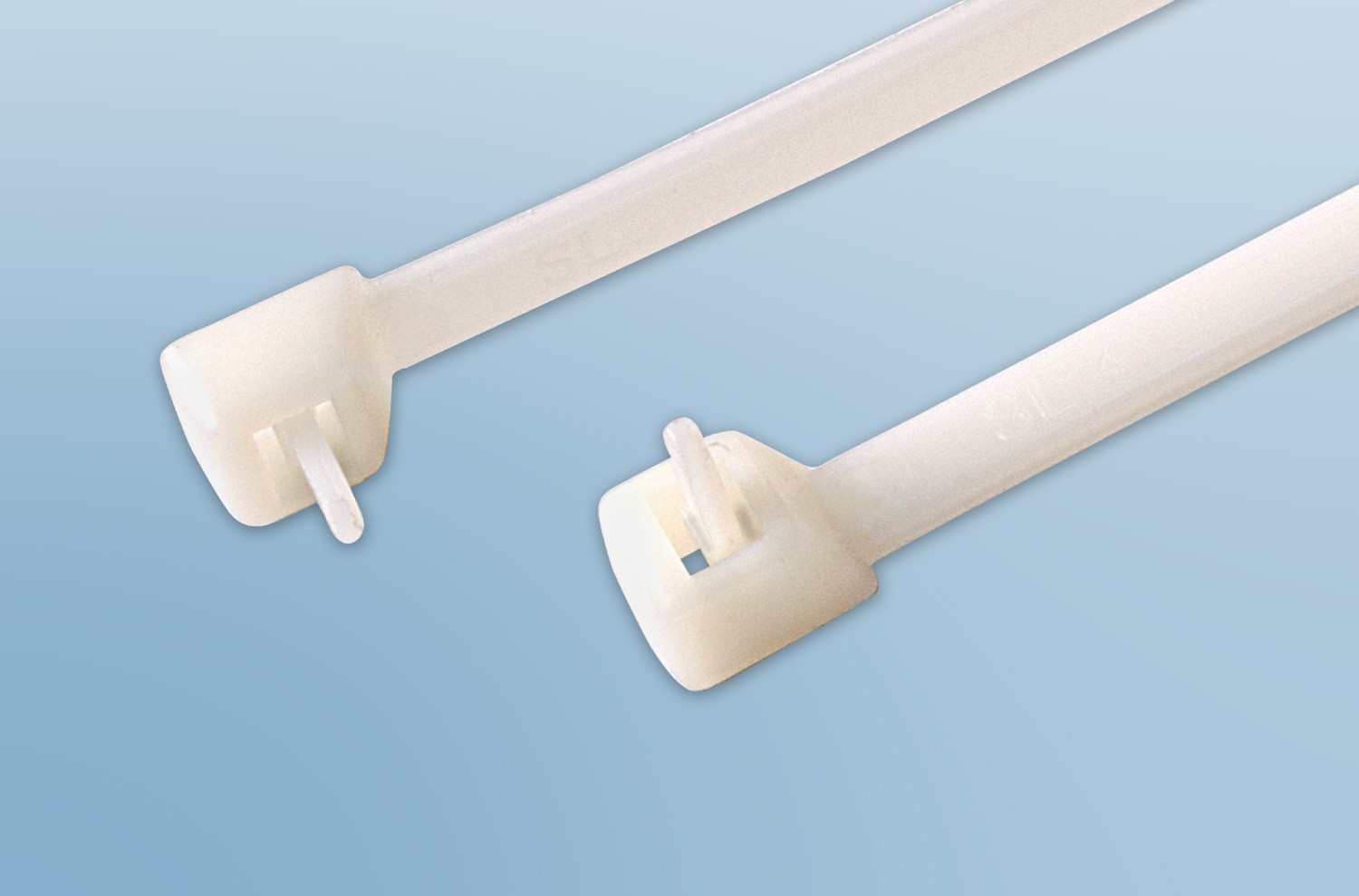

Light Duty Releasable Cable Ties Natural

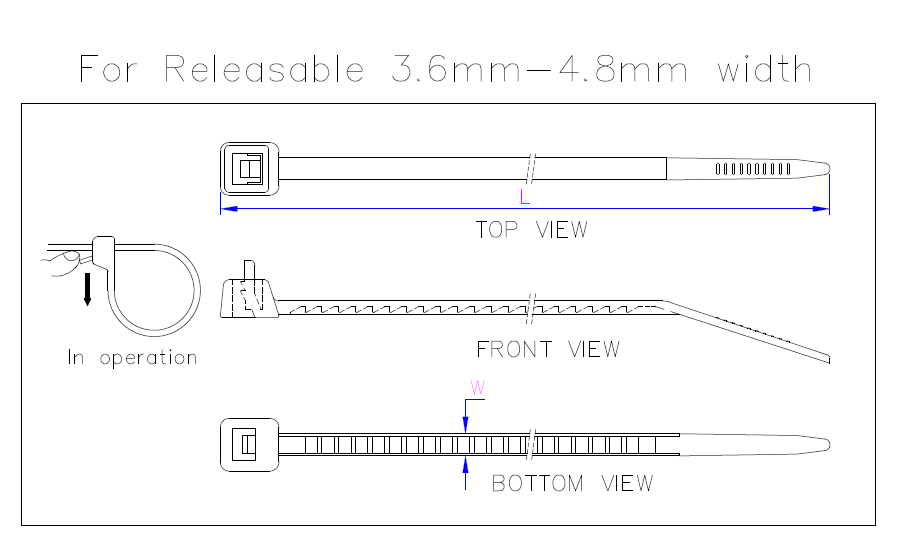

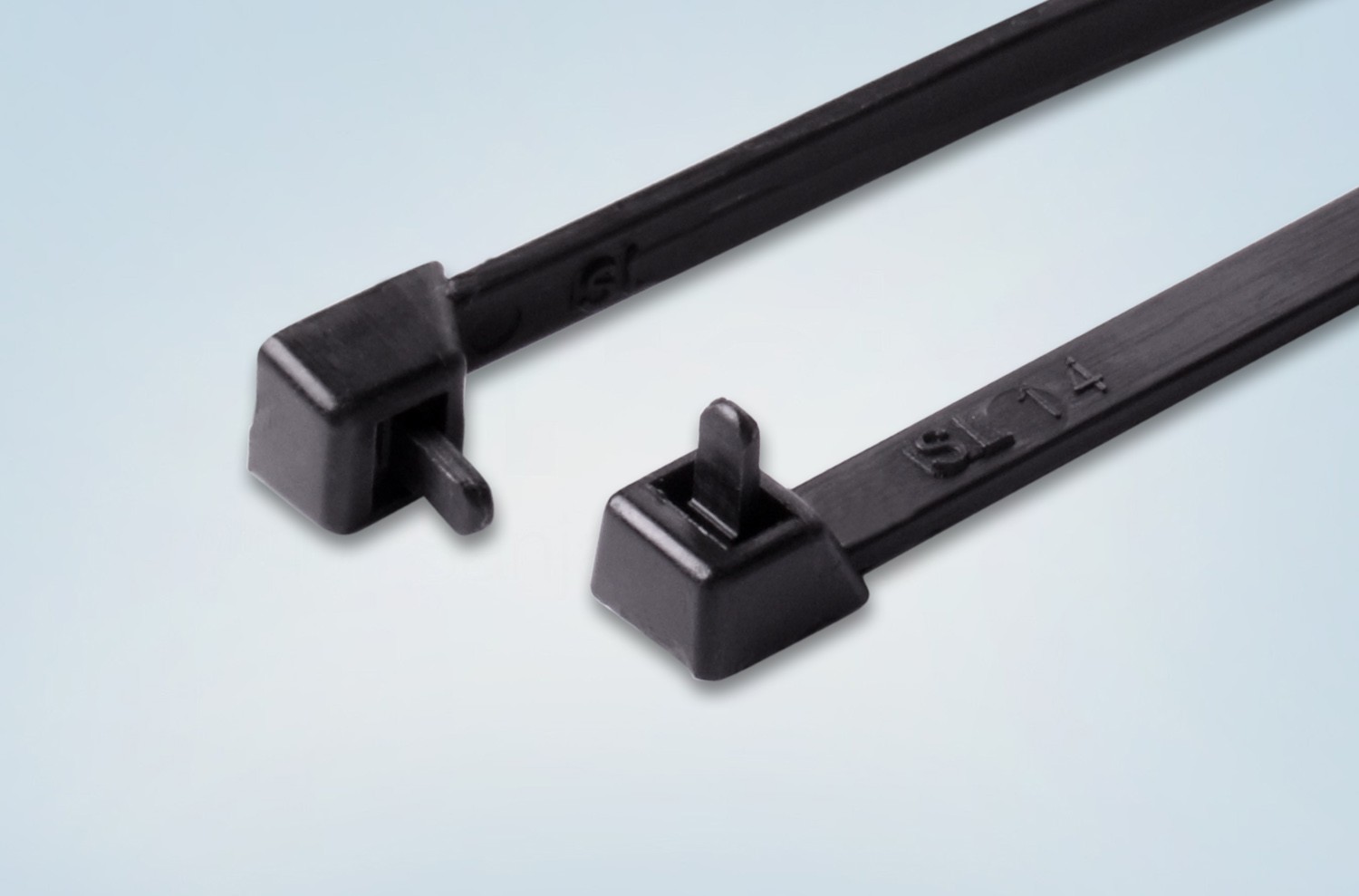

Light Duty Releasable Cable Ties Natural Light Duty Releasable Cable Ties Black Line Drawing - Releasable Cable Ties Light Duty

Material: Nylon 66
Color: Natural, Black
Operating Temp: -40°C to +85°C
Flammability Rating: UL 94V-2
Installation: By hand or tool cat no TT-3, TT-4, TT-5
Test Certificate: CE recognized / ROHS compliance
Packing: 100 pcs bag in all sizes & 1000 pcs. bag upto 200mm length
Unit: 100 Pcs/Pkt & 1000 Pcs/K

Tolerance:
Length: ±1 to 3mm
Width: ±0.1mm
Thickness: ±0.1mm

* The releasable cable tie permits easy release & reuse with a tab.
Length (mm) Width (mm) Thickness (mm) Length (inch) Tensile Strength Kgs(lbs) Maxi. Bundle Dia (mm) Natural 100 pcs pack Cat No. Natural 1000 pcs pack Cat No. Black 100 pcs pack Cat No. Black 1000 pcs pack Cat No. PDF Drawing
150 3.6 1.30 5.9 18 (40) 35
SLR-150I
SLR-150IK
SLR-150I/B
SLR-150IK/B
200 4.8 1.30 7.9 22 (49) 53
SLR-200S
SLR-200SK
SLR-200S/B
SLR-200SK/B
250 4.8 1.35 9.8 22 (49) 68
SLR-250S
SLR-250S/B
315 4.8 1.40 12.4 22 (49) 86
SLR-300S
SLR-300S/B
368 4.8 1.40 14.5 22 (49) 104
SLR-368S
SLR-368S/B
