FIRE RETARDANT METAL TOOTH TIES

Applications

* In fire hazardous area & for public transport where safety from fire is important * For durable locking in the adverse conditions like humidity, heat, cold, vibration & external shocks

Key Industries:

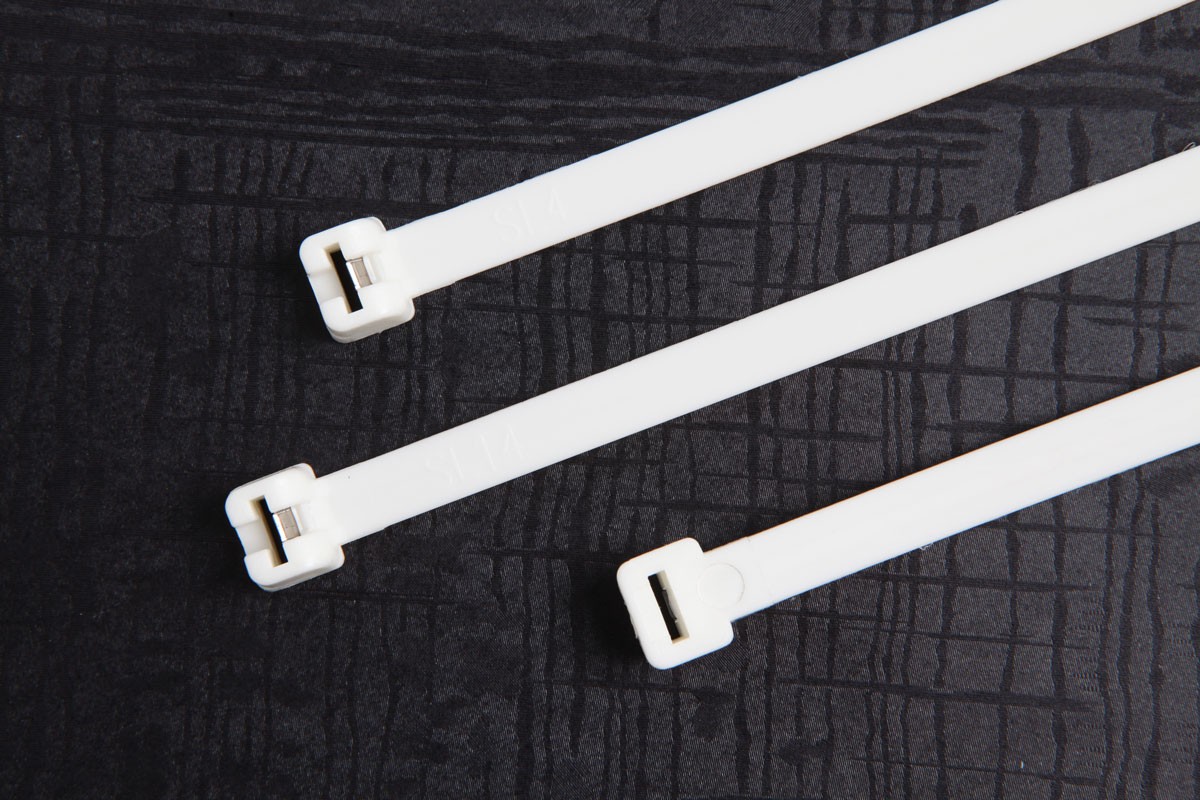

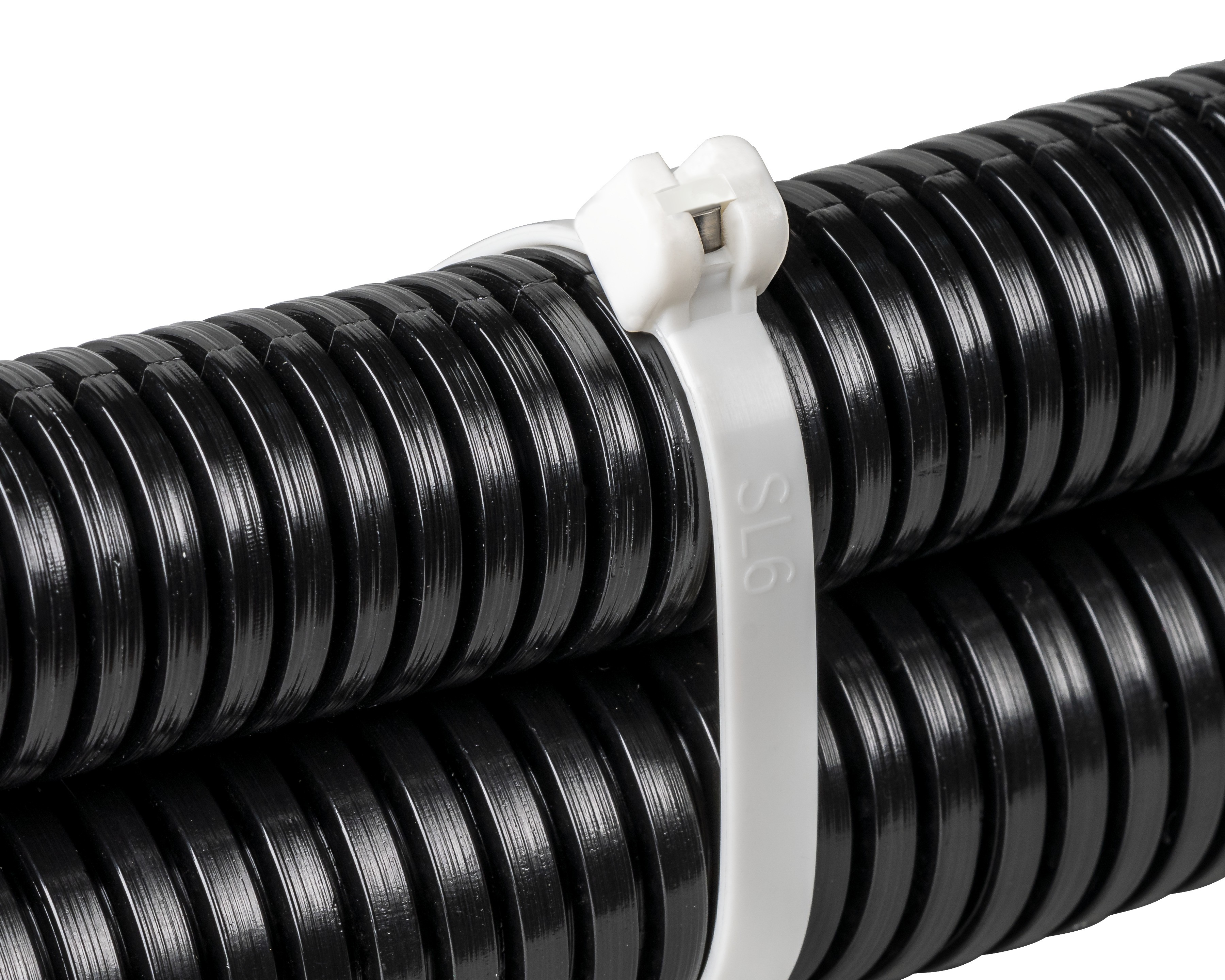

Metal Tooth Fire Retardant Cable Ties

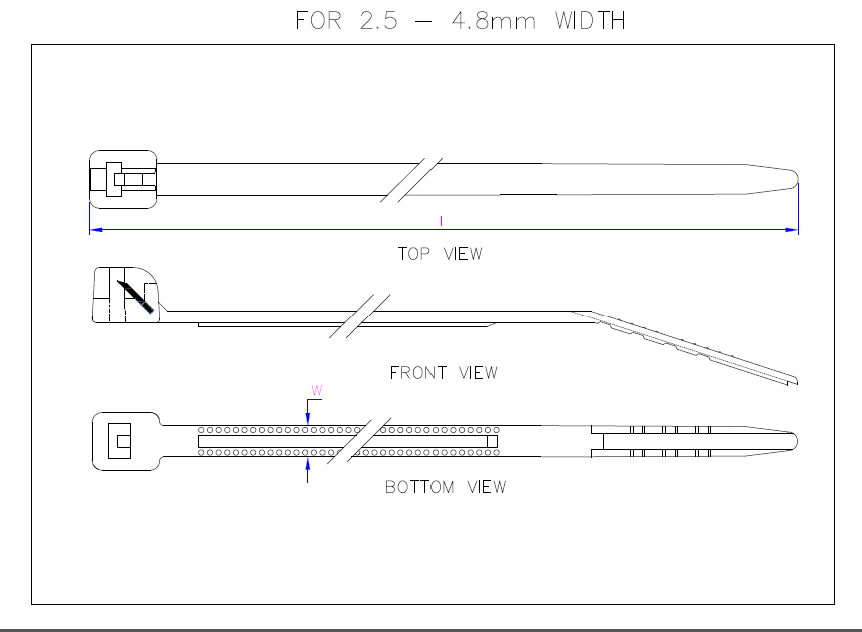

Metal Tooth Fire Retardant Cable Ties Metal Tooth Ties Fire Retardant Line Drawing - Fire Retardent Metal Tooth Ties

Material: Nylon 66
Colour: Milky White
Operating Temperature: -40°C to +85°C
Unit: 100 Pcs/Pkt

Tolerance:
Length: ±4mm
Width: ±0.4mm
Thickness: ±0.4mm

* Its self extinguish property does not allow the fire to travel further
* The corrosion proof, non-magnetic steel tooth firmly anchor inside the cabel tie length (body) with positive locking.
* No chances of slippage in adverse conditions
Length (mm) Width (mm) Length (inch) Tensile Strength Kgs(lbs) Maxi. Bundle Dia (mm) Cat No. PDF Drawing
100 2.5 4.0 8 (18) 22
SLM-100/F
200 2.5 8.0 8 (18) 50
SLM-200/F
150 3.6 6.0 18 (40) 30
SLM-150I/F
200 3.6 8.0 18 (40) 50
SLM-200I/F
280 3.6 11.0 18 (40) 76
SLM-280I/F
200 4.8 8.0 22 (49) 50
SLM-200S/F
290 4.8 11.4 22 (49) 78
SLM-290S/F
360 4.8 14.2 22 (49) 102
SLM-360S/F
220 7.6 8.6 54 (119) 57
SLM-220LH/F
300 7.6 11.8 54 (119) 80
SLM-300LH/F
368 7.6 14.5 54 (119) 102
SLM-368LH/F
538 7.6 21.2 54 (119) 158
SLM-538LH/F
780 7.6 30.7 54 (119) 230
SLM-780LH/F
