HEAT STABILISED METAL TOOTH TIES

Applications

* For cable bunching requirement in high temperature condition * For durable locking in the adverse conditions like humidity, heat, cold, vibration & external shocks

Key Industries:

Metal Tooth Ties Heat Stabilized

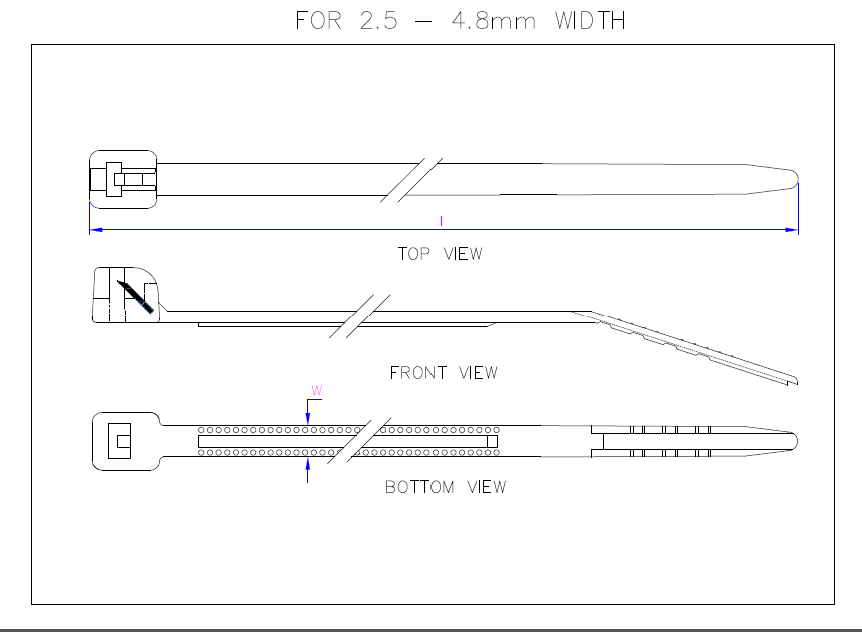

Metal Tooth Ties Heat Stabilized Metal Tooth Heat Stabilised Cable Ties Line Drawing - Heat Stabilized Metal Tooth Ties

Material: Nylon 66
Colour: Light Green
Operating Temperature: -40°C to +125°C
Unit: 100 Pcs/Pkt

Tolerance:
Length: ±4mm
Width: ±0.4mm
Thickness: ±0.4mm

* For wire/cable bunching in extreme temp. conditions of +125°C
* The corrosion proof, non-magnetic steel tooth firmly anchor inside the cabel tie length (body) with positive locking.
* No chances of slippage in adverse conditions



Length (mm) Width (mm) Length (inch) Tensile Strength Kgs (lbs) Maxi. Bundle Dia (mm) Cat No. PDF Drawing
100 2.5 4.0 8 (18) 22
SLM-100/H
200 2.5 8.0 8 (18) 50
SLM-200/H
150 3.6 6.0 18 (40) 30
SLM-150I/H
200 3.6 8.0 18 (40) 50
SLM-200I/H
280 3.6 11.0 18 (40) 76
SLM-280I/H
200 4.8 8.0 22 (49) 50
SLM-200S/H
290 4.8 11.4 22 (49) 78
SLM-290S/H
360 4.8 14.2 22 (49) 102
SLM-360S/H
220 7.6 8.6 54 (119) 57
SLM-220LH/H
300 7.6 11.8 54 (119) 80
SLM-300LH/H
368 7.6 14.5 54 (119) 102
SLM-368LH/H
538 7.6 21.2 54 (119) 158
SLM-538LH/H
780 7.6 30.7 54 (119) 230
SLM-780LH/H
