ADJUSTABLE BALL PULL UP SEAL

Applications

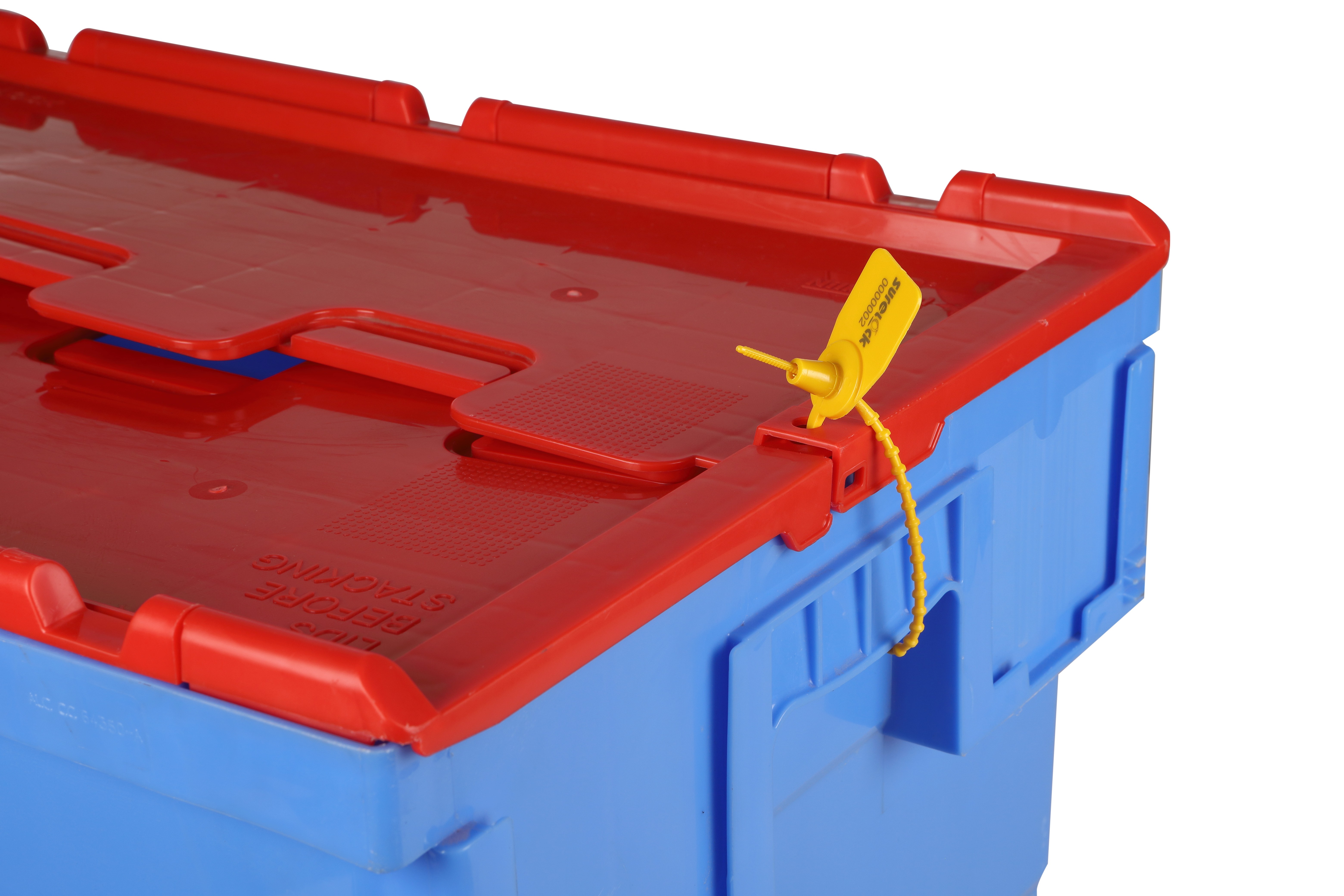

For sealing door locks, eyelets, drums and bags

Key Industries:

Ball Pull UP Seal

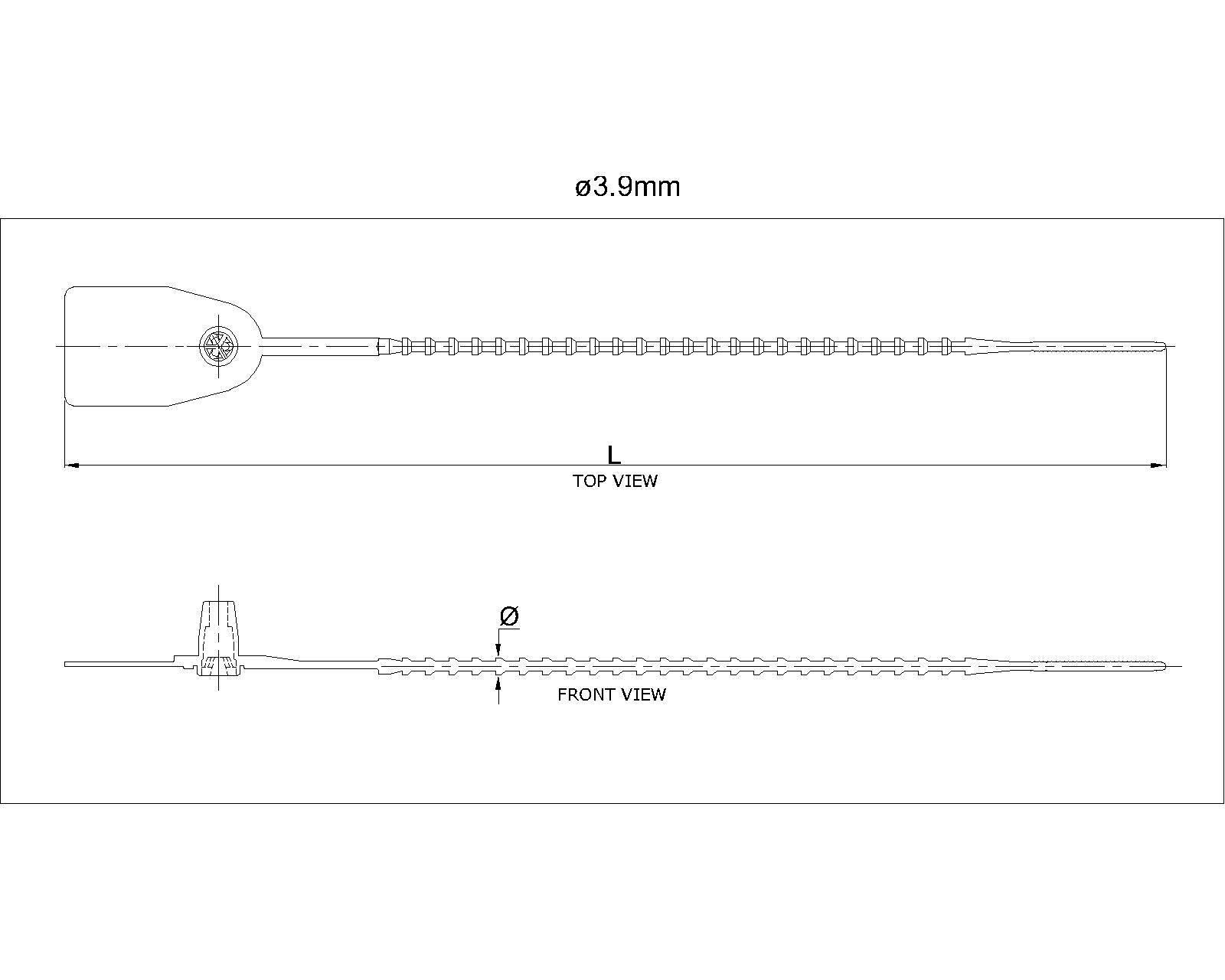

Ball Pull UP Seal Line Drawing - Adjustable Ball Pull UP Seal Adjustable Ball Pull Up Seal

Material: Nylon or HDPE
Color:
* Red, Yellow, Blue, Green, Orange, White are standard colors
* Other colors available upon request
Operating Temp: -40°C to +85°C
Unit: 100 Pcs/Pkt
* Its self locking design ensures firm locking of cone – ball shaped adjustable length & accommodates varied diameter leaving no changes of failure or tempering
* Its unique design with acetal insert locking mechanism provides temper proof secure locking
* Contains no metal parts & it is recyclable
Size Lx Dia. (mm) Material Tensile Strength Kgs (lbs) Tag Marking Space (L x W) Cat No. PDF Drawing
260 x 4.0 NYLON 30 (66) 22 x 24
SSB-2604L
260 x 4.0 POLYPROPYLENE 22 (49) 22 x 24
SSB-2604PL
390 x 4.0 NYLON 30 (66) 22 x 24
SSB-3904L
390 x 4.0 POLYPROPYLENE 22 (49) 22 x 24
SSB-3904PL
