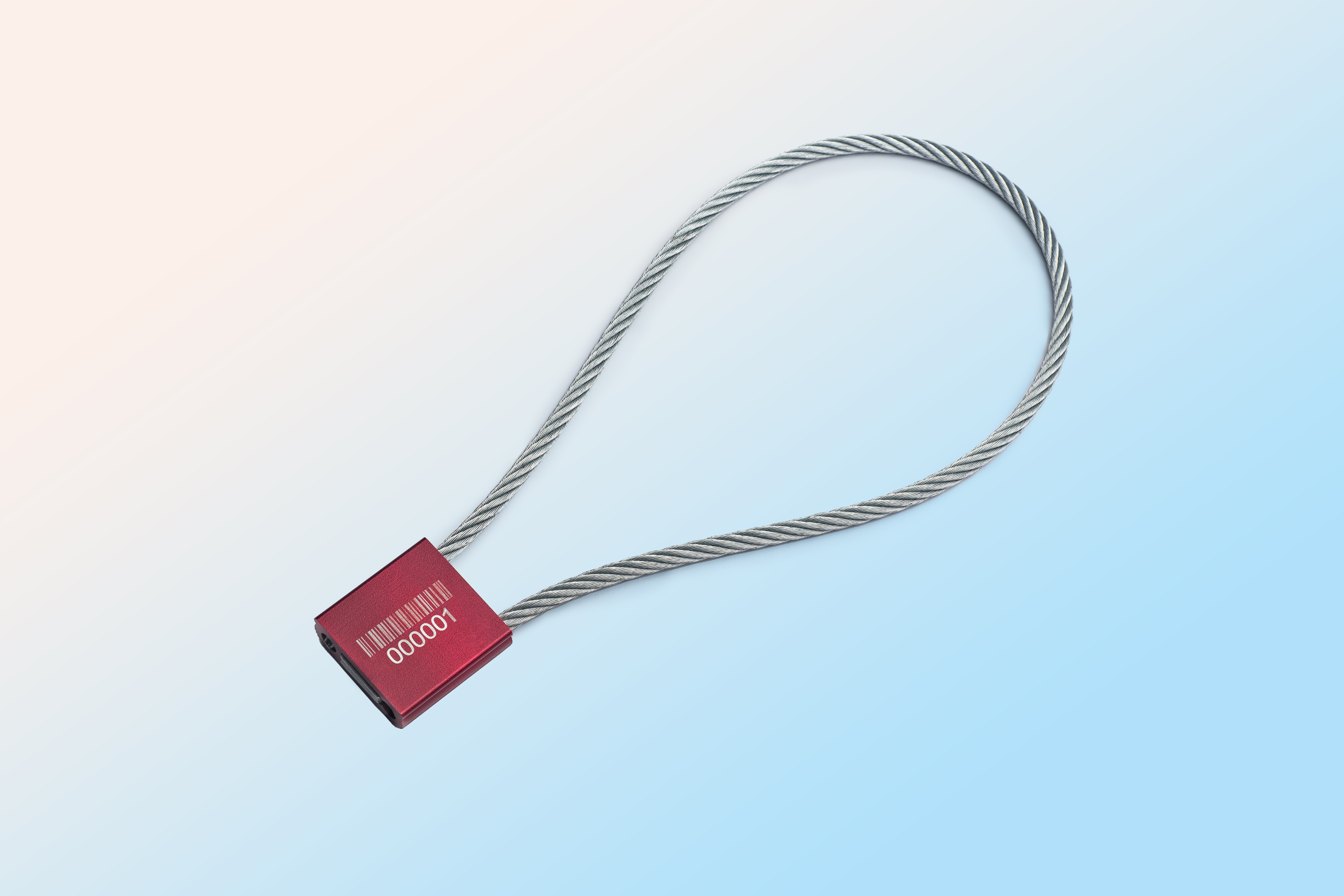

CABLE SEAL

Applications

Containers, Truck Doors, Trailers, Warehouses, Refineries, Storage Tanks etc.

Key Industries:

CABLE SEAL

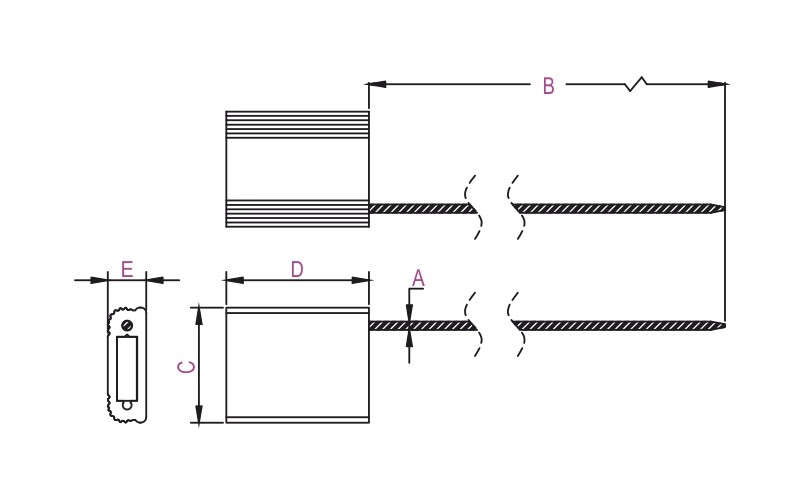

CABLE SEAL Line Drawing - CableSeal CABLE SEAL

Material: Casing: Aluminium Alloy
                 Cable: Non-performed galvanized steel
Color:     Red, Blue, Green, Black, Orange, White
               (Metallic) are standard colours
               (Special Colours can be provided)
Packing: 200 & 250 mm - 500 seals per carton
                 250 to 400mm - 250 seals per carton

* Locking mechanism with unique design ensures the seal is firmly secured against any possibility of tampering
* No possibility of re-sealing of cables as non-preformed cables unravels once after cutting
* Robust design protects high-value cargo shipment
* Highly tempered proof laser marking
* Certification as per ISO 17712: 2013 & C-TPAT

Cable Diameter A (mm) Cable Length B (mm) Casing Dimension C Width (mm) Casing Dimension D Length (mm) Casing Dimension E Thickness (mm) Tens. Str. Kgs (lbs) Marking Space on Product (L x W) Cat No. PDF Drawing
1.5mm 300 21.0 26.0 7.0 250 (557) 22 x 17
SSCC-30015A
2.5mm 300 26.0 26.0 8.0 500 (1102) 22 x 22
SSCC-30025A
3.5mm 300 26.0 26.0 9.0 1000 (2205) 22 x 22
SSCC-30035A
4.0mm 300 26.0 26.0 9.0 1050 (2315) 22 x 22
SSCC-30040A
5.0mm 300 41.4 35.0 12.0 1500 (3307) 31 x 37
SSCC-30050A
