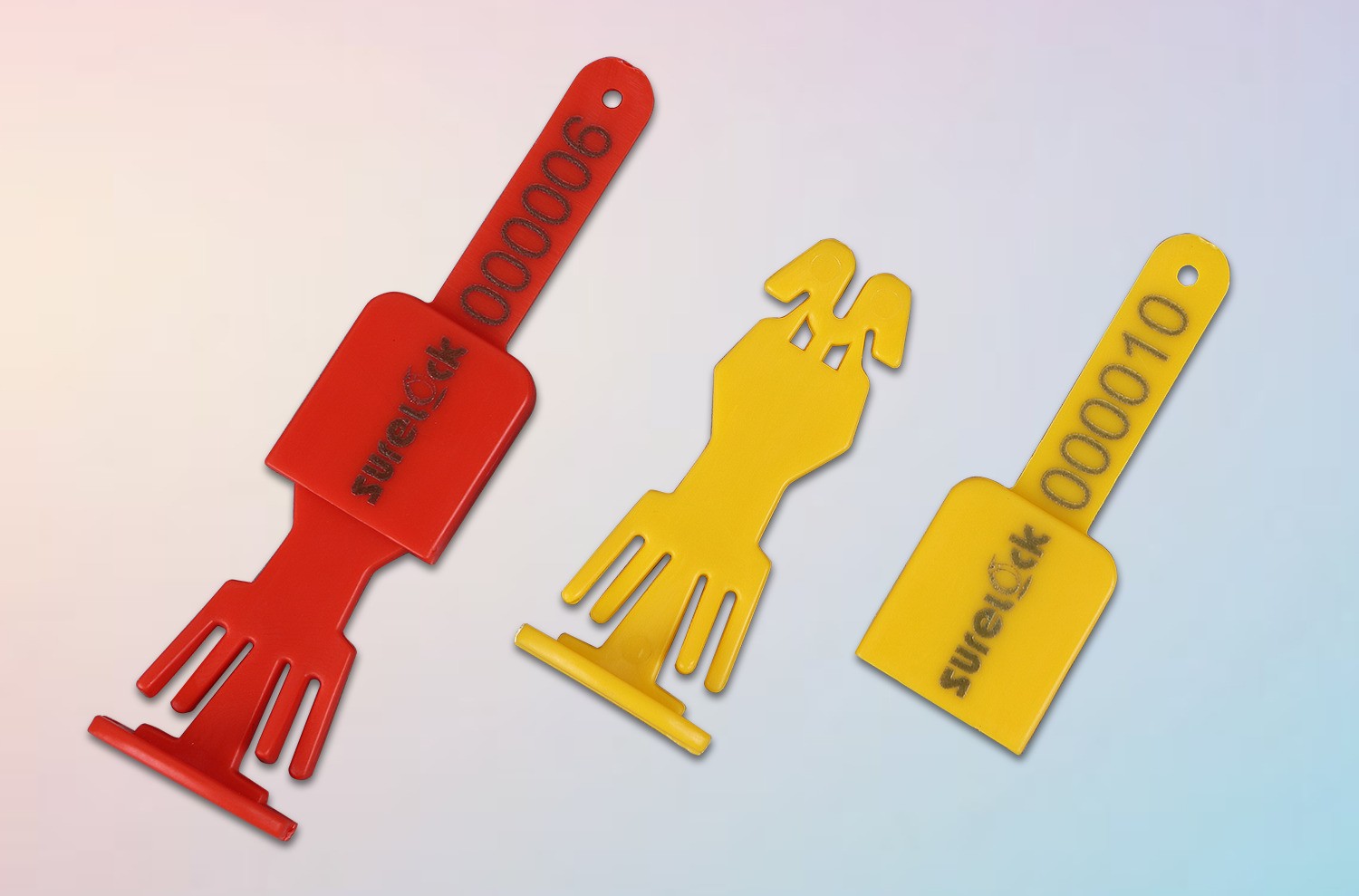

DRUM SEAL MALE/FEMALE

Applications

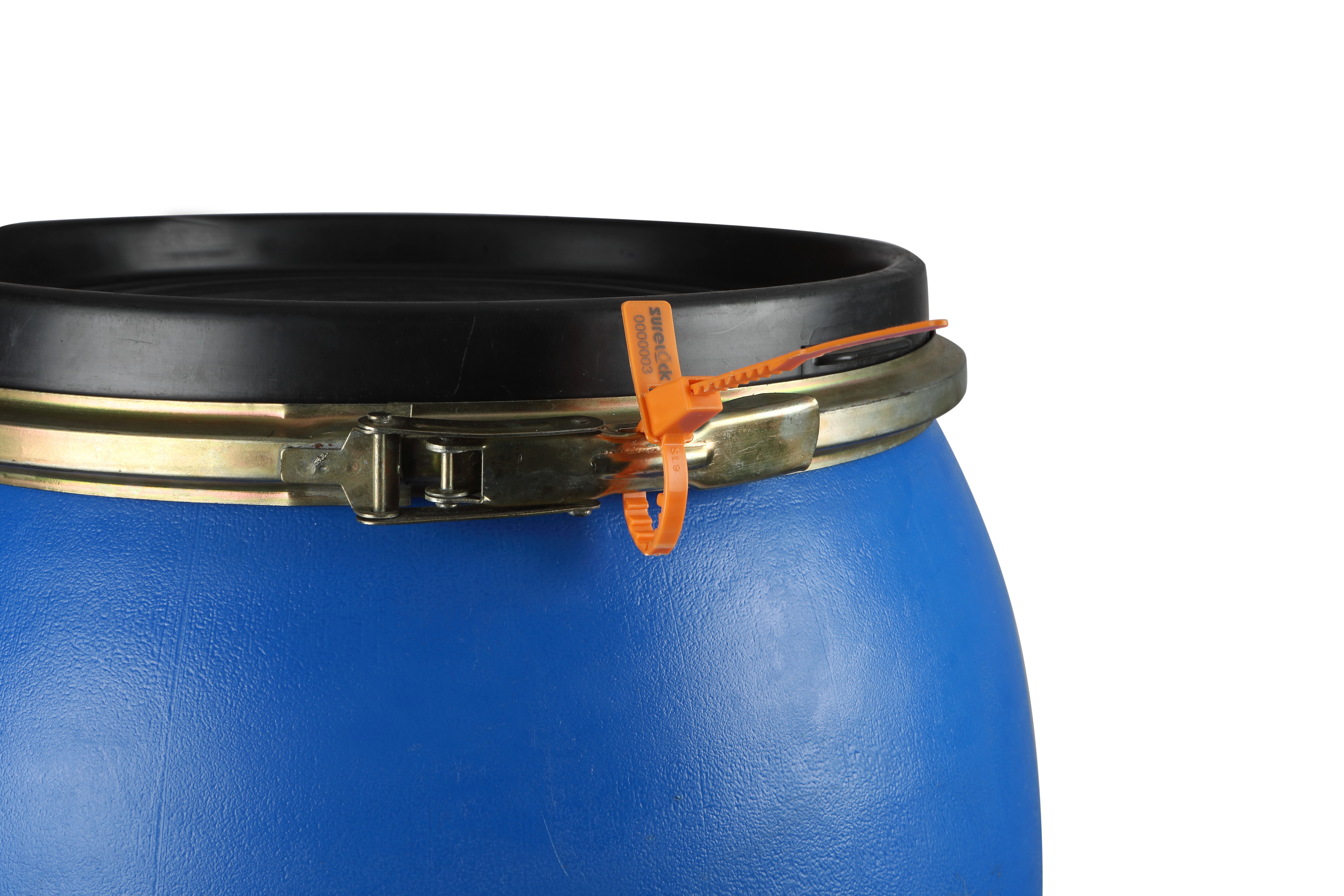

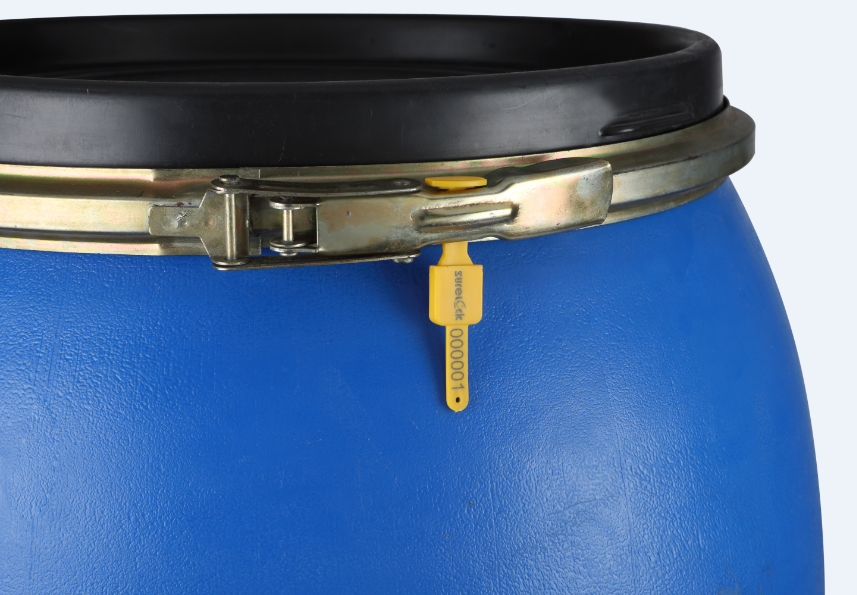

Plastic Seals for Fiber Drums, HDPE Drums, Open Mouth Drums Etc

Key Industries:

Drum Seal Manufacturer

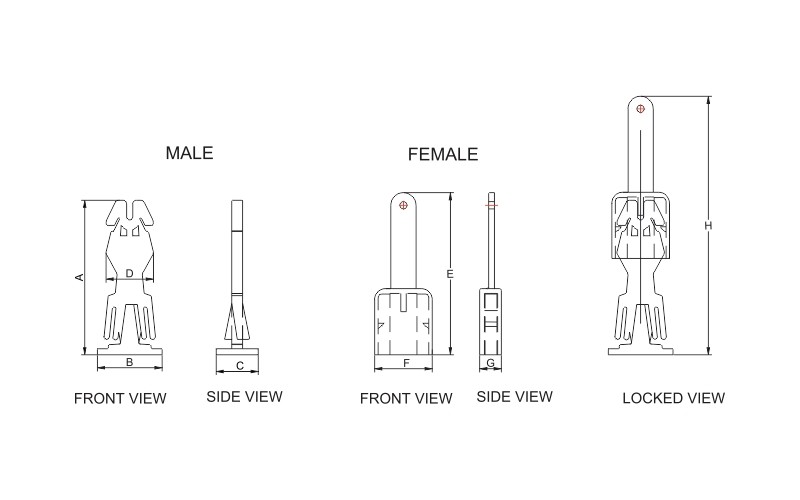

Drum Seal Manufacturer Line Drawing - Drum Seal Male/Female Surelock Logo

Material: PPCP
Color: Red, Yellow, Blue, Orange, White are standard colours (Special colours can be offered)
Operating Temp: -40°C to +85°C
Unit: 100 Pcs/Pkt
* The length is designed in a way that seals fits completely inside gap between metal ring after locking of ring closure
* Individually numbered and laser print with company name and logo
Size A (mm) B (mm) C (mm) D (mm) E (mm) F (mm) G (mm) H (mm) I (mm) J (mm) Marking Space ( L x W ) Cat No. PDF Drawing
58 x 21 42.6 18 11.40 13.2 2.85 44.8 16 5.9 24.47 71 10 x 12 / 15 x 4
SSDMF-4318P
