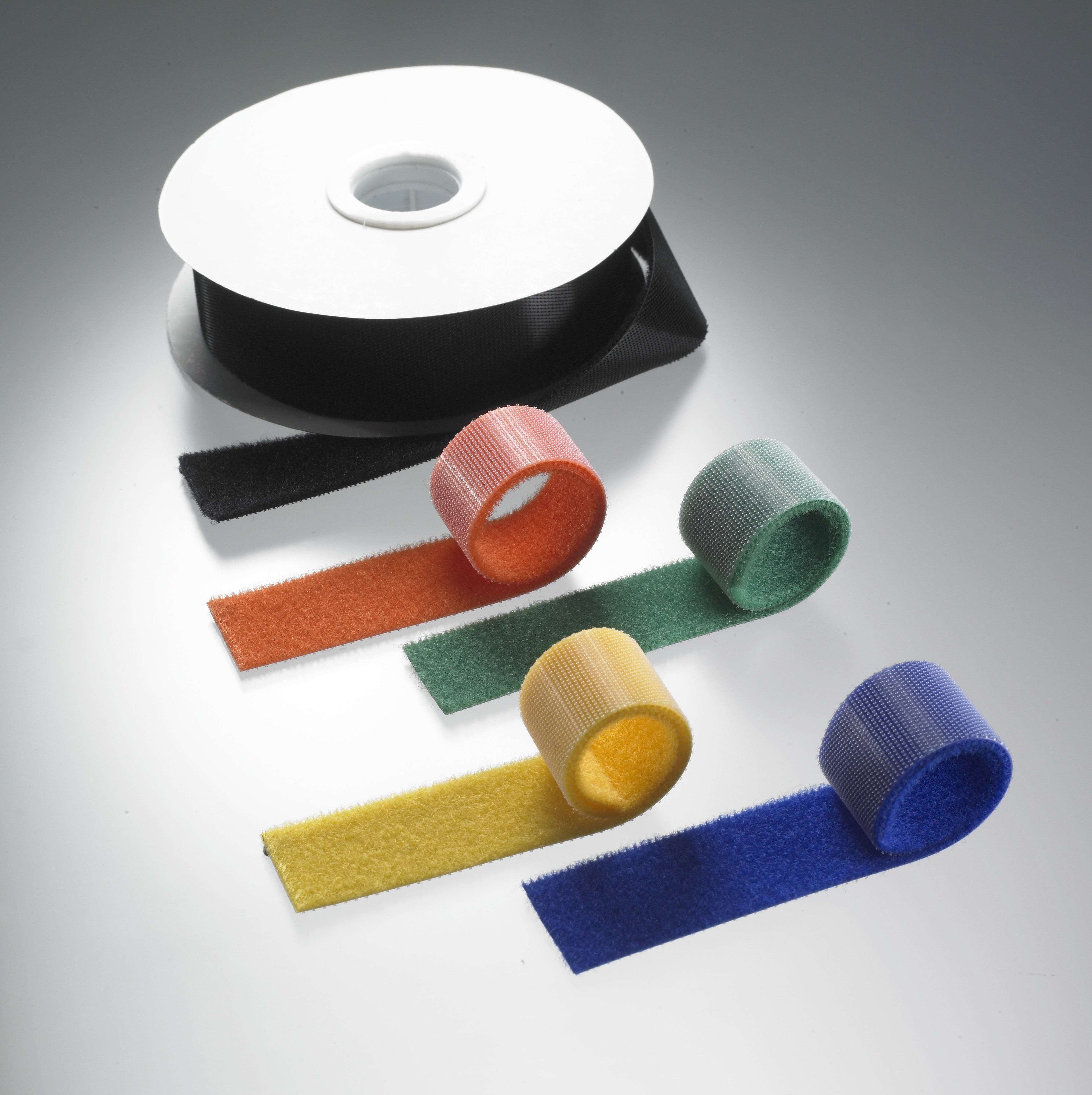

HOOK 'N' LOOP WRAP STRAP (BACK TO BACK)

Applications

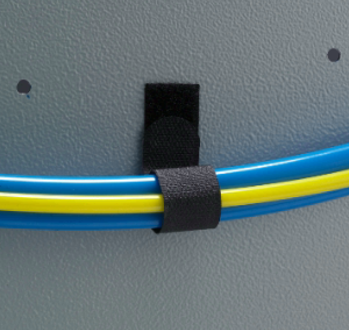

For sensitive cable bunching which doesn't require industrial strength

Key Industries:

Hook & Loop Wrap Strap Tie back to back
Hook & Loop Wrap Strap Tie back to back Hook & Loop Wrap Strap back to back tie Back to Back Hook & Loop Wrap Strap

Material: Hook: Nylon - 66 (PA-66) monofilaments woven
Material: Loop: Nylon - 6 (PA-6) multifilaments woven
Flammablity Rating: UL 94 HB
Colour: Black (std. colour)  other colors against order
Operating Temp.: -20⁰C to +85⁰C
Peel off Strength: 25N/cm (initial). 2.12N/cm (After 5000 Cycles)
Shear Strength: 10N/cm (initial). 7.5N/cm (After 5000 Cycles)
Packing: 5 Mtrs./ Roll

Tolerance:
Width: ±0.5mm

Our economical design features a quick & easy bundling of cables & wires



Length (mtrs.) Width (mm) Tensile Strength Kgs (lbs) Std. Colour Cat No. PDF Drawing
5 16 19 (42) Black
HLWS-16
5 20 22 (49) Black
HLWS-20
5 25 25 (55) Black
HLWS-25
