SS BAND EHD UNCOATED

Applications

* Cable bundling application for higher tensile load and high vibration. * For various size of cable diameter

Key Industries:

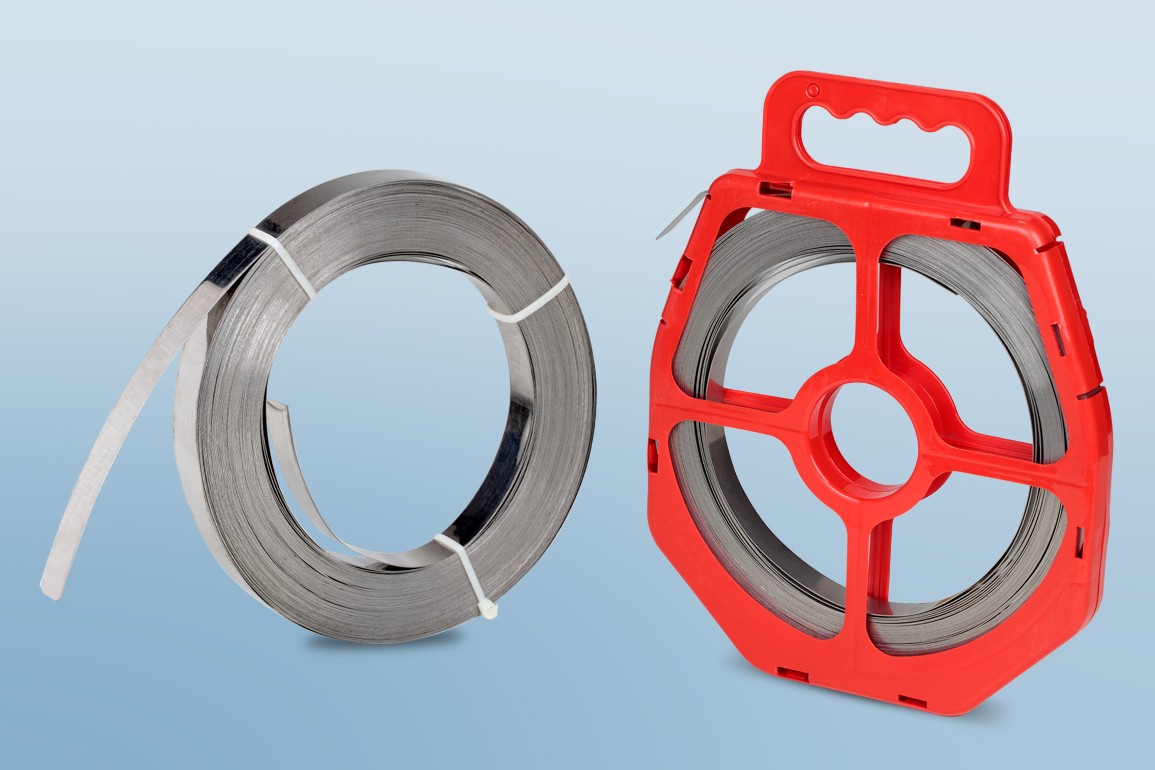

Uncoated SS Band EHD

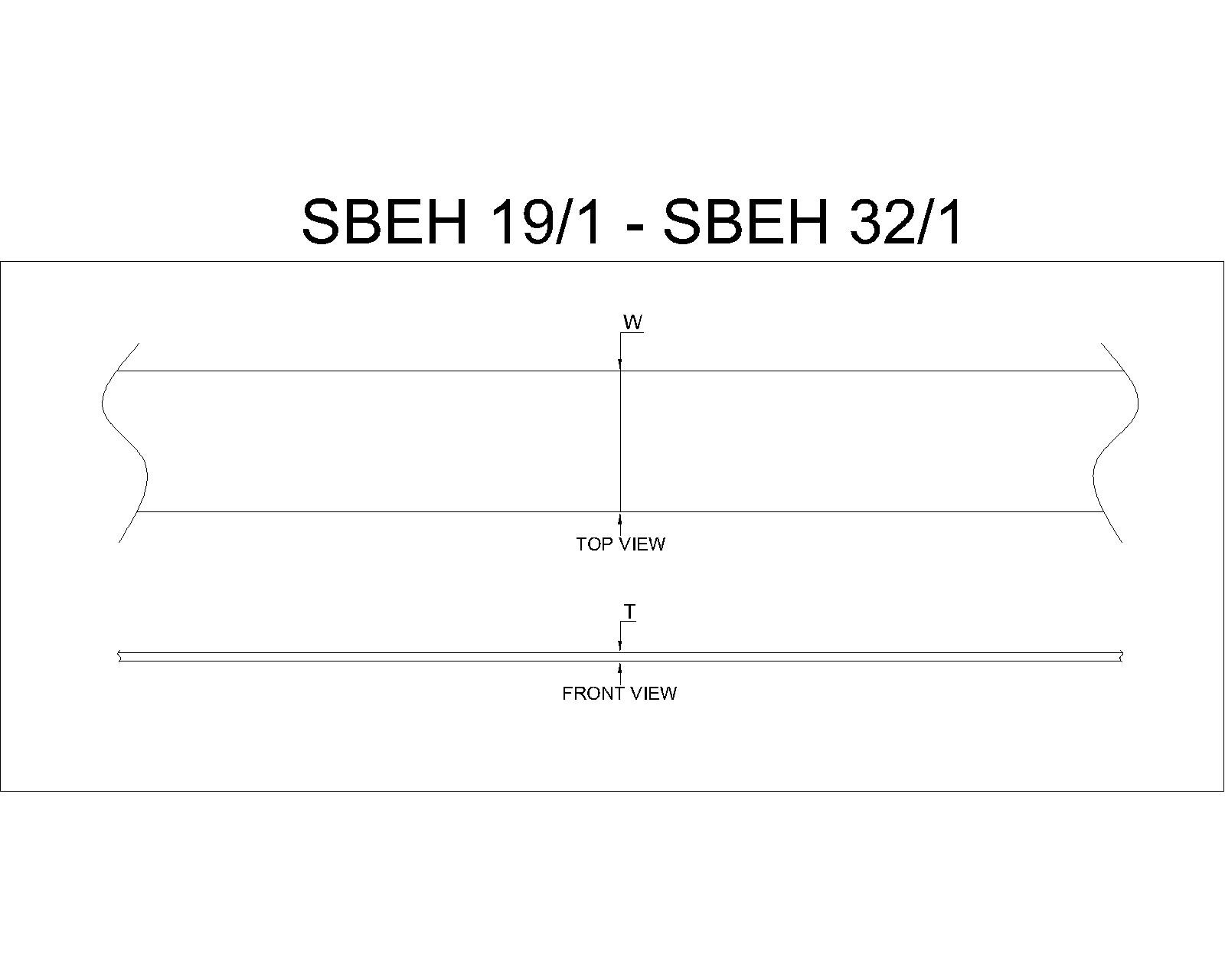

Uncoated SS Band EHD Line Drawing - SS Band EHD Uncoated SS Band EHD Uncoated

Material: SS 201, SS 316, SS 304
Installation: By tool cat. no. TB-1
Test Certificate:
Packing: 30.5 Mtrs (100 Ft.)/Roll in box
* Provides higher tensile strength
* Ideal for use in high vibration application

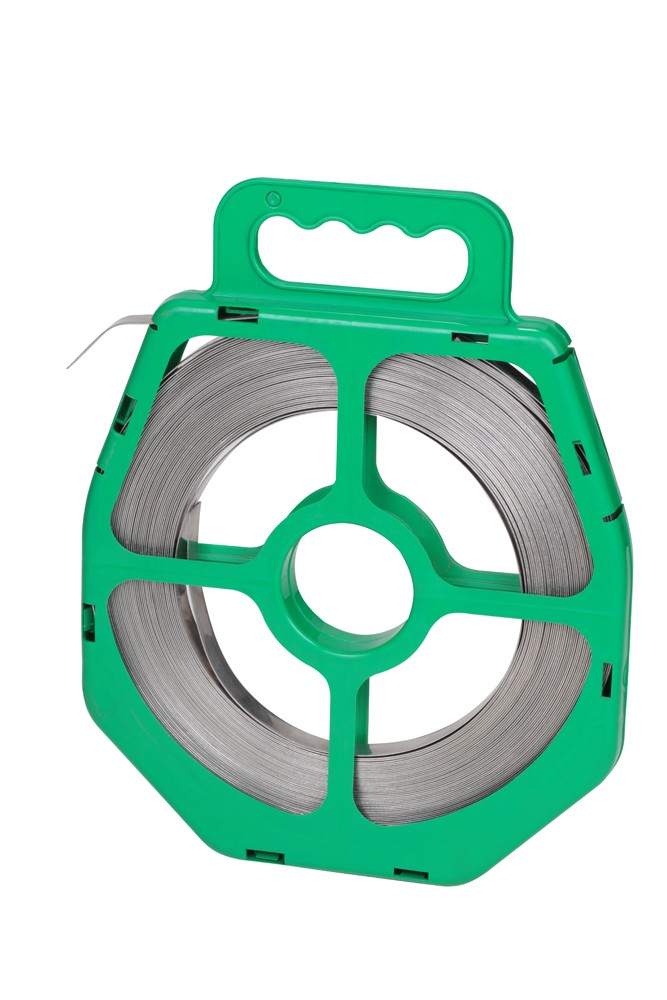

* Available in cardboard box as well as in plastic totes for easy to carry & use
* Smooth edges of band provide utmost safety while installation
Width (Inches) Width (mm) Thickness (Inches) Thickness (mm) SS Grade Tensile Strength (Kgs.) Tensile Strength (Lbs.) Used with Buckle Package Qty. per Box G.wt. / Std. Pkg. (Kgs.) G.wt. / Std. Pkg. (Lbs.) Cat No. PDF Drawing
3/4 19.0 0.044 1.12 SS 201 1495 3296 SBB-19 30.5 Mtrs (100 Ft.) 5.3 11.6
SBEH-19/1
1 25.4 0.044 1.12 SS 201 1993 4394 SBB-25 30.5 Mtrs (100 Ft.) 6.2 13.7
SBEH-25/1
1 1/4 31.8 0.044 1.12 SS 201 2492 5494 SBB-32 30.5 Mtrs (100 Ft.) 7.8 17.2
SBEH-32/1
