SS BAND FIXED LENGTH UNCOATED

Applications

Clamps hose, poles, pipes, cables etc.

Key Industries:

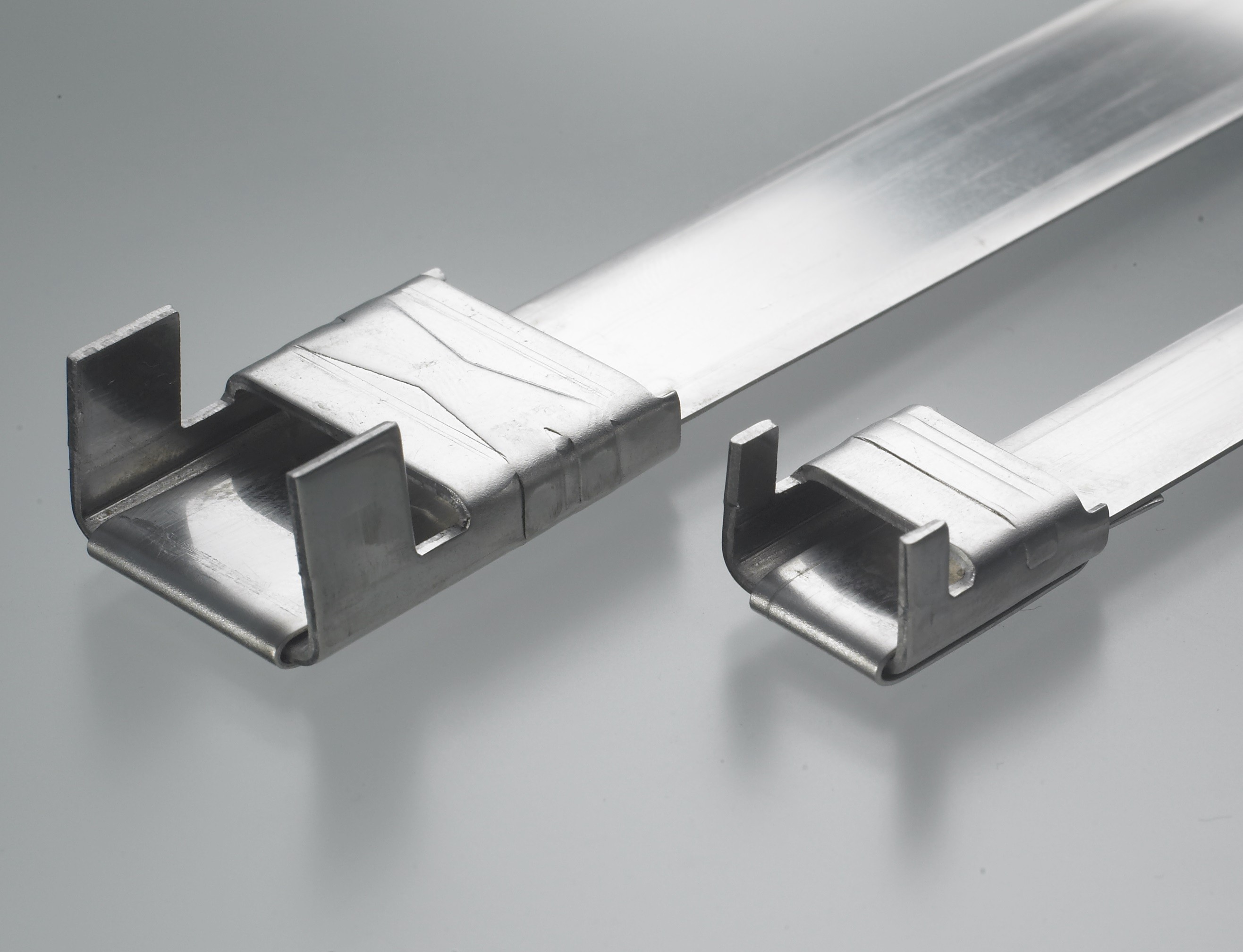

Uncoated SS Band Fixed Length

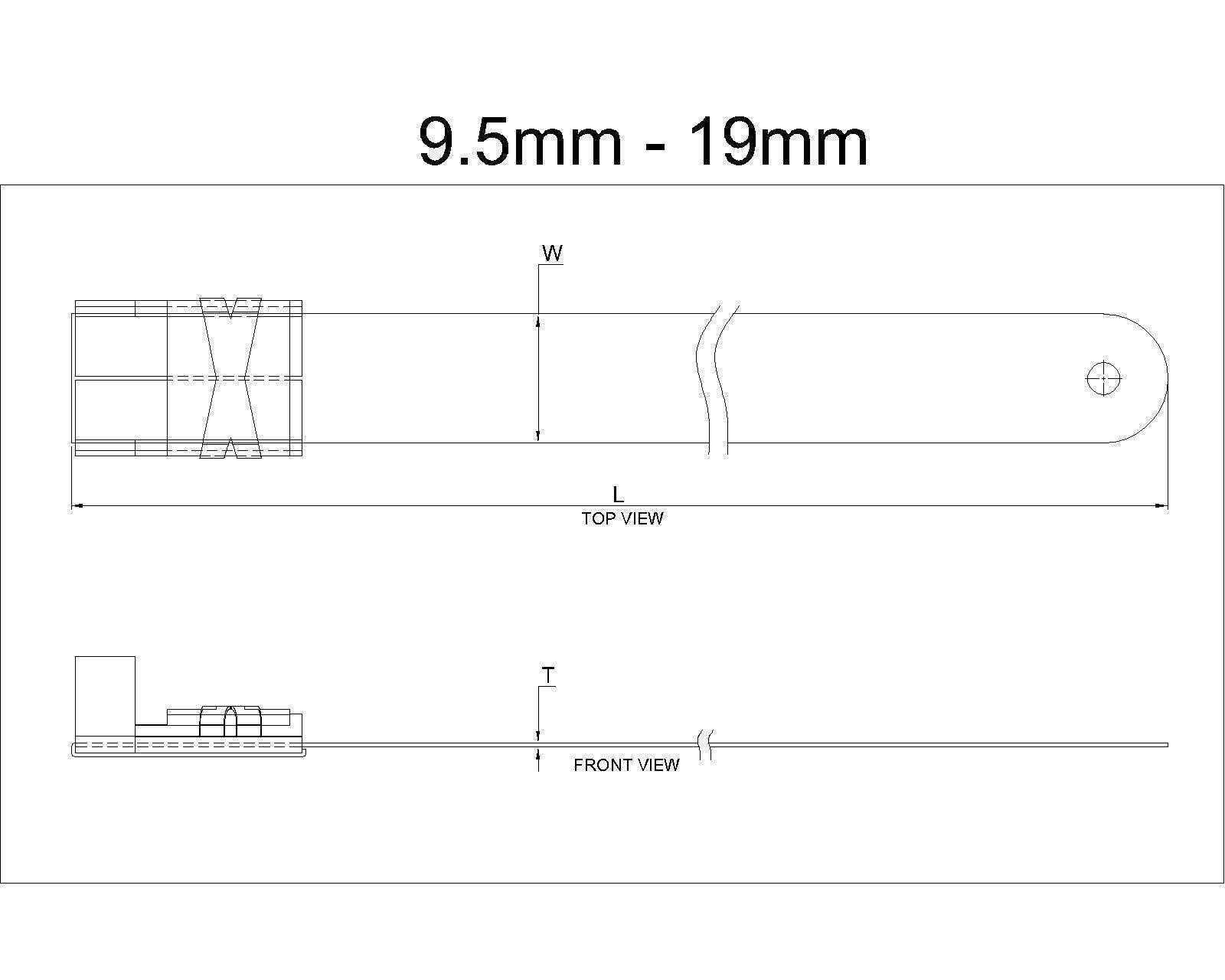

Uncoated SS Band Fixed Length Line Drawing - SS Band Fixed Length Uncoated SS Band Fixed Length Uncoated

Material: SS 316
Operating Temp: -80°C to +538°C
Packing: 50 Pcs. box
* Provides higher tensile strength
* Ideal for use in high vibration application
* Available in cardboard box as well as in plastic totes for easy to carry & use
* Smooth edges of band provide utmost safety while installation
Length (Inches) Length (mm) Width (Inches) Width (mm) Thickness (Inches) Thickness (mm) SS Grade Maximum Bundle Dia (Inches) Maximum Bundle Dia (mm) Tensile Strength (Kgs.) Tensile Strength (Lbs.) Package Qty. per Box G.W/ Std. Pkg. (100 Pcs.) for Coated Bands Fixed Length (Kgs.) G.W/ Std. Pkg. (100 Pcs.) for Coated Bands Fixed Length (Lbs.) Cat No. PDF Drawing
12 305 1/2 12.7 0.015 0.38 SS 201 2.55 65 311 686 50 Pcs. 1.00 2.20
SBF-12300CP/1
15 3/4 400 1/2 12.7 0.015 0.38 SS 201 3.5 89 311 686 50 Pcs. 1.21 2.66
SBF-12400CP/1
19 1/2 495 1/2 12.7 0.015 0.38 SS 201 5.3 135 311 686 50 Pcs. 1.42 3.13
SBF-12500CP/1
25 1/2 648 1/2 12.7 0.015 0.38 SS 316 6.5 165 311 686 50 Pcs. 1.75 3.85
SBF-12650CP
25 1/2 648 1/2 12.7 0.015 0.38 SS 201 6.5 165 311 686 50 Pcs. 1.75 3.85
SBF-12650CP/1
33 1/2 851 1/2 12.7 0.015 0.38 SS 201 8.6 218 311 686 50 Pcs. 2.17 4.78
SBF-12850CP/1
41 1041 1/2 12.7 0.015 0.38 SS 201 11.8 300 311 686 50 Pcs. 2.60 5.73
SBF-121050CP/1
12 305 5/8 15.9 0.015 0.38 SS 316 2.55 65 340 750 50 Pcs. 1.32 2.91
SBF-15300CP
12 305 5/8 15.9 0.015 0.38 SS 201 2.55 65 340 750 50 Pcs. 1.32 2.91
SBF-15300CP/1
15 3/4 400 5/8 15.9 0.015 0.38 SS 316 3.5 89 340 750 50 Pcs. 1.58 3.48
SBF-15400CP
15 3/4 400 5/8 15.9 0.015 0.38 SS 201 3.5 89 340 750 50 Pcs. 1.58 3.48
SBF-15400CP/1
19 1/2 495 5/8 15.9 0.015 0.38 SS 316 5.3 135 340 750 50 Pcs. 1.85 4.07
SBF-15500CP
19 1/2 495 5/8 15.9 0.015 0.38 SS 201 5.3 135 340 750 50 Pcs. 1.85 4.07
SBF-15500CP/1
25 1/2 648 5/8 15.9 0.015 0.38 SS 316 6.5 165 340 750 50 Pcs. 2.25 4.96
SBF-15650CP
25 1/2 648 5/8 15.9 0.015 0.38 SS 201 6.5 165 340 750 50 Pcs. 2.25 4.96
SBF-15650CP/1
33 1/2 851 5/8 15.9 0.015 0.38 SS 316 8.6 218 340 750 50 Pcs. 2.78 6.13
SBF-15850CP
331/2 851 5/8 15.9 0.015 0.38 SS 201 8.6 218 340 750 50 Pcs. 2.78 6.13
SBF-15850CP/1
41 1041 5/8 15.9 0.015 0.38 SS 316 11.8 300 340 750 50 Pcs. 3.32 7.32
SBF-151050CP
41 1041 5/8 15.9 0.015 0.38 SS 201 11.8 300 340 750 50 Pcs. 3.32 7.32
SBF-151050CP/1
12 305 3/4 19.0 0.015 0.38 SS 201 2.55 65 408 900 25 Pcs. 1.43 3.15
SBF-19300CP/1
15 3/4 400 3/4 19.0 0.015 0.38 SS 201 3.5 89 408 900 25 Pcs. 1.75 3.85
SBF-19400CP/1
19 1/2 495 3/4 19.0 0.015 0.38 SS 201 5.3 135 408 900 25 Pcs. 2.07 4.56
SBF-19500CP/1
25 1/2 648 3/4 19.0 0.015 0.38 SS 201 6.5 165 408 900 25 Pcs. 2.54 5.60
SBF-19650CP/1
33 1/2 851 3/4 19.0 0.015 0.38 SS 201 8.6 218 408 900 25 Pcs. 3.18 7.01
SBF-19850CP/1
41 1041 3/4 19.0 0.015 0.38 SS 201 11.8 300 408 900 25 Pcs. 3.82 8.42
SBF-191050CP/1
