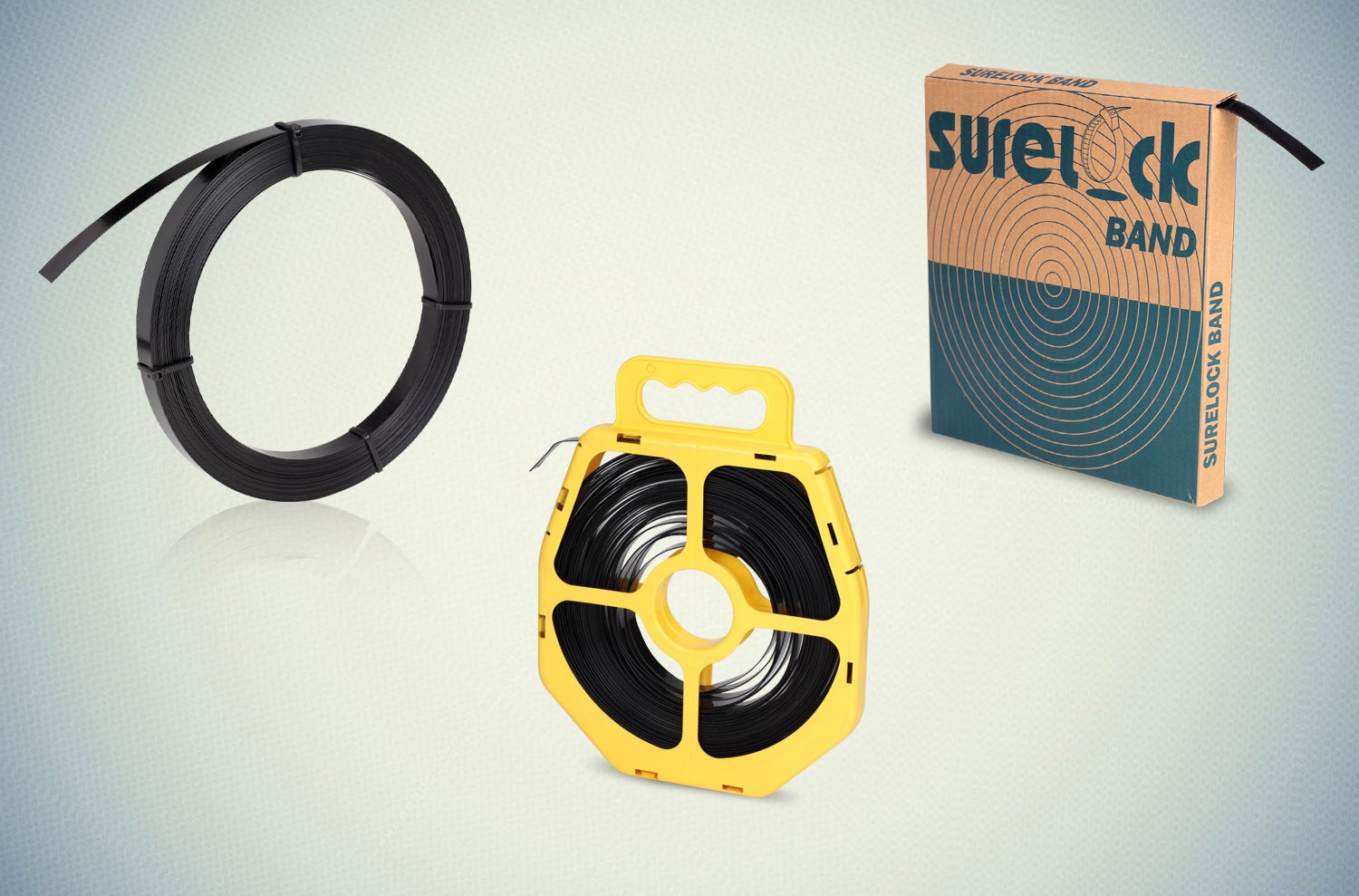

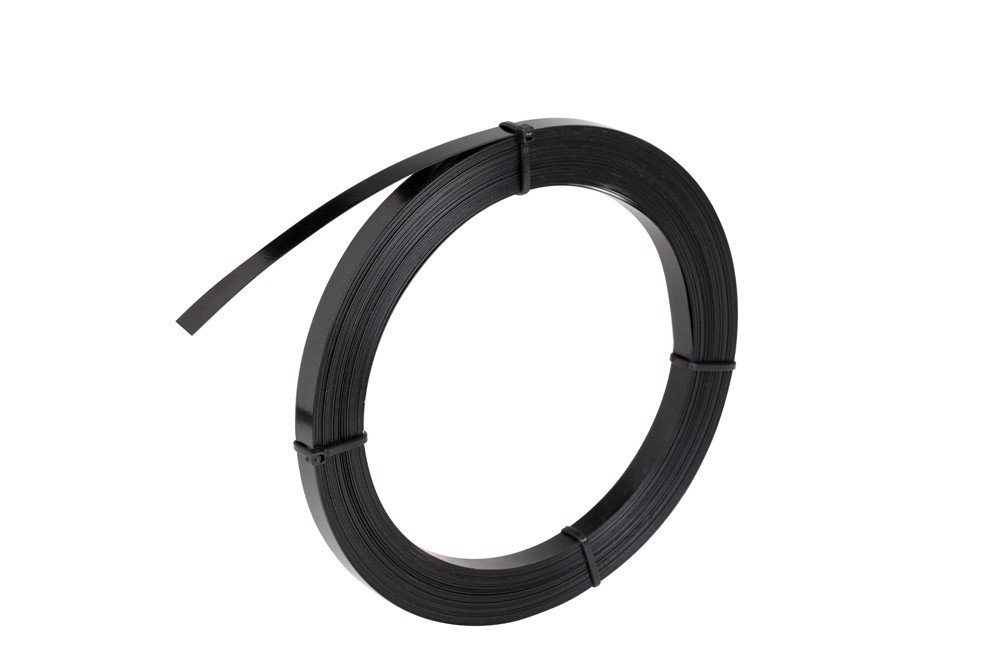

SS BAND LD COATED

Applications

* Cable bundling application for higher tensile load and high vibration * For various size of cable diameter requirement

Key Industries:

Coated SS Band LD

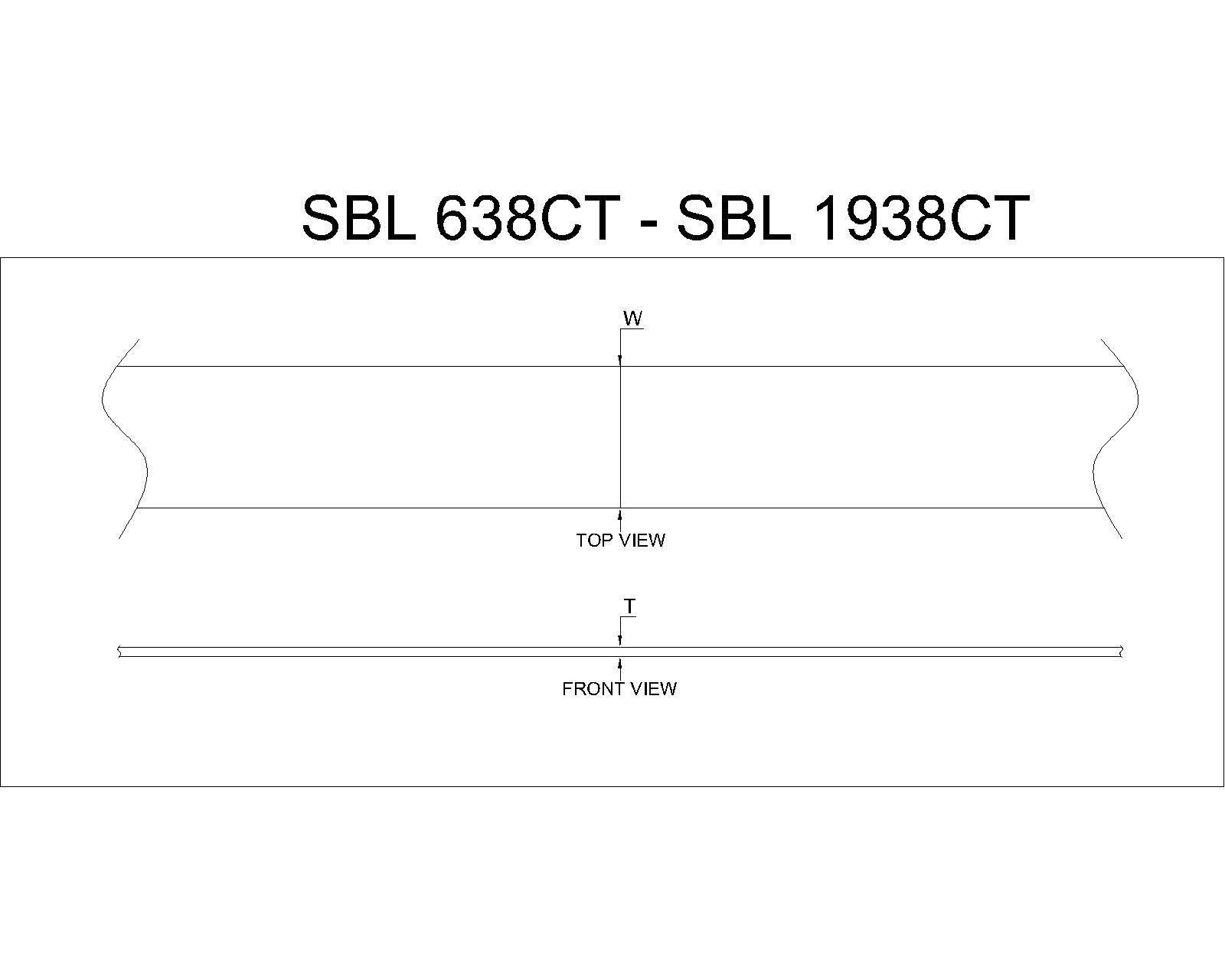

Coated SS Band LD Line Drawing - SS Band LD Coated SS Band LD Coated

Material: SS 316, SS 304, SS 201
Coating: Black PPA - Thermoplastic or Polyester
Installation: By tool cat. no. TB-1
Test Certificate:
Packing: 25 Mtrs (82.5 Ft.)/Roll in box
* Coated band provides long term life in corrosive climate condition
* Provides higher tensile strength
* Ideal for use in high vibration application
* Available in cardboard box as well as in plastic totes for easy to carry & use.
* Smooth edges of band provide utmost safety while installation
* Coating material is non-toxic, halogen free, low smoke and UV resistant
Width (Inches) Width (mm) Thickness (Inches) Thickness (mm) SS Grade Tensile Strength (Kgs.) Tensile Strength (Lbs.) Used with Clip Package Qty. per Box G.wt. / Std. Pkg. (Kgs.) G.wt. / Std. Pkg. (Lbs.) Cat No. PDF Drawing
1/4 6.3 0.048 1.22 SS 316 152 335 SBC-6 25 Mtrs (82.5 Ft.) 0.9 2.0
SBL-638CT
3/8 9.5 0.048 1.22 SS 316 228 503 SBC-9 25 Mtrs (82.5 Ft.) 1.2 2.6
SBL-938CT
1/2 12.7 0.048 1.22 SS 316 303 668 SBC-12 25 Mtrs (82.5 Ft.) 1.6 3.5
SBL-1238CT
5/8 15.9 0.048 1.22 SS 316 380 838 SBC-15 25 Mtrs (82.5 Ft.) 2.0 4.4
SBL-1538CT
3/4 19.0 0.048 1.22 SS 316 453 999 SBC-19 25 Mtrs (82.5 Ft.) 2.4 5.3
SBL-1938CT
