SS BAND LD UNCOATED

Applications

* Cable bundling application for higher tensile load and high vibration . * For various size of cable diameter requirement

Key Industries:

LD SS Band Uncoated

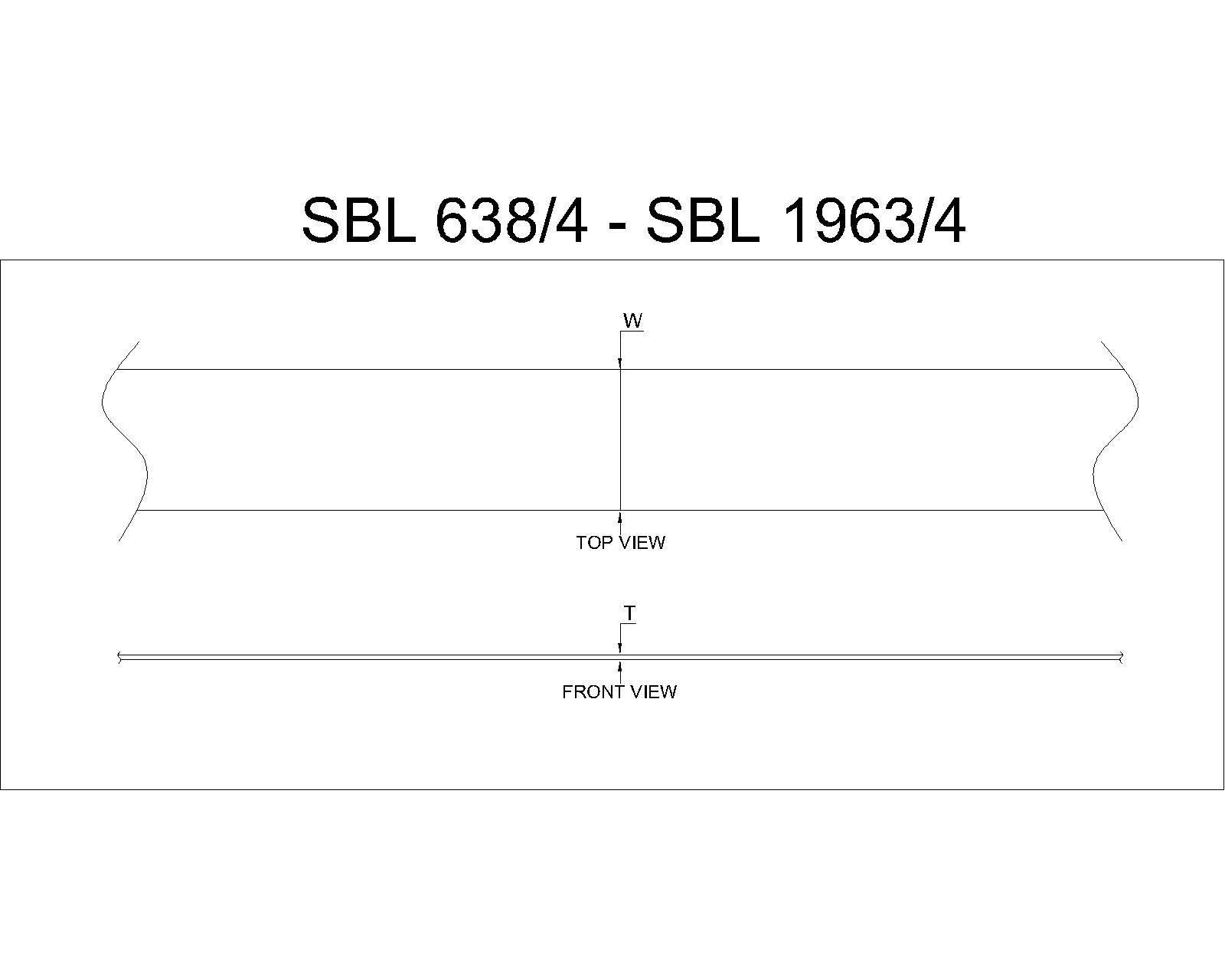

LD SS Band Uncoated Line Drawing - SS Band LD Uncoated SS Band LD Uncoated

Material: SS 316, SS 304, SS 201
Installation: By tool cat. no. TB-1
Test Certificate:
Packing: 30.5 Mtrs (100 Ft.)/Roll in box
* Provides higher tensile strength
* Ideal for use in high vibration application

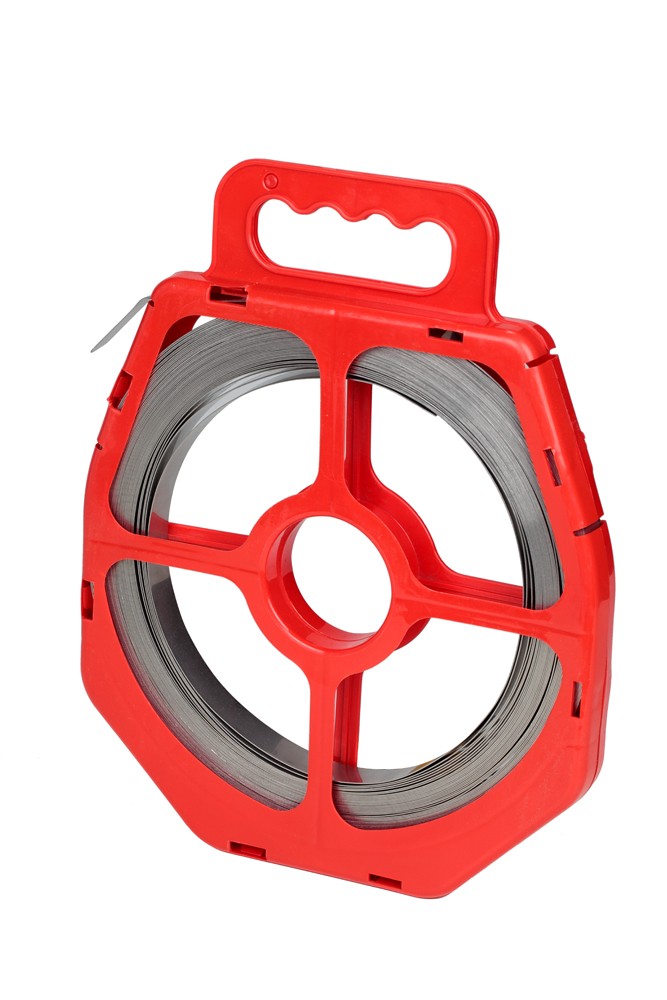

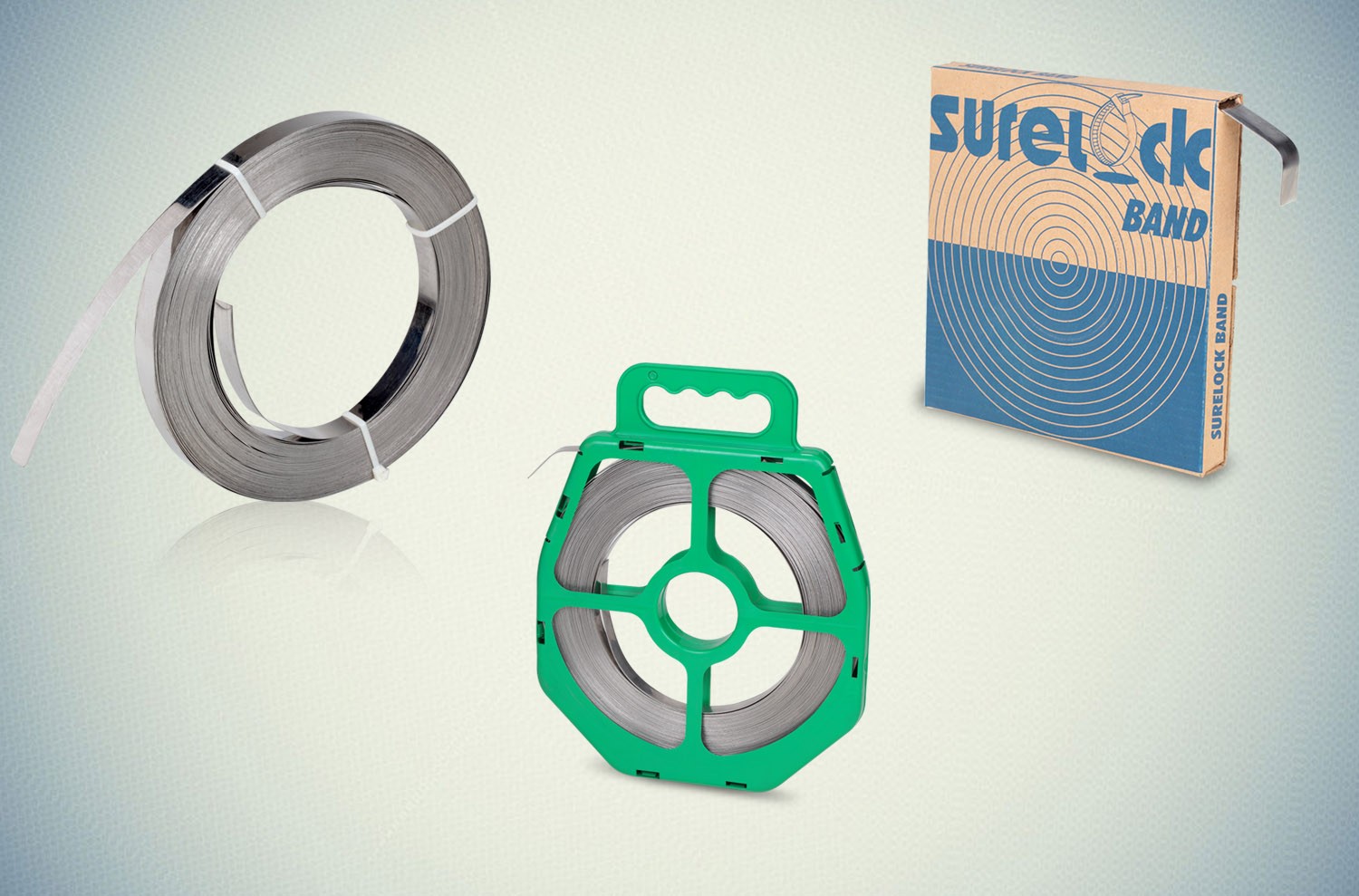

* Available in cardboard box as well as in plastic totes for easy to carry & use.
* Smooth edges of band provide utmost safety while installation
Width (Inches) Width (mm) Thickness (Inches) Thickness (mm) SS Grade Tensile Strength (Kgs.) Tensile Strength (Lbs.) Used with Buckle / Clip Package Qty. per Box G.wt. / Std. Pkg. (Kgs.) G.wt. / Std. Pkg. (Lbs.) Cat No. PDF Drawing
3/8 9.5 0.015 0.38 SS 316 204 450 SBB-9, SBC-9 30.5 Mtrs (100 Ft.) 1.00 2.2
SBL-938
3/8 9.5 0.015 0.38 SS 304 204 450 SBB-9, SBC-9 30.5 Mtrs (100 Ft.) 1.00 2.2
SBL-938/4
3/8 9.5 0.020 0.51 SS 316 272 600 SBB-9, SBC-9 30.5 Mtrs (100 Ft.) 1.20 2.8
SBL-951
3/8 9.5 0.020 0.51 SS 304 272 600 SBB-9, SBC-9 30.5 Mtrs (100 Ft.) 1.20 2.8
SBL-951/4
1/2 12.7 0.015 0.38 SS 316 272 600 SBB-12, SBC-12 30.5 Mtrs (100 Ft.) 1.30 2.9
SBL-1238
1/2 12.7 0.015 0.38 SS 304 272 600 SBB-12, SBC-12 30.5 Mtrs (100 Ft.) 1.30 2.9
SBL-1238/4
1/2 12.7 0.020 0.51 SS 316 385 849 SBB-12, SBC-12 30.5 Mtrs (100 Ft.) 1.70 3.8
SBL-1251
1/2 12.7 0.020 0.51 SS 304 385 849 SBB-12, SBC-12 30.5 Mtrs (100 Ft.) 1.70 3.8
SBL-1251/4
1/2 12.7 0.025 0.63 SS 316 453 999 SBB-12, SBC-12 30.5 Mtrs (100 Ft.) 2.10 4.6
SBL-1263
1/2 12.7 0.025 0.63 SS 304 453 999 SBB-12, SBC-12 30.5 Mtrs (100 Ft.) 2.10 4.6
SBL-1263/4
5/8 15.9 0.015 0.38 SS 316 340 750 SBB-15, SBC-15 30.5 Mtrs (100 Ft.) 1.60 3.6
SBL-1538
5/8 15.9 0.015 0.38 SS 304 340 750 SBB-15, SBC-15 30.5 Mtrs (100 Ft.) 1.60 3.6
SBL-1538/4
5/8 15.9 0.020 0.51 SS 316 453 999 SBB-15, SBC-15 30.5 Mtrs (100 Ft.) 2.20 4.8
SBL-1551
5/8 15.9 0.020 0.51 SS 304 453 999 SBB-15, SBC-15 30.5 Mtrs (100 Ft.) 2.20 4.8
SBL-1551/4
5/8 15.9 0.025 0.63 SS 316 566 1248 SBB-15, SBC-15 30.5 Mtrs (100 Ft.) 2.60 5.6
SBL-1563
5/8 15.9 0.025 0.63 SS 304 566 1248 SBB-15, SBC-15 30.5 Mtrs (100 Ft.) 2.60 5.6
SBL-1563/4
3/4 19.0 0.015 0.38 SS 316 408 899 SBB-19, SBC-19 30.5 Mtrs (100 Ft.) 2.00 4.4
SBL-1938
3/4 19.0 0.015 0.38 SS 304 408 899 SBB-19, SBC-19 30.5 Mtrs (100 Ft.) 2.00 4.4
SBL-1938/4
3/4 19.0 0.020 0.51 SS 316 577 1272 SBB-19, SBC-19 30.5 Mtrs (100 Ft.) 2.60 5.7
SBL-1951
3/4 19.0 0.020 0.51 SS 304 577 1272 SBB-19, SBC-19 30.5 Mtrs (100 Ft.) 2.60 5.7
SBL-1951/4
3/4 19.0 0.025 0.63 SS 316 720 1587 SBB-19, SBC-19 30.5 Mtrs (100 Ft.) 3.10 6.8
SBL-1963
3/4 19.0 0.025 0.63 SS 304 720 1587 SBB-19, SBC-19 30.5 Mtrs (100 Ft.) 3.10 6.8
SBL-1963/4
