SS BUCKLE HD FOR SS BAND UNCOATED

Applications

-

Key Industries:

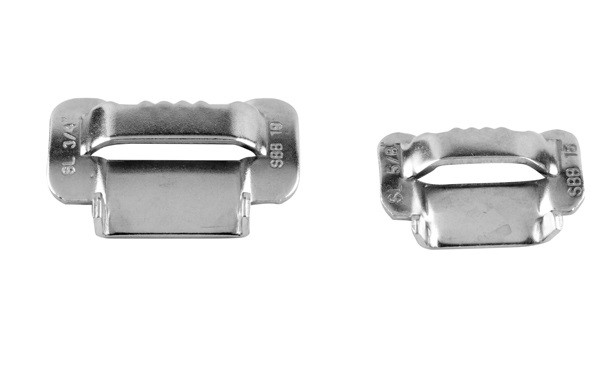

SS Buckle HD

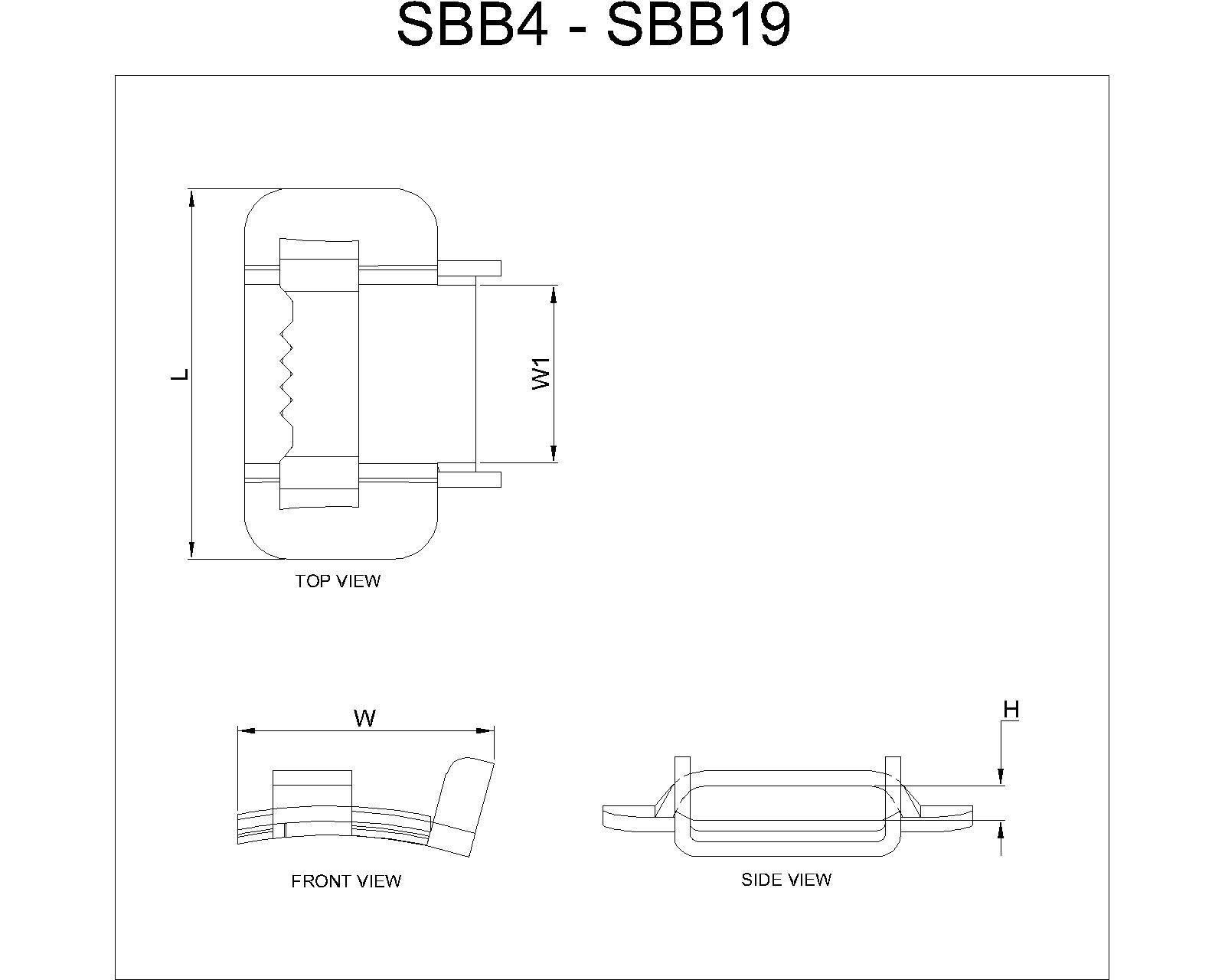

SS Buckle HD Line Drawing - Buckle HD for SS band uncoated SS Buckle HD for SS band uncoated

Material: SS 316, SS 304, SS 201

Packing: 100 Pcs. bag

* Designed to accommodate both single & double wrapping of bands
* The teeth & ears provided for max. clamping strength over heavy duty stainless steel bands
Suitable for Band Width (Inches) Suitable for Band Width (mm) L Length (mm) W Width (mm) W1 Slot Width (mm) H Slot Height (mm) SS Grade Package Qty. per Box G.wt. Std. Pkg. (100 Pcs.) (Kgs.) G.wt. Std. Pkg. (100 Pcs.) (Lbs.) Cat No. PDF Drawing
3/16 4.8 13.79 9.89 6.40 1.76 SS 316 100 Pcs. 0.15 0.33
SBB-4
3/16 4.8 13.79 9.89 6.40 1.76 SS 201 100 Pcs. 0.15 0.33
SBB-4/1
1/4 6.3 16.10 12.85 8.47 2.46 SS 316 100 Pcs. 0.23 0.50
SBB-6
1/4 6.3 16.10 12.85 8.47 2.46 SS 201 100 Pcs. 0.23 0.50
SBB-6/1
3/8 9.5 23.28 15.82 12.77 3.72 SS 316 100 Pcs. 0.84 1.85
SBB-9
3/8 9.5 23.28 15.82 12.77 3.72 SS 201 100 Pcs. 0.84 1.85
SBB-9/1
1/2 12.7 32.17 22.03 16.03 3.99 SS 316 100 Pcs. 1.03 2.26
SBB-12
1/2 12.7 32.17 22.03 16.03 3.99 SS 201 100 Pcs. 1.03 2.26
SBB-12/1
5/8 15.9 34.50 24.36 19.07 3.98 SS 316 100 Pcs. 1.17 2.57
SBB-15
5/8 15.9 34.50 24.36 19.07 3.98 SS 201 100 Pcs. 1.17 2.57
SBB-15/1
3/4 19.0 42.24 29.28 22.34 3.97 SS 316 100 Pcs. 1.28 2.82
SBB-19
3/4 19.0 42.24 29.28 22.34 3.97 SS 201 100 Pcs. 1.28 2.82
SBB-19/1
