SS BUCKLE SCREW UNCOATED

Applications

Key Industries:

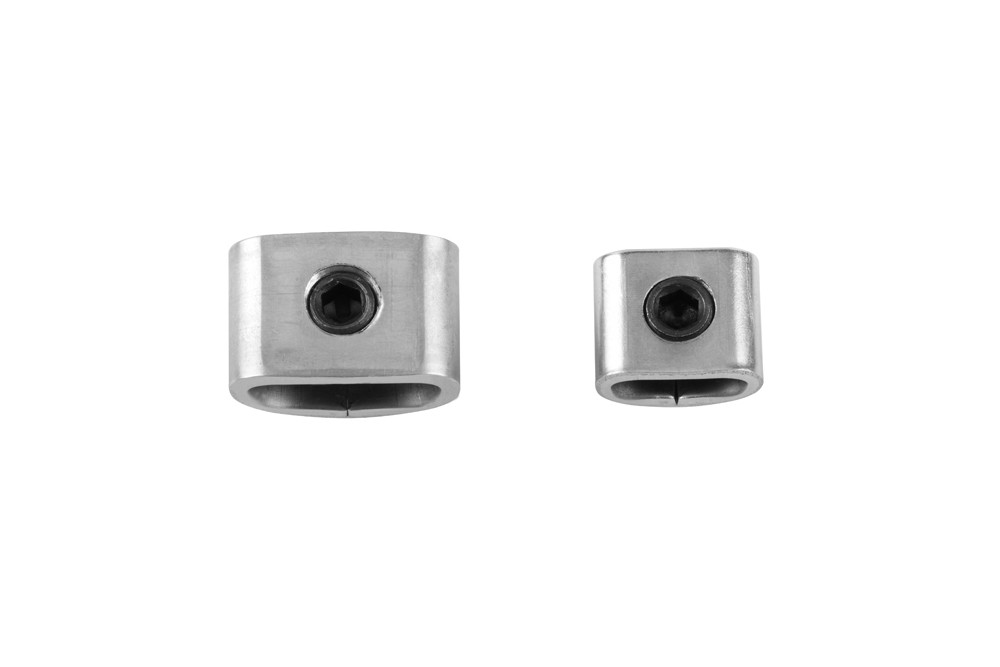

SS Buckle screw

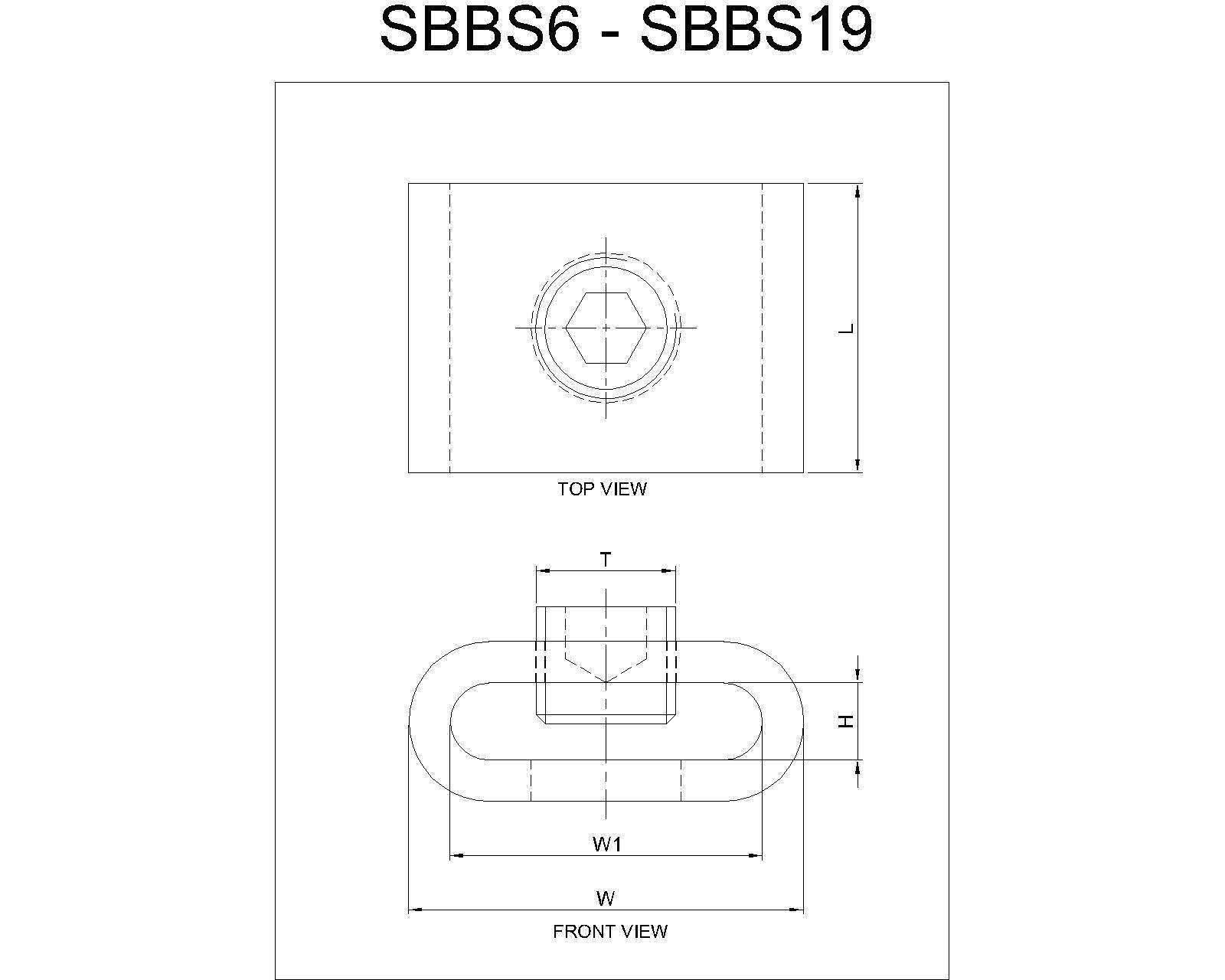

SS Buckle screw SS Buckle screw uncoated Line Drawing - Buckle screw uncoated

Material: SS316, SS304, SS 201
Packing: 100 Pcs. bag
* Buckle screws are designed for adjustable or temporary clamping
Suitable for Band Width (Inches) Suitable for Band Width (mm) L Length (mm) W Width (mm) W1 Slot Width (mm) H Slot Width (mm) SS Grade Package Qty. per Box G.wt. Std. Pkg. (100 Pcs.) (Kgs.) G.wt. Std. Pkg. (100 Pcs.) (Lbs.) Cat No. PDF Drawing
1/4 6.3 9.80 10.30 7.30 2.60 SS 316 100 Pcs. 0.27 0.60
SBBS-6
1/4 6.3 9.80 10.30 7.30 2.60 SS 304 100 Pcs. 0.27 0.60
SBBS-6/4
1/4 6.3 9.80 10.30 7.30 2.60 SS 201 100 Pcs. 0.27 0.60
SBBS-6/1
3/8 9.5 11.60 13.80 10.00 3.00 SS 316 100 Pcs. 0.48 1.06
SBBS-9
3/8 9.5 11.60 13.80 10.00 3.00 SS 304 100 Pcs. 0.48 1.06
SBBS-9/4
3/8 9.5 11.60 13.80 10.00 3.00 SS 201 100 Pcs. 0.48 1.06
SBBS-9/1
1/2 12.7 14.70 17.30 13.50 4.00 SS 316 100 Pcs. 0.88 1.93
SBBS-12
1/2 12.7 14.70 17.30 13.50 4.00 SS 304 100 Pcs. 0.88 1.93
SBBS-12/4
1/2 12.7 14.70 17.30 13.50 4.00 SS 201 100 Pcs. 0.88 1.93
SBBS-12/1
5/8 15.9 16.00 22.00 17.00 4.00 SS 316 100 Pcs. 1.38 3.04
SBBS-15
5/8 15.9 16.00 22.00 17.00 4.00 SS 304 100 Pcs. 1.38 3.04
SBBS-15/4
5/8 15.9 16.00 22.00 17.00 4.00 SS 201 100 Pcs. 1.38 3.04
SBBS-15/1
3/4 19.0 16.00 24.80 20.00 5.00 SS 316 100 Pcs. 1.59 3.50
SBBS-19
3/4 19.0 16.00 24.80 20.00 5.00 SS 304 100 Pcs. 1.59 3.50
SBBS-19/4
3/4 19.0 16.00 24.80 20.00 5.00 SS 201 100 Pcs. 1.59 3.50
SBBS-19/1
