BALL LOCK STEEL TIE PARTLY COATED

Applications

Suitable for corrosive climate condition, higher temperature and higher tensile strength requirement.

Key Industries:

Aerospace
Chemicals & Refineries
Dairy & Food Processing
Oil, Gas & Offshore
Ship & Marines
Solar
Telecom
Utility
Windmill

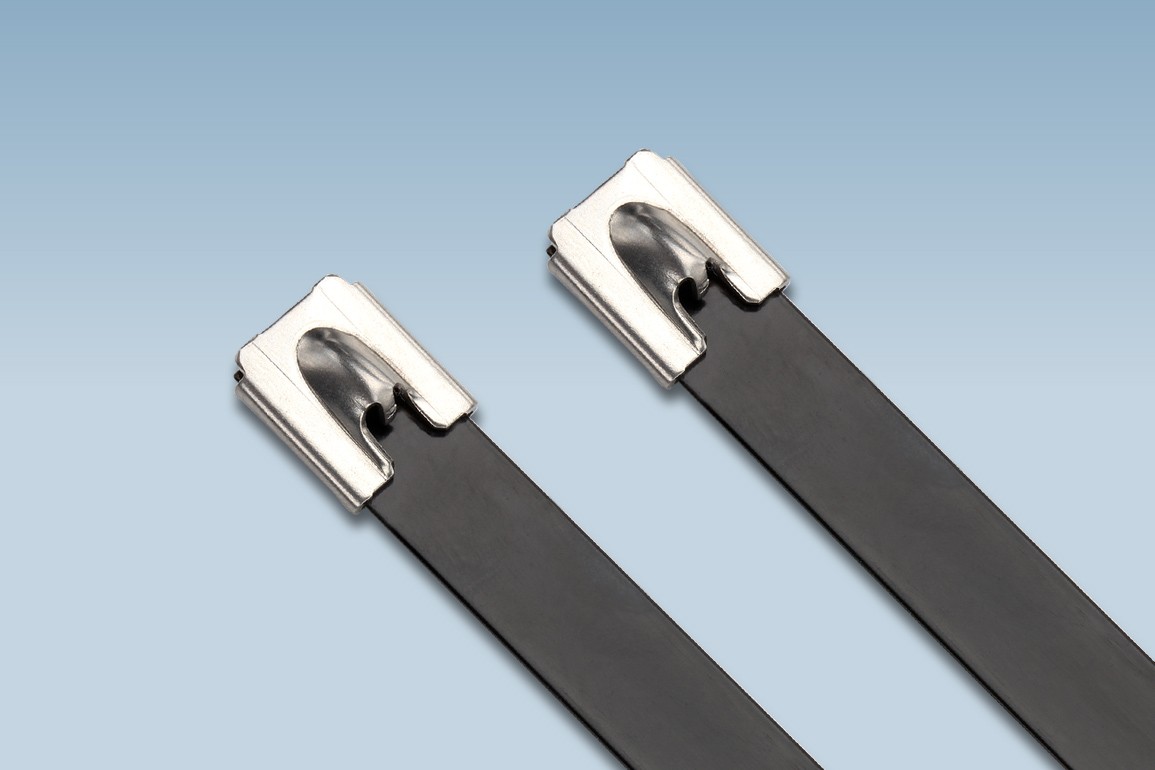

Ball Lock Steel Cable Tie Partly Coated

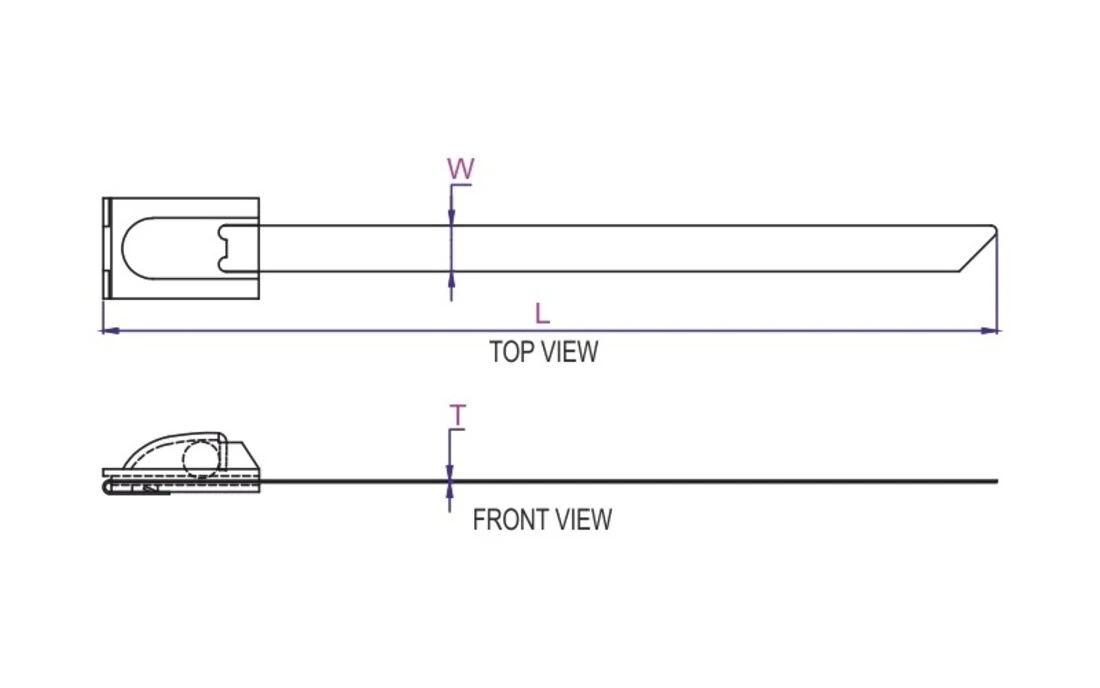

Ball Lock Steel Cable Tie Partly Coated Line Drawing - Ball Lock Steel Tie Partly Coated Ball Lock Steel Tie Partly Coated

Material: Stainless Steel SS 316, SS 304
Coating:
* Black Polyester
* Black Nylon
Operating Temperature Range: -80°C to +150°C
Installation: By hand or with the help of tool STT1, STT2, STT3
Test Certificate:
Packing: 100 pcs bag
Unit: 100 Pcs/Pkt
* Ball lock steel ties are self locking. Fast & easy to install

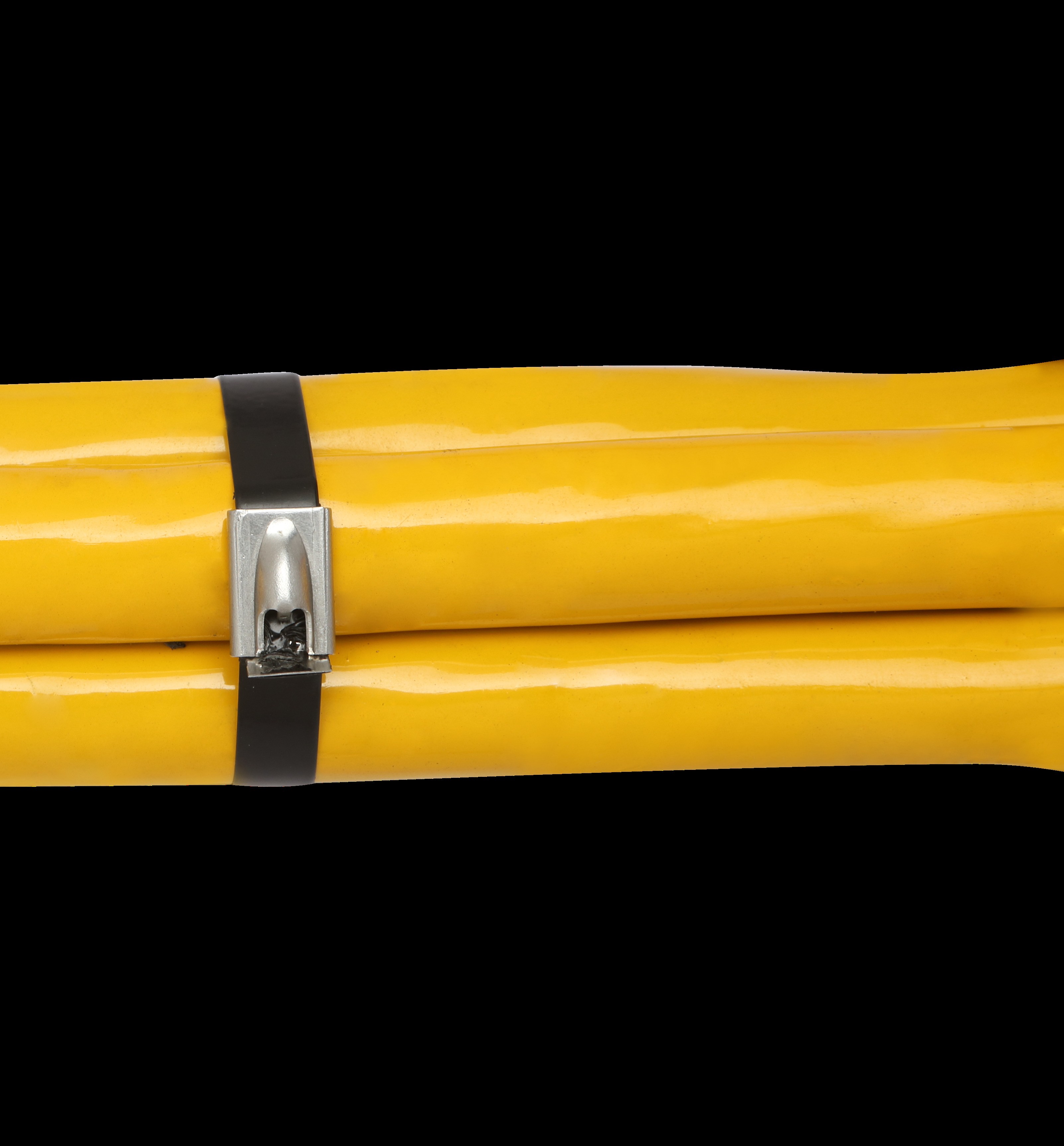

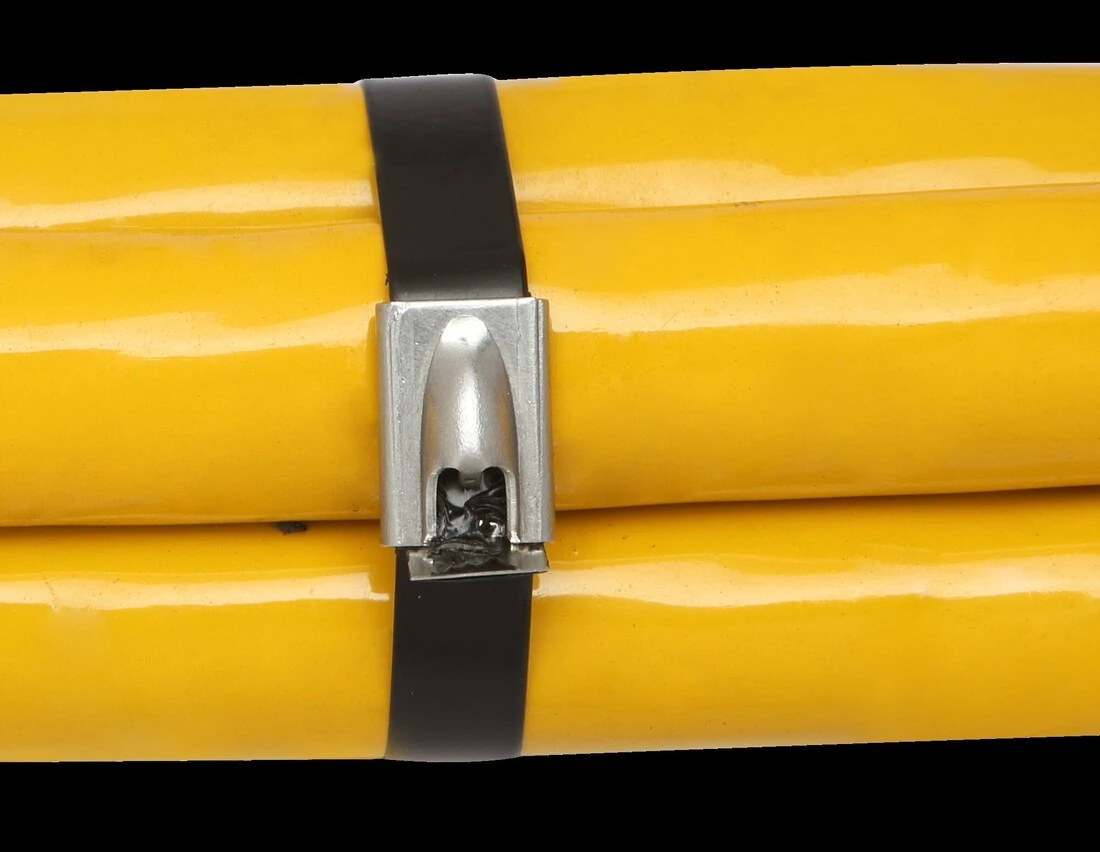

* When locked on bundles, the ball inside the angled ramp of the head provides positive locking
* Coating material is non-toxic, halogen free, low smoke and UV resistant
* Coated ties provides long term life in corrosive climate condition
Download Brochure
E-Catalogue
Length (mm) Width (mm) Thickness (mm) Max. Bundle Dia (mm) Length (inch) Width (inch) Thickness (inch) Max. Bundle Dia (inch) Coating Type Loop Tensile Strength Kgs (lbs) G.W. /100 pcs Kgs. (Lbs.) SS 316 SS 304 PDF Drawing
100 4.6 0.38 25 3.94 0.18 0.01 0.98 POLYESTER 60 (132) 0.18 (0.39)
BL-100PCP
BL-100/4PCP
100 4.6 0.45 25 3.94 0.18 0.02 0.98 NYLON 60 (132) 0.18 (0.39)
BL-100PCN
BL-100/4PCN
150 4.6 0.38 30 5.91 0.18 0.01 1.18 POLYESTER 60 (132) 0.22 (0.48)
BL-150PCP
BL-150/4PCP
150 4.6 0.45 30 5.91 0.18 0.02 1.18 NYLON 60 (132) 0.22 (0.48)
BL-150PCN
BL-150/4PCN
200 4.6 0.38 50 7.87 0.18 0.01 1.97 POLYESTER 60 (132) 0.27 (0.59)
BL-200PCP
BL-200/4PCP
200 4.6 0.45 50 7.87 0.18 0.02 1.97 NYLON 60 (132) 0.27 (0.59)
BL-200PCN
BL-200/4PCN
260 4.6 0.38 70 10.24 0.18 0.01 2.76 POLYESTER 60 (132) 0.34 (0.74)
BL-260PCP
BL-260/4PCP
260 4.6 0.45 70 10.24 0.18 0.02 2.76 NYLON 60 (132) 0.34 (0.74)
BL-260PCN
BL-260/4PCN
300 4.6 0.38 82 11.81 0.18 0.01 3.23 POLYESTER 60 (132) 0.36 (0.79)
BL-300PCP
BL-300/4PCP
300 4.6 0.45 82 11.81 0.18 0.02 3.23 NYLON 60 (132) 0.36 (0.79)
BL-300PCN
BL-300/4PCN
360 4.6 0.38 100 14.17 0.18 0.01 3.94 POLYESTER 60 (132) 0.42 (0.92)
BL-360PCP
BL-360/4PCP
360 4.6 0.45 100 14.17 0.18 0.02 3.94 NYLON 60 (132) 0.42 (0.92)
BL-360PCN
BL-360/4PCN
450 4.6 0.38 130 17.72 0.18 0.01 5.12 POLYESTER 60 (132) 0.49 (1.08)
BL-450PCP
BL-450/4PCP
450 4.6 0.45 130 17.72 0.18 0.02 5.12 NYLON 60 (132) 0.49 (1.08)
BL-450PCN
BL-450/4PCN
520 4.6 0.38 150 20.47 0.18 0.01 5.91 POLYESTER 60 (132) 0.59 (1.30)
BL-520PCP
BL-520/4PCP
520 4.6 0.45 150 20.47 0.18 0.02 5.91 NYLON 60 (132) 0.59 (1.30)
BL-520PCN
BL-520/4PCN
610 4.6 0.38 180 24.02 0.18 0.01 7.09 POLYESTER 60 (132) 0.67 (1.47)
BL-610PCP
BL-610/4PCP
610 4.6 0.45 180 24.02 0.18 0.02 7.09 NYLON 60 (132) 0.67 (1.47)
BL-610PCN
BL-610/4PCN
680 4.6 0.38 200 26.77 0.18 0.01 7.87 POLYESTER 60 (132) 0.71 (1.56)
BL-680PCP
BL-680/4PCP
680 4.6 0.45 200 26.77 0.18 0.02 7.87 NYLON 60 (132) 0.71 (1.56)
BL-680PCN
BL-680/4PCN
840 4.6 0.38 250 33.07 0.18 0.01 9.84 POLYESTER 60 (132) 0.87 (1.91)
BL-840PCP
BL-840/4PCP
840 4.6 0.45 250 33.07 0.18 0.02 9.84 NYLON 60 (132) 0.87 (1.91)
BL-840PCN
BL-840/4PCN
1000 4.6 0.38 300 39.37 0.18 0.01 11.81 POLYESTER 60 (132) 1.03 (2.27)
BL-1000PCP
BL-1000/4PCP
1000 4.6 0.45 300 39.37 0.18 0.02 11.81 NYLON 60 (132) 1.03 (2.27)
BL-1000PCN
BL-1000/4PCN
100 7.9 0.38 25 3.94 0.31 0.01 0.98 POLYESTER 170 (375) 0.35 (0.77)
BLH-100PCP
BLH-100/4PCP
100 7.9 0.45 25 3.94 0.31 0.02 0.98 NYLON 170 (375) 0.35 (0.77)
BLH-100PCN
BLH-100/4PCN
150 7.9 0.38 30 5.91 0.31 0.01 1.18 POLYESTER 170 (375) 0.42 (0.92)
BLH-150PCP
BLH-150/4PCP
150 7.9 0.45 30 5.91 0.31 0.02 1.18 NYLON 170 (375) 0.42 (0.92)
BLH-150PCN
BLH-150/4PCN
200 7.9 0.38 50 7.87 0.31 0.01 1.97 POLYESTER 170 (375) 0.51 (1.12)
BLH-200PCP
BLH-200/4PCP
200 7.9 0.45 50 7.87 0.31 0.02 1.97 NYLON 170 (375) 0.51 (1.12)
BLH-200PCN
BLH-200/4PCN
260 7.9 0.38 70 10.24 0.31 0.01 2.76 POLYESTER 170 (375) 0.63 (1.38)
BLH-260PCP
BLH-260/4PCP
260 7.9 0.45 70 10.24 0.31 0.02 2.76 NYLON 170 (375) 0.63 (1.38)
BLH-260PCN
BLH-260/4PCN
300 7.9 0.38 82 11.81 0.31 0.01 3.23 POLYESTER 170 (375) 0.69 (1.52)
BLH-300PCP
BLH-300/4PCP
300 7.9 0.45 82 11.81 0.31 0.02 3.23 NYLON 170 (375) 0.69 (1.52)
BLH-300PCN
BLH-300/4PCN
360 7.9 0.38 100 14.17 0.31 0.01 3.94 POLYESTER 170 (375) 0.80 (1.76)
BLH-360PCP
BLH-360/4PCP
360 7.9 0.45 100 14.17 0.31 0.02 3.94 NYLON 170 (375) 0.80 (1.76)
BLH-360PCN
BLH-360/4PCN
450 7.9 0.38 130 17.72 0.31 0.01 5.12 POLYESTER 170 (375) 0.94 (2.07)
BLH-450PCP
BLH-450/4PCP
450 7.9 0.45 130 17.72 0.31 0.02 5.12 NYLON 170 (375) 0.94 (2.07)
BLH-450PCN
BLH-450/4PCN
520 7.9 0.38 150 20.47 0.31 0.01 5.91 POLYESTER 170 (375) 1.08 (2.38)
BLH-520PCP
BLH-520/4PCP
520 7.9 0.45 150 20.47 0.31 0.02 5.91 NYLON 170 (375) 1.08 (2.38)
BLH-520PCN
BLH-520/4PCN
610 7.9 0.38 180 24.02 0.31 0.01 7.09 POLYESTER 170 (375) 1.24 (2.73)
BLH-610PCP
BLH-610/4PCP
610 7.9 0.45 180 24.02 0.31 0.02 7.09 NYLON 170 (375) 1.24 (2.73)
BLH-610PCN
BLH-610/4PCN
680 7.9 0.38 200 26.77 0.31 0.01 7.87 POLYESTER 170 (375) 1.32 (2.90)
BLH-680PCP
BLH-680/4PCP
680 7.9 0.45 200 26.77 0.31 0.02 7.87 NYLON 170 (375) 1.32 (2.90)
BLH-680PCN
BLH-680/4PCN
840 7.9 0.38 250 33.07 0.31 0.01 9.84 POLYESTER 170 (375) 1.62 (3.57)
BLH-840PCP
BLH-840/4PCP
840 7.9 0.45 250 33.07 0.31 0.02 9.84 NYLON 170 (375) 1.62 (3.57)
BLH-840PCN
BLH-840/4PCN
1000 7.9 0.38 300 39.37 0.31 0.01 11.81 POLYESTER 170 (375) 1.88 (4.14)
BLH-1000PCP
BLH-1000/4PCP
1000 7.9 0.45 300 39.37 0.31 0.02 11.81 NYLON 170 (375) 1.88 (4.14)
BLH-1000PCN
BLH-1000/4PCN
200 12.7 0.38 26 7.87 0.50 0.01 1.02 POLYESTER 267 (589) 1.39 (3.06)
BLEH-200PCP
BLEH-200/4PCP
200 12.7 0.45 26 7.87 0.50 0.02 1.02 NYLON 267 (589) 1.39 (3.06)
BLEH-200PCN
BLEH-200/4PCN
300 12.7 0.38 58 11.81 0.50 0.01 2.28 POLYESTER 267 (589) 1.65 (3.63)
BLEH-300PCP
BLEH-300/4PCP
300 12.7 0.45 58 11.81 0.50 0.02 2.28 NYLON 267 (589) 1.65 (3.63)
BLEH-300PCN
BLEH-300/4PCN
360 12.7 0.38 77 14.17 0.50 0.01 3.03 POLYESTER 267 (589) 1.81 (3.99)
BLEH-360PCP
BLEH-360/4PCP
360 12.7 0.45 77 14.17 0.50 0.02 3.03 NYLON 267 (589) 1.81 (3.99)
BLEH-360PCN
BLEH-360/4PCN
520 12.7 0.38 128 20.47 0.50 0.01 5.04 POLYESTER 267 (589) 2.25 (4.96)
BLEH-520PCP
BLEH-520/4PCP
520 12.7 0.45 128 20.47 0.50 0.02 5.04 NYLON 267 (589) 2.25 (4.96)
BLEH-520PCN
BLEH-520/4PCN
680 12.7 0.38 179 26.77 0.50 0.01 7.05 POLYESTER 267 (589) 2.69 (5.93)
BLEH-680PCP
BLEH-680/4PCP
680 12.7 0.45 179 26.77 0.50 0.02 7.05 NYLON 267 (589) 2.69 (5.93)
BLEH-680PCN
BLEH-680/4PCN
840 12.7 0.38 230 33.07 0.50 0.01 9.06 POLYESTER 267 (589) 3.13 (6.90)
BLEH-840PCP
BLEH-840/4PCP
840 12.7 0.45 230 33.07 0.50 0.02 9.06 NYLON 267 (589) 3.13 (6.90)
BLEH-840PCN
BLEH-840/4PCN
1000 12.7 0.38 280 39.37 0.50 0.01 11.02 POLYESTER 267 (589) 3.56 (7.84)
BLEH-1000PCP
BLEH-1000/4PCP
1000 12.7 0.45 280 39.37 0.50 0.02 11.02 NYLON 267 (589) 3.56 (7.84)
BLEH-1000PCN
BLEH-1000/4PCN
200 12.7 0.51 26 7.87 0.50 0.02 1.02 POLYESTER 310 (684) 1.69 (3.72)
BLEHT-200PCP
BLEHT-200/4PCP
200 12.7 0.58 26 7.87 0.50 0.02 1.02 NYLON 310 (684) 1.69 (3.72)
BLEHT-200PCN
BLEHT-200/4PCN
300 12.7 0.51 58 11.81 0.50 0.02 2.28 POLYESTER 310 (684) 2.10 (4.62)
BLEHT-300PCP
BLEHT-300/4PCP
300 12.7 0.58 58 11.81 0.50 0.02 2.28 NYLON 310 (684) 2.10 (4.62)
BLEHT-300PCN
BLEHT-300/4PCN
360 12.7 0.51 77 14.17 0.50 0.02 3.03 POLYESTER 310 (684) 2.35 (5.18)
BLEHT-360PCP
BLEHT-360/4PCP
360 12.7 0.58 77 14.17 0.50 0.02 3.03 NYLON 310 (684) 2.35 (5.18)
BLEHT-360PCN
BLEHT-360/4PCN
520 12.7 0.51 128 20.47 0.50 0.02 5.04 POLYESTER 310 (684) 3.01 (6.63)
BLEHT-520PCP
BLEHT-520/4PCP
520 12.7 0.58 128 20.47 0.50 0.02 5.04 NYLON 310 (684) 3.01 (6.63)
BLEHT-520PCN
BLEHT-520/4PCN
680 12.7 0.51 179 26.77 0.50 0.02 7.05 POLYESTER 310 (684) 3.67 (8.09)
BLEHT-680PCP
BLEHT-680/4PCP
680 12.7 0.58 179 26.77 0.50 0.02 7.05 NYLON 310 (684) 3.67 (8.09)
BLEHT-680PCN
BLEHT-680/4PCN
840 12.7 0.51 230 33.07 0.50 0.02 9.06 POLYESTER 310 (684) 4.33 (9.54)
BLEHT-840PCP
BLEHT-840/4PCP
840 12.7 0.58 230 33.07 0.50 0.02 9.06 NYLON 310 (684) 4.33 (9.54)
BLEHT-840PCN
BLEHT-840/4PCN
1000 12.7 0.51 280 39.37 0.50 0.02 11.02 POLYESTER 310 (684) 4.99 (11.0)
BLEHT-1000PCP
BLEHT-1000/4PCP
1000 12.7 0.58 280 39.37 0.50 0.02 11.02 NYLON 310 (684) 4.99 (11.0)
BLEHT-1000PCN
BLEHT-1000/4PCN
450 15.9 0.51 107 17.72 0.63 0.02 4.21 POLYESTER 400 (882) 3.28 (7.23)
BLSH-450PCP
BLSH-450/4PCP
450 15.9 0.58 107 17.72 0.63 0.02 4.21 NYLON 400 (882) 3.28 (7.23)
BLSH-450PCN
BLSH-450/4PCN
610 15.9 0.51 158 24.02 0.63 0.02 6.22 POLYESTER 400 (882) 4.11 (9.06)
BLSH-610PCP
BLSH-610/4PCP
610 15.9 0.58 158 24.02 0.63 0.02 6.22 NYLON 400 (882) 4.11 (9.06)
BLSH-610PCN
BLSH-610/4PCN
760 15.9 0.51 206 29.92 0.63 0.02 8.11 POLYESTER 400 (882) 4.90 (10.08)
BLSH-760PCP
BLSH-760/4PCP
760 15.9 0.58 206 29.92 0.63 0.02 8.11 NYLON 400 (882) 4.90 (10.08)
BLSH-760PCN
BLSH-760/4PCN
912 15.9 0.51 254 35.91 0.63 0.02 10.00 POLYESTER 400 (882) 5.69 (12.54)
BLSH-912PCP
BLSH-912/4PCP
912 15.9 0.58 254 35.91 0.63 0.02 10.00 NYLON 400 (882) 5.69 (12.54)
BLSH-912PCN
BLSH-912/4PCN
1000 15.9 0.51 282 39.37 0.63 0.02 11.10 POLYESTER 400 (882) 6.14 (13.53)
BLSH-1000PCP
BLSH-1000/4PCP
1000 15.9 0.58 282 39.37 0.63 0.02 11.10 NYLON 400 (882) 6.14 (13.53)
BLSH-1000PCN
BLSH-1000/4PCN
