BALL LOCK STEEL TIE UNCOATED

Applications

Suitable for corrosive climate condition, higher temperature and higher tensile strength requirement

Key Industries:

Aerospace
Chemicals & Refineries
Dairy & Food Processing
Oil, Gas & Offshore
Ship & Marines
Solar
Telecom
Utility
Windmill

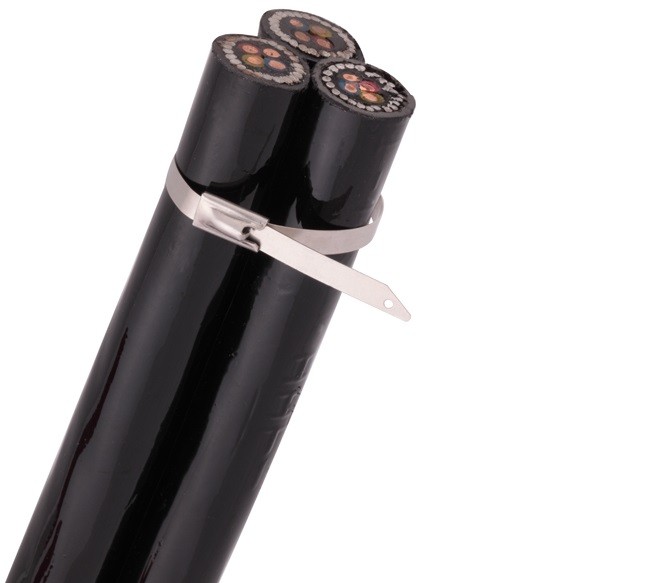

Uncoated Ball Lock Steel Tie

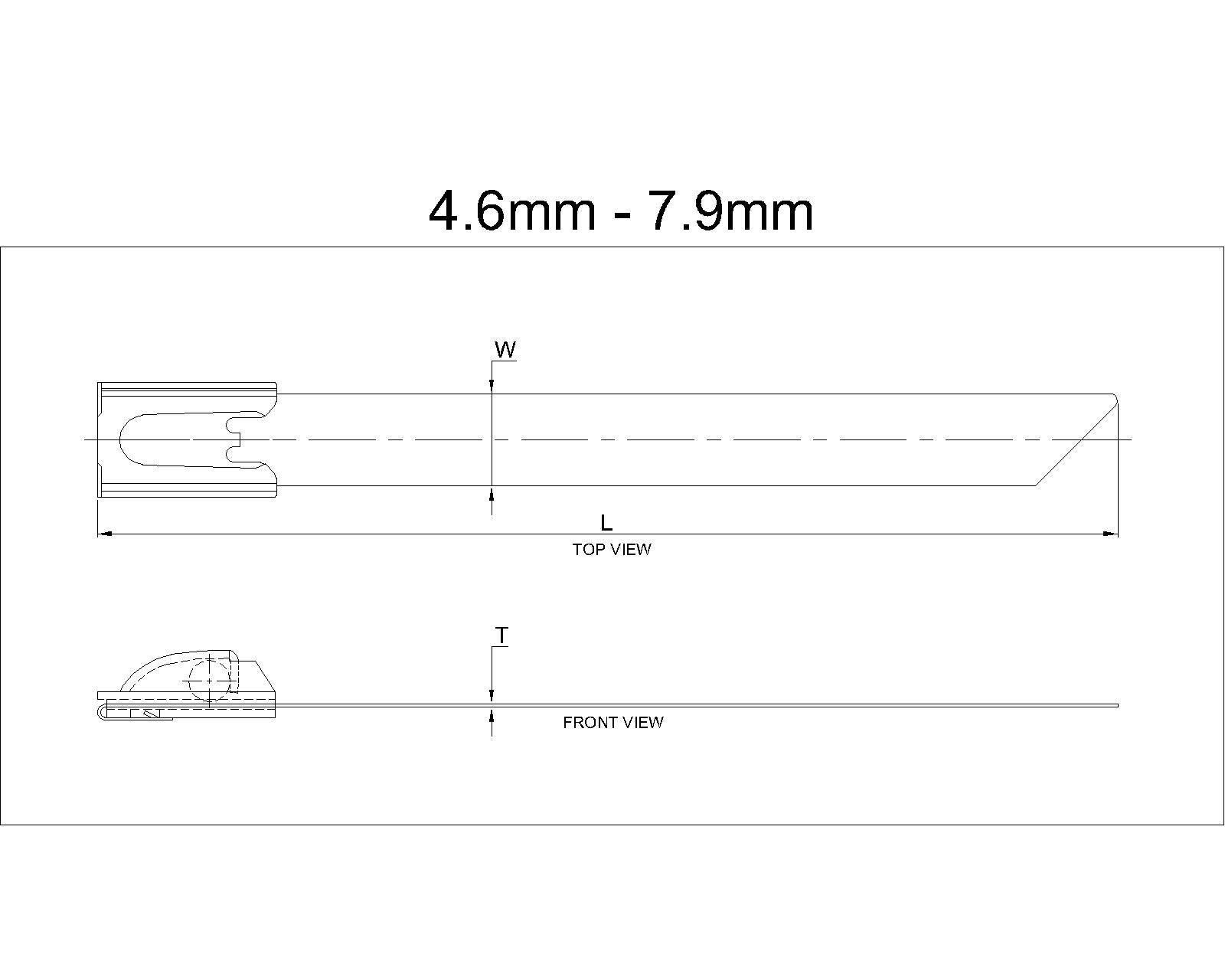

Uncoated Ball Lock Steel Tie Line Drawing - Ball Lock Steel Tie Uncoated Ball Lock Steel Tie Uncoated

Material: Stainless Steel SS 316, SS 304
Operating Temp: -80°C to +538°C
Installation: By hand or with the help of tool SST1, SST2
Test Certificate:
Packing: 100 pcs bag
Unit: 100 Pcs/Pkt
* Ball lock steel ties are self locking. Fast & easy to install
* When locked on bundles, the ball inside the angled ramp of the head provides positive locking
* Smooth edges of ties provide utmost safety while installation
Download Brochure
E-Catalogue
Length (mm) Width (mm) Thickness (mm) Max. Bundle Dia (mm) Length (Inch) Width (Inch) Thickness (Inch) Max. Bundle Dia (Inch) Loop Tensile Strength Kgs (lbs) G.W. /100 pcs Kgs. (Lbs.) Cat No. SS 316 Cat No. SS 304 PDF Drawing
100 4.6 0.25 25 3.94 0.18 0.010 0.98 60 (132) 0.17 (0.37)
BL-100
BL-100/4
150 4.6 0.25 30 5.91 0.18 0.010 1.18 60 (132) 0.21 (0.46)
BL-150
BL-150/4
200 4.6 0.25 50 7.87 0.18 0.010 1.97 60 (132) 0.26 (0.57)
BL-200
BL-200/4
260 4.6 0.25 70 10.24 0.18 0.010 2.76 60 (132) 0.32 (0.70)
BL-260
BL-260/4
300 4.6 0.25 82 11.81 0.18 0.010 3.23 60 (132) 0.34 (0.74)
BL-300
BL-300/4
360 4.6 0.25 100 14.17 0.18 0.010 3.94 60 (132) 0.40 (0.88)
BL-360
BL-360/4
450 4.6 0.25 130 17.72 0.18 0.010 5.12 60 (132) 0.46 (1.01)
BL-450
BL-450/4
520 4.6 0.25 150 20.47 0.18 0.010 5.91 60 (132) 0.56 (1.23)
BL-520
BL-520/4
610 4.6 0.25 180 24.02 0.18 0.010 7.09 60 (132) 0.63 (1.38)
BL-610
BL-610/4
680 4.6 0.25 200 26.77 0.18 0.010 7.87 60 (132) 0.67 (1.47)
BL-680
BL-680/4
840 4.6 0.25 250 33.07 0.18 0.010 9.84 60 (132) 0.82 (1.80)
BL-840
BL-840/4
1000 4.6 0.25 300 39.37 0.18 0.010 11.81 60 (132) 0.97 (2.13)
BL-1000
BL-1000/4
100 7.9 0.25 25 3.94 0.31 0.010 0.98 170 (375) 0.33 (0.72)
BLH-100
BLH-100/4
150 7.9 0.25 30 5.91 0.31 0.010 1.18 170 (375) 0.40 (0.88)
BLH-150
BLH-150/4
200 7.9 0.25 50 7.87 0.31 0.010 1.97 170 (375) 0.48 (1.05)
BLH-200
BLH-200/4
260 7.9 0.25 70 10.24 0.31 0.010 2.76 170 (375) 0.59 (1.30)
BLH-260
BLH-260/4
300 7.9 0.25 82 11.81 0.31 0.010 3.35 170 (375) 0.65 (1.43)
BLH-300
BLH-300/4
360 7.9 0.25 100 14.17 0.31 0.010 3.94 170 (375) 0.75 (1.65)
BLH-360
BLH-360/4
450 7.9 0.25 130 17.72 0.31 0.010 5.12 170 (375) 0.88 (1.94)
BLH-450
BLH-450/4
520 7.9 0.25 150 20.47 0.31 0.010 5.91 170 (375) 1.01 (2.22)
BLH-520
BLH-520/4
610 7.9 0.25 180 24.02 0.31 0.010 7.09 170 (375) 1.16 (2.55)
BLH-610
BLH-610/4
680 7.9 0.25 200 26.77 0.31 0.010 7.87 170 (375) 1.24 (2.73)
BLH-680
BLH-680/4
840 7.9 0.25 250 33.07 0.31 0.010 9.84 170 (375) 1.52 (3.35)
BLH-840
BLH-840/4
1000 7.9 0.25 300 39.37 0.31 0.010 11.81 170 (375) 1.76 (3.88)
BLH-1000
BLH-1000/4
200 12.7 0.25 26 7.87 0.50 0.010 1.02 267 (589) 1.30 (2.87)
BLEH-200
BLEH-200/4
300 12.7 0.25 58 11.81 0.50 0.010 2.28 267 (589) 1.55 (3.42)
BLEH-300
BLEH-300/4
360 12.7 0.25 77 14.17 0.50 0.010 3.03 267 (589) 1.70 (3.75)
BLEH-360
BLEH-360/4
520 12.7 0.25 128 20.47 0.50 0.010 5.04 267 (589) 2.11 (4.65)
BLEH-520
BLEH-520/4
680 12.7 0.25 179 26.77 0.50 0.010 7.05 267 (589) 2.52 (5.55)
BLEH-680
BLEH-680/4
840 12.7 0.25 230 33.07 0.50 0.010 9.06 267 (589) 2.93 (6.45)
BLEH-840
BLEH-840/4
1000 12.7 0.25 280 39.37 0.50 0.010 11.02 267 (589) 3.33 (7.34)
BLEH-1000
BLEH-1000/4
200 12.7 0.38 26 7.87 0.50 0.015 1.02 310 (684) 1.58 (3.48)
BLEHT-200
BLEHT-200/4
300 12.7 0.38 58 11.81 0.50 0.015 2.28 310 (684) 1.97 (4.34)
BLEHT-300
BLEHT-300/4
360 12.7 0.38 77 14.17 0.50 0.015 3.03 310 (684) 2.20 (4.84)
BLEHT-360
BLEHT-360/4
520 12.7 0.38 128 20.47 0.50 0.015 5.04 310 (684) 2.82 (6.21)
BLEHT-520
BLEHT-520/4
680 12.7 0.38 179 26.77 0.50 0.015 7.05 310 (684) 3.43 (7.56)
BLEHT-680
BLEHT-680/4
840 12.7 0.38 230 33.07 0.50 0.015 9.06 310 (684) 4.05 (8.93)
BLEHT-840
BLEHT-840/4
1000 12.7 0.38 280 39.37 0.50 0.015 11.02 310 (684) 4.67 (10.29)
BLEHT-1000
BLEHT-1000/4
450 15.9 0.38 107 17.72 0.63 0.015 4.21 400 (882) 3.07 (6.77)
BLSH-450
BLSH-450/4
610 15.9 0.38 158 24.02 0.63 0.015 6.22 400 (882) 3.85 (8.49)
BLSH-610
BLSH-610/4
760 15.9 0.38 206 29.92 0.63 0.015 8.11 400 (882) 4.58 (10.09)
BLSH-760
BLSH-760/4
912 15.9 0.38 254 35.91 0.63 0.015 10.00 400 (882) 5.32 (11.73)
BLSH-912
BLSH-912/4
1000 15.9 0.38 282 39.37 0.63 0.015 11.10 400 (882) 5.74 (12.65)
BLSH-1000
BLSH-1000/4
