BALL LOCK ZIGZAG TIE COATED

Applications

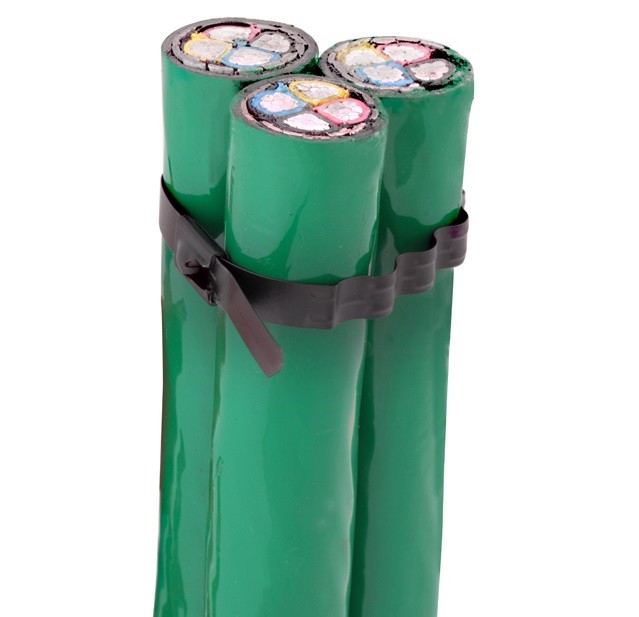

Used where extensive vibration is there & positive locking is required

Key Industries:

Aerospace
Chemicals & Refineries
Dairy & Food Processing
Oil, Gas & Offshore
Ship & Marines
Solar
Telecom
Utility
Windmill

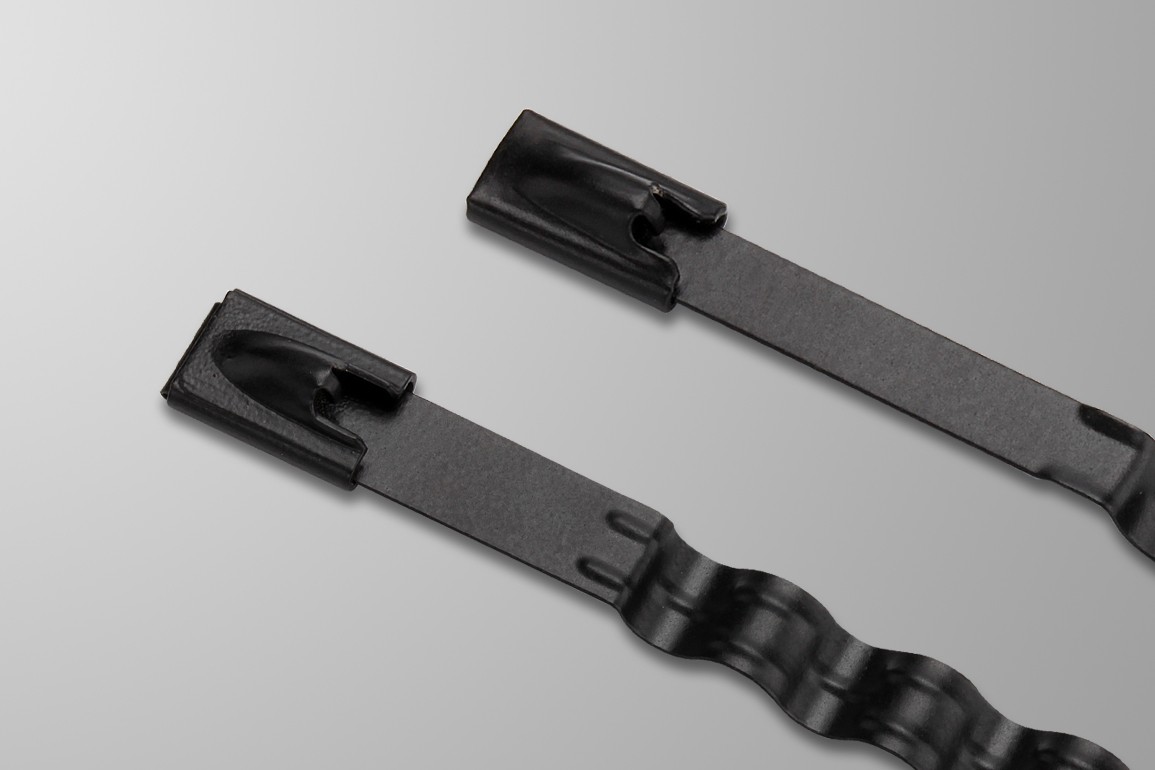

Ball Lock Zigzag Cable Tie Coated

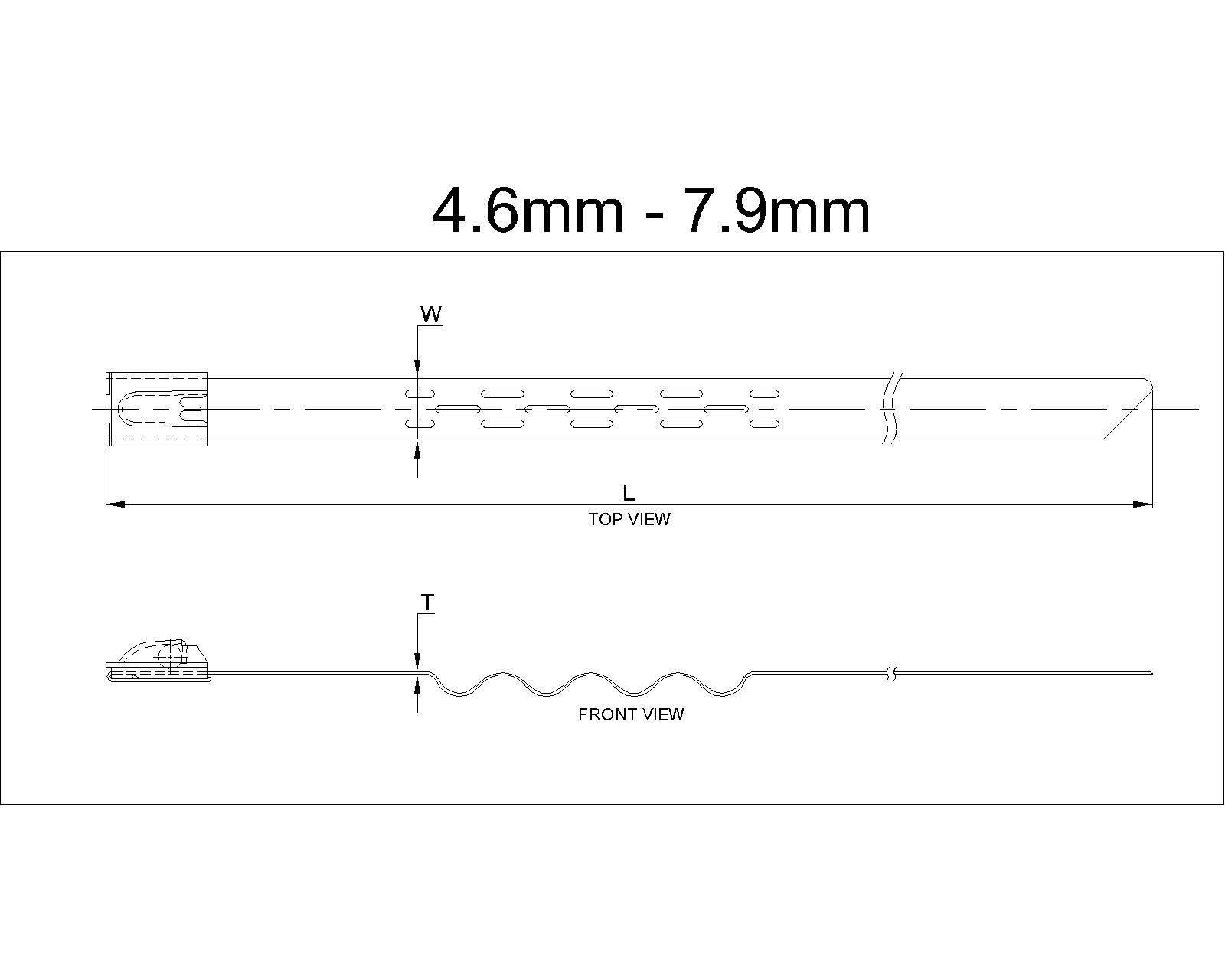

Ball Lock Zigzag Cable Tie Coated Line Drawing - Ball Lock Zigzag Tie Coated Ball Lock Zigzag Tie Coated

Material: Stainless Steel SS 316, SS 304
Coating:
* Black Polyester
* Black Nylon
Operating Temp: -80°C to +150°C
Installation: By hand or with the help of tool STT1, STT2
Test Certificate:
Packing: 100 pcs bag
Unit: 100 Pcs/Pkt
* Modified wave form clamps where no other steel ties retain tension
* Grips firmly on solid object at low applied forces
* Smooth edges of ties provide utmost safety while installation
* Coating material is non-toxic, halogen free, low smoke and UV resistant
* Coated ties provides long term life in corrosive climate condition
Download Brochure
E-Catalogue
Length (mm) Width (mm) Thickness (mm) Max. Bundle Dia (mm) Length (Inch) Width (Inch) Thickness (Inch) Max. Bundle Dia (Inch) Coating Type Loop Tensile Strength Kgs (lbs) G.W. /100 pcs Kgs. (Lbs.) Cat No. SS 316 Cat No. SS 304 PDF Drawing
200 4.6 0.38 50 7.87 0.18 0.015 1.97 POLYESTER 60 (132) 0.27 (0.60)
BLZ-200CP
BLZ-200/4CP
200 4.6 0.45 50 7.87 0.18 0.018 1.97 NYLON 60 (132) 0.27 (0.60)
BLZ-200CN
BLZ-200/4CN
360 4.6 0.38 100 14.17 0.18 0.015 3.94 POLYESTER 60 (132) 0.43 (0.95)
BLZ-360CP
BLZ-360/4CP
360 4.6 0.45 100 14.17 0.18 0.018 3.94 NYLON 60 (132) 0.43 (0.95)
BLZ-360CN
BLZ-360/4CN
520 4.6 0.38 150 20.47 0.18 0.015 5.91 POLYESTER 60 (132) 0.58 (1.29)
BLZ-520CP
BLZ-520/4CP
520 4.6 0.45 150 20.47 0.18 0.018 5.91 NYLON 60 (132) 0.58 (1.29)
BLZ-520CN
BLZ-520/4CN
680 4.6 0.38 200 26.77 0.18 0.015 7.87 POLYESTER 60 (132) 0.74 (1.64)
BLZ-680CP
BLZ-680/4CP
680 4.6 0.45 200 26.77 0.18 0.018 7.87 NYLON 60 (132) 0.74 (1.64)
BLZ-680CN
BLZ-680/4CN
840 4.6 0.38 250 33.07 0.18 0.015 9.84 POLYESTER 60 (132) 0.90 (1.99)
BLZ-840CP
BLZ-840/4CP
840 4.6 0.45 250 33.07 0.18 0.018 9.84 NYLON 60 (132) 0.90 (1.99)
BLZ-840CN
BLZ-840/4CN
1000 4.6 0.38 300 39.37 0.18 0.015 11.81 POLYESTER 60 (132) 1.06 (2.33)
BLZ-1000CP
BLZ-1000/4CP
1000 4.6 0.45 300 39.37 0.18 0.018 11.81 NYLON 60 (132) 1.06 (2.33)
BLZ-1000CN
BLZ-1000/4CN
200 7.9 0.38 50 7.87 0.31 0.015 1.97 POLYESTER 170 (375) 0.51 (1.12)
BLHZ-200CP
BLHZ-200/4CP
200 7.9 0.45 50 7.87 0.31 0.018 1.97 NYLON 170 (375) 0.51 (1.12)
BLHZ-200CN
BLHZ-200/4CN
360 7.9 0.38 100 14.17 0.31 0.015 3.94 POLYESTER 170 (375) 0.78 (1.72)
BLHZ-360CP
BLHZ-360/4CP
360 7.9 0.45 100 14.17 0.31 0.018 3.94 NYLON 170 (375) 0.78 (1.72)
BLHZ-360CN
BLHZ-360/4CN
520 7.9 0.38 150 20.47 0.31 0.015 5.91 POLYESTER 170 (375) 1.05 (2.31)
BLHZ-520CP
BLHZ-520/4CP
520 7.9 0.45 150 20.47 0.31 0.018 5.91 NYLON 170 (375) 1.05 (2.31)
BLHZ-520CN
BLHZ-520/4CN
680 7.9 0.38 200 26.77 0.31 0.015 7.87 POLYESTER 170 (375) 1.32 (2.91)
BLHZ-680CP
BLHZ-680/4CP
680 7.9 0.45 200 26.77 0.31 0.018 7.87 NYLON 170 (375) 1.32 (2.91)
BLHZ-680CN
BLHZ-680/4CN
840 7.9 0.38 250 33.07 0.31 0.015 9.84 POLYESTER 170 (375) 1.59 (3.51)
BLHZ-840CP
BLHZ-840/4CP
840 7.9 0.45 250 33.07 0.31 0.018 9.84 NYLON 170 (375) 1.59 (3.51)
BLHZ-840CN
BLHZ-840/4CN
1000 7.9 0.38 300 39.37 0.31 0.015 11.81 POLYESTER 170 (375) 1.86 (4.10)
BLHZ-1000CP
BLHZ-1000/4CP
1000 7.9 0.45 300 39.37 0.31 0.018 11.81 NYLON 170 (375) 1.86 (4.10)
BLHZ-1000CN
BLHZ-1000/4CN
