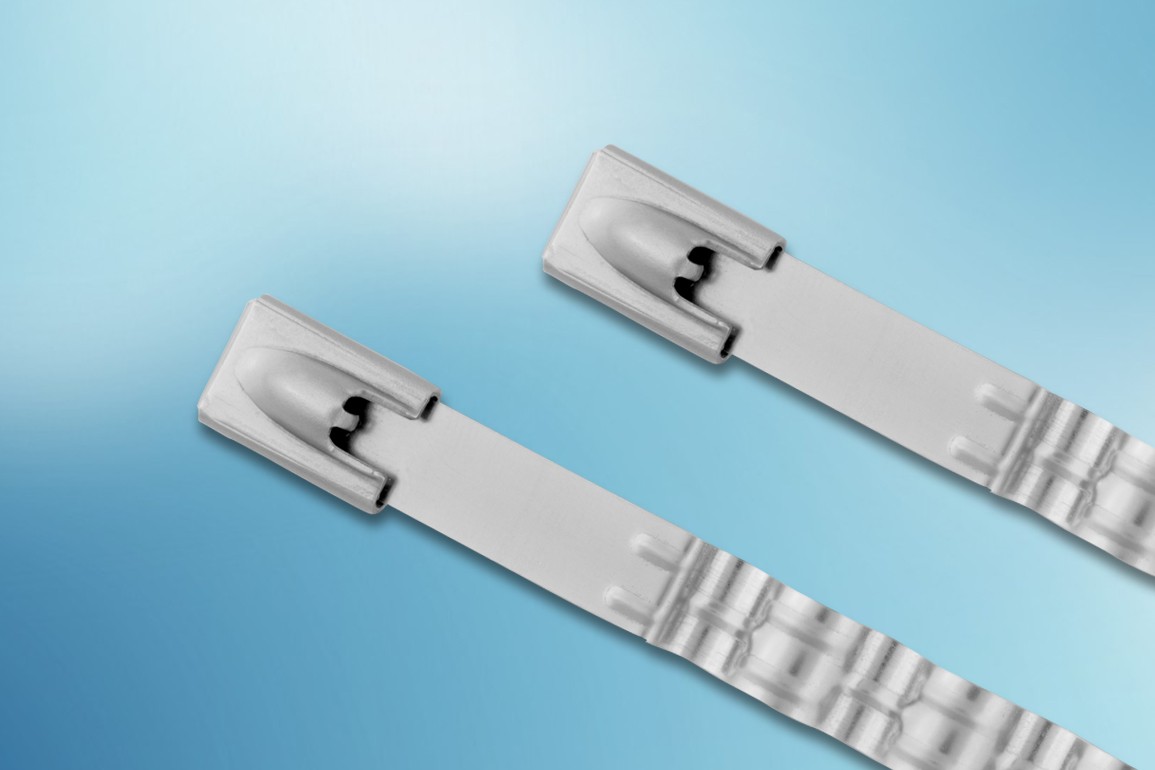

BALL LOCK ZIGZAG TIE UNCOATED

Applications

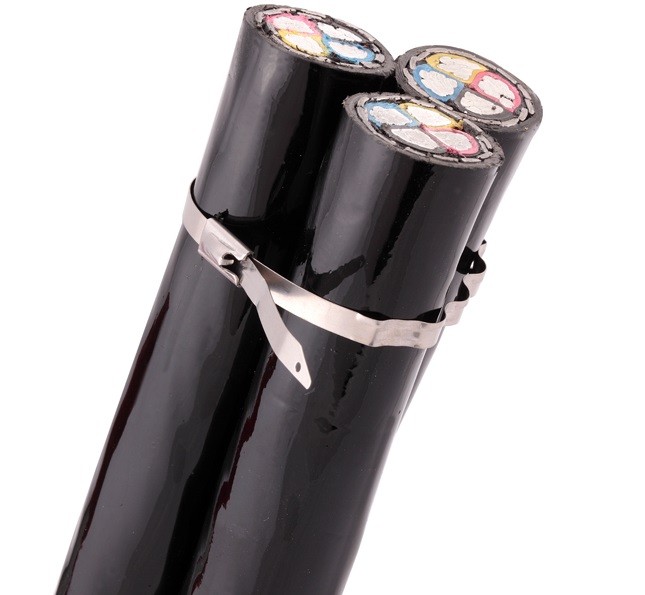

Used where extensive vibration is there & positive locking is required

Key Industries:

Uncoated Ball Lock Zigzag Tie

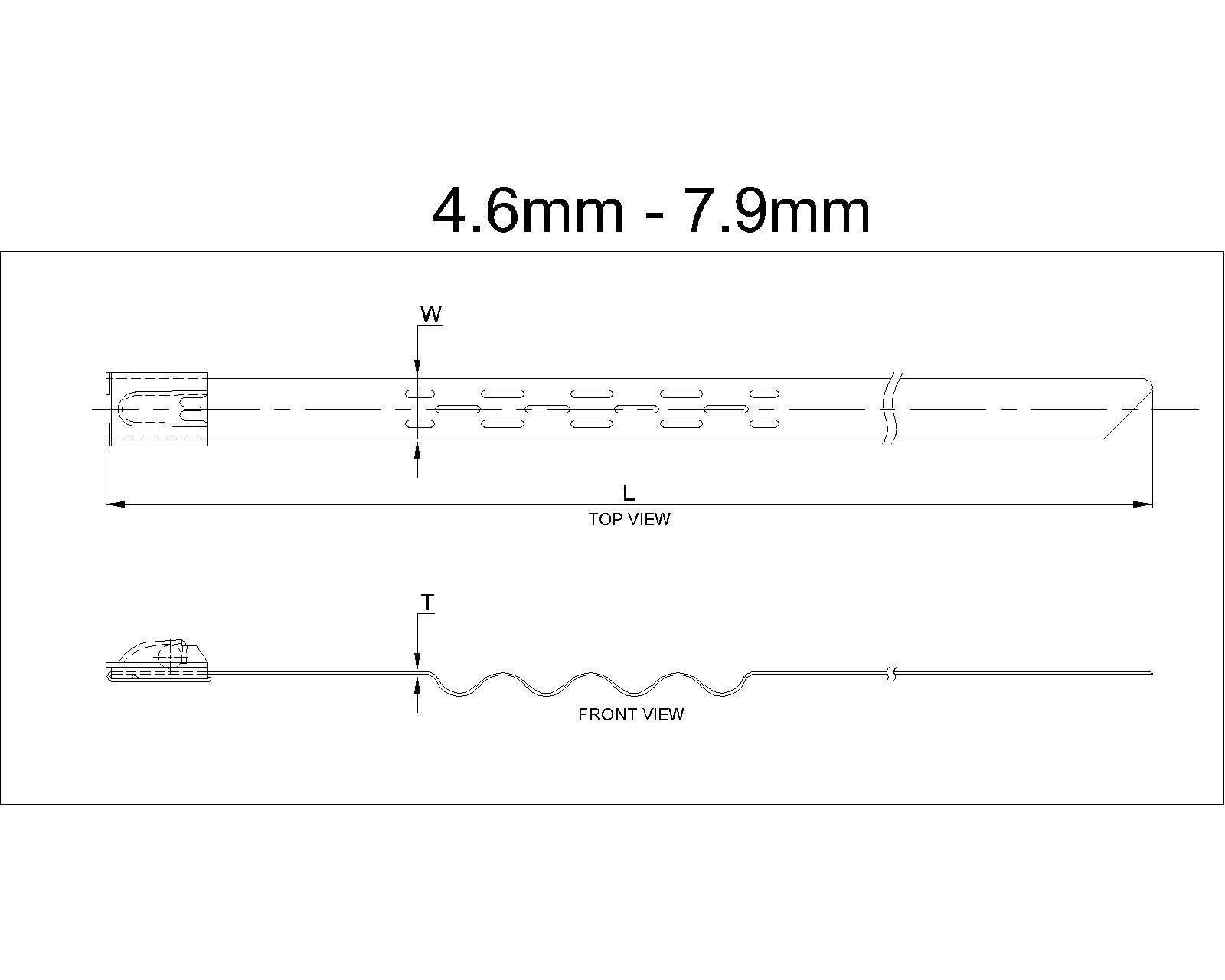

Uncoated Ball Lock Zigzag Tie Line Drawing - Ball Lock Zigzag Tie Uncoated Ball Lock Zigzag Tie Uncoated

Material: Stainless Steel SS 316, SS 304
Operating Temp: -80°C to +538°C
Installation:  By hand or with the help of tool STT1, STT2
Test Certificate:
Packing: 100 pcs bag
Unit: 100 Pcs/Pkt
* Modified wave form clamps where no other steel ties retain tension
* Grips firmly on solid object at low applied forces
* Smooth edges of ties provide utmost safety while installation
Length (mm) Width (mm) Thickness (mm) Max. Bundle Dia (mm) Length (inch) Width (inch) Thickness (inch) Max. Bundle Dia (inch) Loop Tensile Strength Kgs(lbs) G.W. /100 pcs Kgs. (Lbs.) Cat No. SS 316 Cat No. SS 304 PDF Drawing
200 4.6 0.25 50 7.87 0.18 0.010 1.97 60 (132) 0.25 (0.56)
BLZ-200
BLZ-200/4
360 4.6 0.25 100 14.17 0.18 0.010 3.94 60 (132) 0.40 (0.88)
BLZ-360
BLZ-360/4
520 4.6 0.25 150 20.47 0.18 0.010 5.91 60 (132) 0.55 (1.21)
BLZ-520
BLZ-520/4
680 4.6 0.25 200 26.77 0.18 0.010 7.87 60 (132) 0.69 (1.53)
BLZ-680
BLZ-680/4
840 4.6 0.25 250 33.07 0.18 0.010 9.84 60 (132) 0.84 (1.86)
BLZ-840
BLZ-840/4
1000 4.6 0.25 300 39.37 0.18 0.010 11.81 60 (132) 0.99 (2.18)
BLZ-1000
BLZ-1000/4
200 7.9 0.25 50 7.87 0.31 0.010 1.97 170 (375) 0.47 (1.05)
BLHZ-200
BLHZ-200/4
360 7.9 0.25 100 14.17 0.31 0.010 3.94 170 (375) 0.73 (1.60)
BLHZ-360
BLHZ-360/4
520 7.9 0.25 150 20.47 0.31 0.010 5.91 170 (375) 0.98 (2.16)
BLHZ-520
BLHZ-520/4
680 7.9 0.25 200 26.77 0.31 0.010 7.87 170 (375) 1.23 (2.72)
BLHZ-680
BLHZ-680/4
840 7.9 0.25 250 33.07 0.31 0.010 9.84 170 (375) 1.48 (3.28)
BLHZ-840
BLHZ-840/4
1000 7.9 0.25 300 39.37 0.31 0.010 11.81 170 (375) 1.74 (3.83)
BLHZ-1000
BLHZ-1000/4
