EASY LOCK STEEL TIE UNCOATED

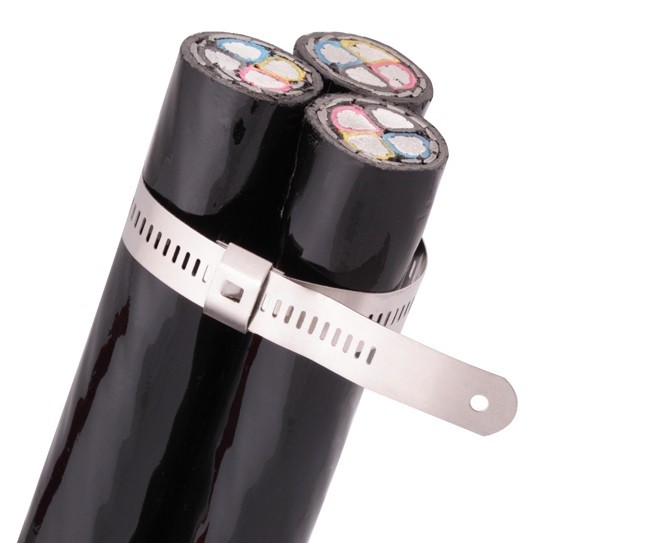

Applications

Suitable for corrosive climate condition, higher temperature and higher tensile strength requirement

Key Industries:

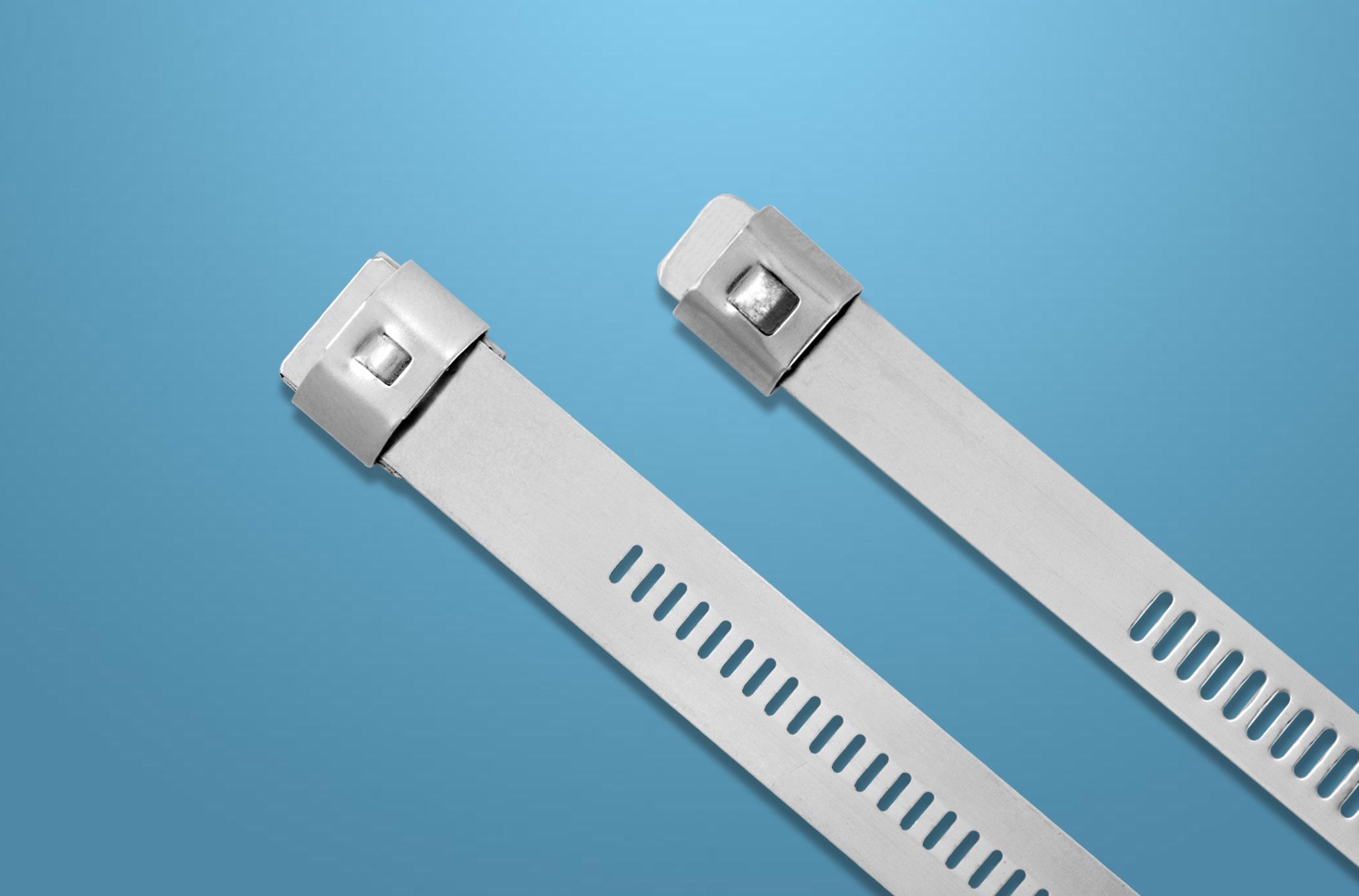

Uncoated Easy Lock Steel Tie

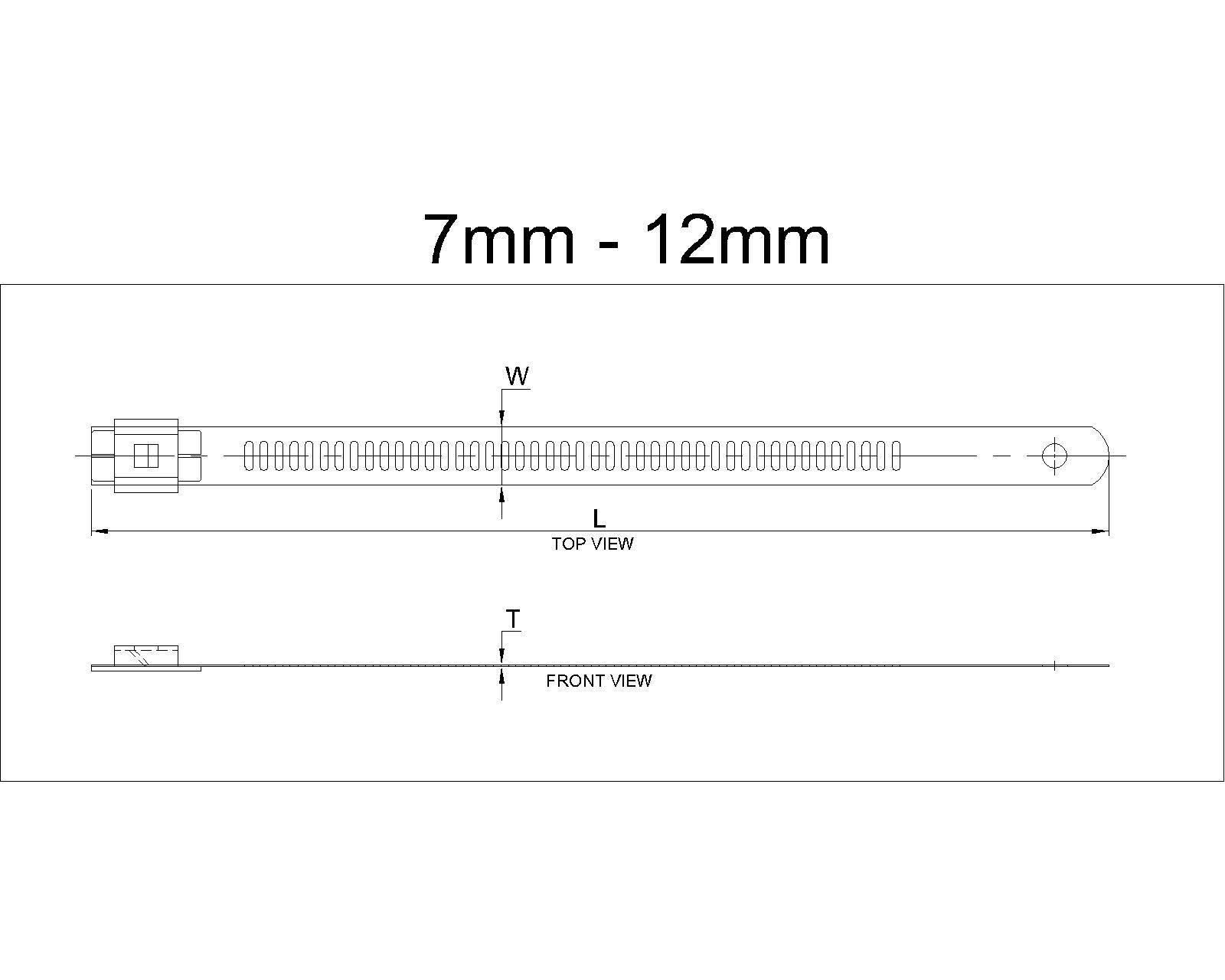

Uncoated Easy Lock Steel Tie Line Drawing - Easy Lock Steel Tie Uncoated Easy Lock Steel Tie Uncoated

Material: Stainless Steel SS 316, SS 304
Operating Temp:  -80°C to +538°C
Installation: By Tie tools (STT 1 & 2) & hook (STT 3)
Test Certificate:
Packing: 100 pcs bag
Unit: 100 Pcs/Pkt
* Easy lock steel ties are self locking with multiple locking systems designed for fast, strong and secure Installation.
* Smooth edges of ties provide utmost safety while installation
Length (mm) Width (mm) Thickness (mm) Max. Bundle Dia (mm) Length (inch) Width (inch) Thickness (inch) Max. Bundle Dia (inch) Loop Tensile Strength Kgs (lbs) G.W. /100 pcs Kgs. (Lbs.) SS 316 SS 304 PDF Drawing
150 7.0 0.25 35 5.91 0.28 0.010 1.38 45 (99) 0.23 (0.50)
EL-150
EL-150/4
200 7.0 0.25 51 7.87 0.28 0.010 2.01 45 (99) 0.29 (0.63)
EL-200
EL-200/4
225 7.0 0.25 60 8.86 0.28 0.010 2.36 45 (99) 0.31 (0.68)
EL-225
EL-225/4
250 7.0 0.25 65 9.84 0.28 0.010 2.56 45 (99) 0.33 (0.72)
EL-250
EL-250/4
300 7.0 0.25 80 11.81 0.28 0.010 3.15 45 (99) 0.41 (0.90)
EL-300
EL-300/4
360 7.0 0.25 100 14.17 0.28 0.010 3.94 45 (99) 0.48 (1.05)
EL-360
EL-360/4
450 7.0 0.25 125 17.72 0.28 0.010 4.92 45 (99) 0.57 (1.25)
EL-450
EL-450/4
600 7.0 0.25 175 23.62 0.28 0.010 6.89 45 (99) 0.74 (1.63)
EL-600
EL-600/4
610 7.0 0.25 180 24.02 0.28 0.010 7.09 45 (99) 0.77 (1.69)
EL-610
EL-610/4
750 7.0 0.25 225 29.53 0.28 0.010 8.86 45 (99) 0.94 (2.07)
EL-750
EL-750/4
1000 7.0 0.25 300 39.37 0.28 0.010 11.81 45 (99) 1.19 (2.62)
EL-1000
EL-1000/4
150 12.0 0.25 35 5.91 0.47 0.010 1.38 111 (245) 0.44 (0.97)
ELH-150
ELH-150/4
200 12.0 0.25 51 7.87 0.47 0.010 2.01 111 (245) 0.58 (1.27)
ELH-200
ELH-200/4
225 12.0 0.25 60 8.86 0.47 0.010 2.36 111 (245) 0.62 (1.36)
ELH-225
ELH-225/4
250 12.0 0.25 65 9.84 0.47 0.010 2.56 111 (245) 0.67 (1.47)
ELH-250
ELH-250/4
300 12.0 0.25 80 11.81 0.47 0.010 3.15 111 (245) 0.78 (1.71)
ELH-300
ELH-300/4
360 12.0 0.25 100 14.17 0.47 0.010 3.94 111 (245) 0.93 (2.05)
ELH-360
ELH-360/4
450 12.0 0.25 125 17.72 0.47 0.010 4.92 111 (245) 1.04 (2.29)
ELH-450
ELH-450/4
600 12.0 0.25 175 23.62 0.47 0.010 6.89 111 (245) 1.40 (3.08)
ELH-600
ELH-600/4
610 12.0 0.25 180 24.02 0.47 0.010 7.09 111 (245) 1.41 (3.10)
ELH-610
ELH-610/4
750 12.0 0.25 225 29.53 0.47 0.010 8.86 111 (245) 1.72 (3.79)
ELH-750
ELH-750/4
1000 12.0 0.25 300 39.37 0.47 0.010 11.81 111 (245) 2.30 (5.07)
ELH-1000
ELH-1000/4
