MULTI LOCK STEEL TIE COATED

Applications

Suitable for corrosive climate condition, higher temperature and higher tensile strength requirement.

Key Industries:

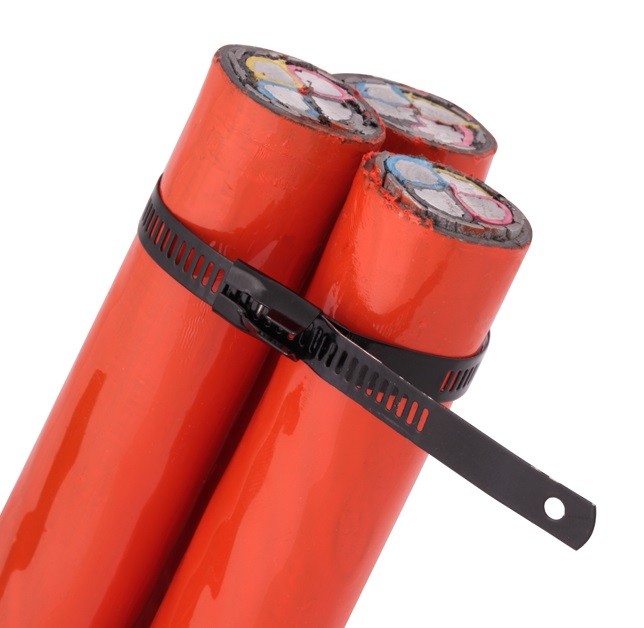

Multi Lock Steel Cable Tie Coated

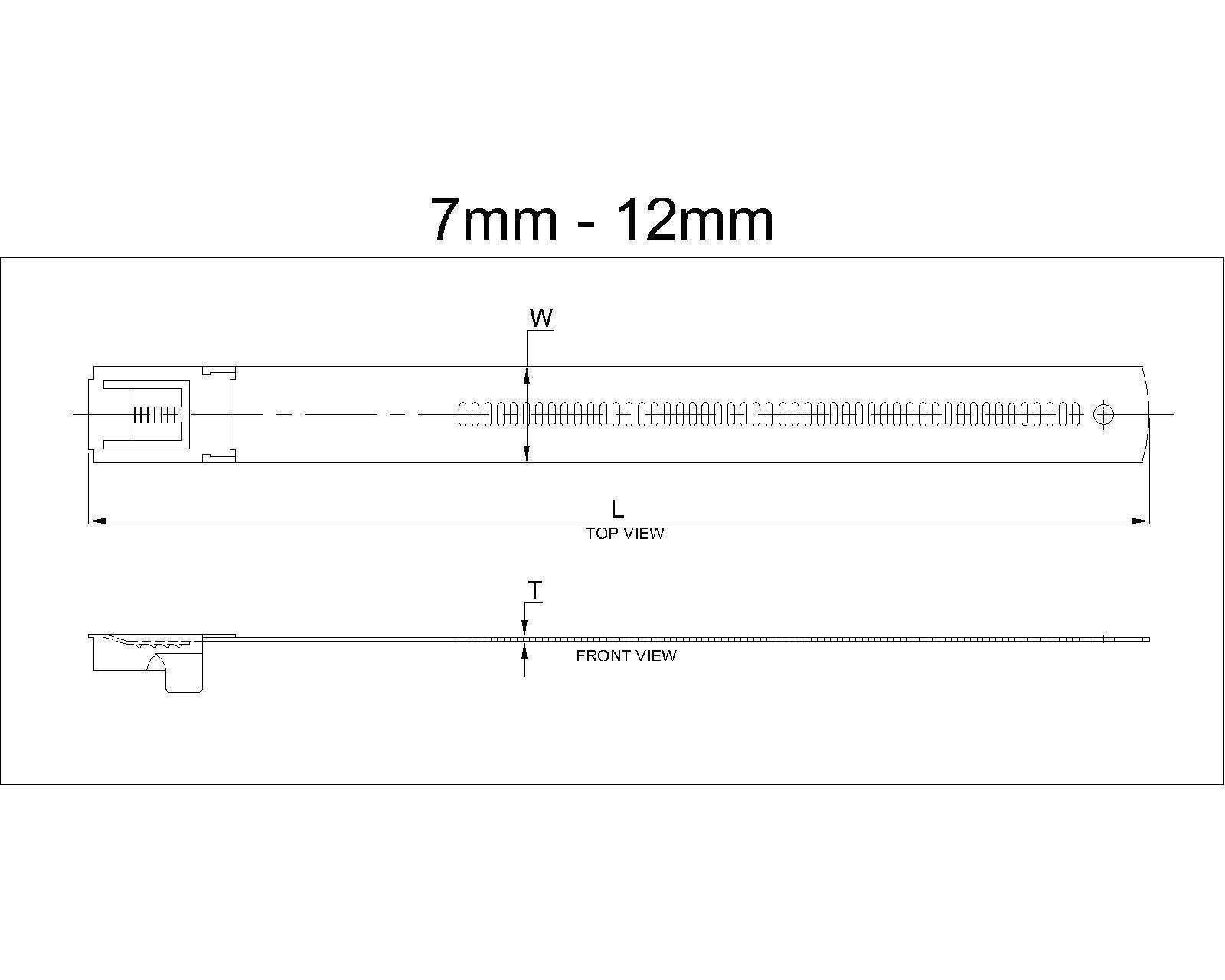

Multi Lock Steel Cable Tie Coated Line Drawing - Multi Lock Steel Tie Coated Multi Lock Steel Tie Coated

Material: Stainless Steel SS 316, SS 304
Coating:
* Black Polyster
* Black Nylon – Nylon
Operating Temp: -80°C to +150°C
Installation: By Tie tools (STT 1 & 2) & hook (STT 3)
Test Certificate:
Packing: 100 pcs bag
Unit: 100 Pcs/Pkt
* Multi lock steel ties are self locking with multiple locking systems designed for strong and secure hold
* It is designed to accommodate double wraps
* Smooth edges of ties provide utmost safety while installation
* Coating material is non-toxic, halogen free, low smoke and UV resistant
* Coated ties provides long term life in corrosive climate condition
Length (mm) Width (mm) Thickness (mm) Max. Bundle Dia (mm) Length (inch) Width (inch) Thickness (inch) Max. Bundle Dia (inch) Coating Type Loop Tensile Strength Kgs (lbs) G.W. /100 pcs Kgs. (Lbs.) SS 316 SS 304 PDF Drawing
150 7.0 0.40 35 5.91 0.28 0.016 1.38 Polyster 60 (132) 0.28 (0.61)
ML-150CP
ML-150/4CP
150 7.0 0.50 35 5.91 0.28 0.020 1.38 Nylon 60 (132) 0.28 (0.61)
ML-150CN
ML-150/4CN
225 7.0 0.40 60 8.86 0.28 0.016 2.36 Polyster 60 (132) 0.36 (0.79)
ML-225CP
ML-225/4CP
225 7.0 0.50 60 8.86 0.28 0.020 2.36 Nylon 60 (132) 0.36 (0.79)
ML-225CN
ML-225/4CN
300 7.0 0.40 80 11.81 0.28 0.016 3.15 Polyster 60 (132) 0.45 (0.99)
ML-300CP
ML-300/4CP
300 7.0 0.50 80 11.81 0.28 0.020 3.15 Nylon 60 (132) 0.45 (0.99)
ML-300CN
ML-300/4CN
450 7.0 0.40 125 17.72 0.28 0.016 4.92 Polyster 60 (132) 0.64 (1.41)
ML-450CP
ML-450/4CP
450 7.0 0.50 125 17.72 0.28 0.020 4.92 Nylon 60 (132) 0.64 (1.41)
ML-450CN
ML-450/4CN
610 7.0 0.40 180 24.02 0.28 0.016 7.09 Polyster 60 (132) 0.85 (1.87)
ML-610CP
ML-610/4CP
610 7.0 0.50 180 24.02 0.28 0.020 7.09 Nylon 60 (132) 0.85 (1.87)
ML-610CN
ML-610/4CN
150 12.0 0.40 35 5.91 0.47 0.016 1.38 Polyster 130 (287) 0.49 (1.08)
MLH-150CP
MLH-150/4CP
150 12.0 0.50 35 5.91 0.47 0.020 1.38 Nylon 130 (287) 0.49 (1.08)
MLH-150CN
MLH-150/4CN
225 12.0 0.40 60 8.86 0.47 0.016 2.36 Polyster 130 (287) 0.64 (1.41)
MLH-225CP
MLH-225/4CP
225 12.0 0.50 60 8.86 0.47 0.020 2.36 Nylon 130 (287) 0.64 (1.41)
MLH-225CN
MLH-225/4CN
300 12.0 0.40 80 11.81 0.47 0.016 3.15 Polyster 130 (287) 0.83 (1.82)
MLH-300CP
MLH-300/4CP
300 12.0 0.50 80 11.81 0.47 0.020 3.15 Nylon 130 (287) 0.83 (1.82)
MLH-300CN
MLH-300/4CN
450 12.0 0.40 125 17.72 0.47 0.016 4.92 Polyster 130 (287) 1.17 (2.57)
MLH-450CP
MLH-450/4CP
450 12.0 0.50 125 17.72 0.47 0.020 4.92 Nylon 130 (287) 1.17 (2.57)
MLH-450CN
MLH-450/4CN
610 12.0 0.40 180 24.02 0.47 0.016 7.09 Polyster 130 (287) 1.63 (3.59)
MLH-610CP
MLH-610/4CP
610 12.0 0.50 180 24.02 0.47 0.020 7.09 Nylon 130 (287) 1.63 (3.59)
MLH-610CN
MLH-610/4CN
