MULTI LOCK STEEL TIE UNCOATED

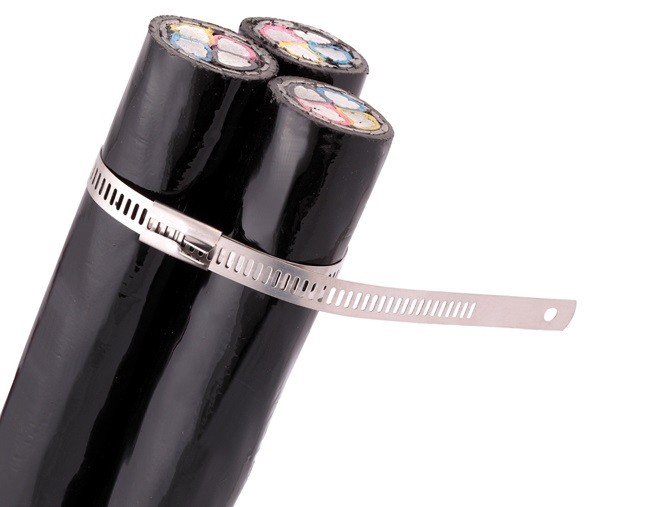

Applications

Suitable for corrosive climate condition, higher temperature and higher tensile strength requirement.

Key Industries:

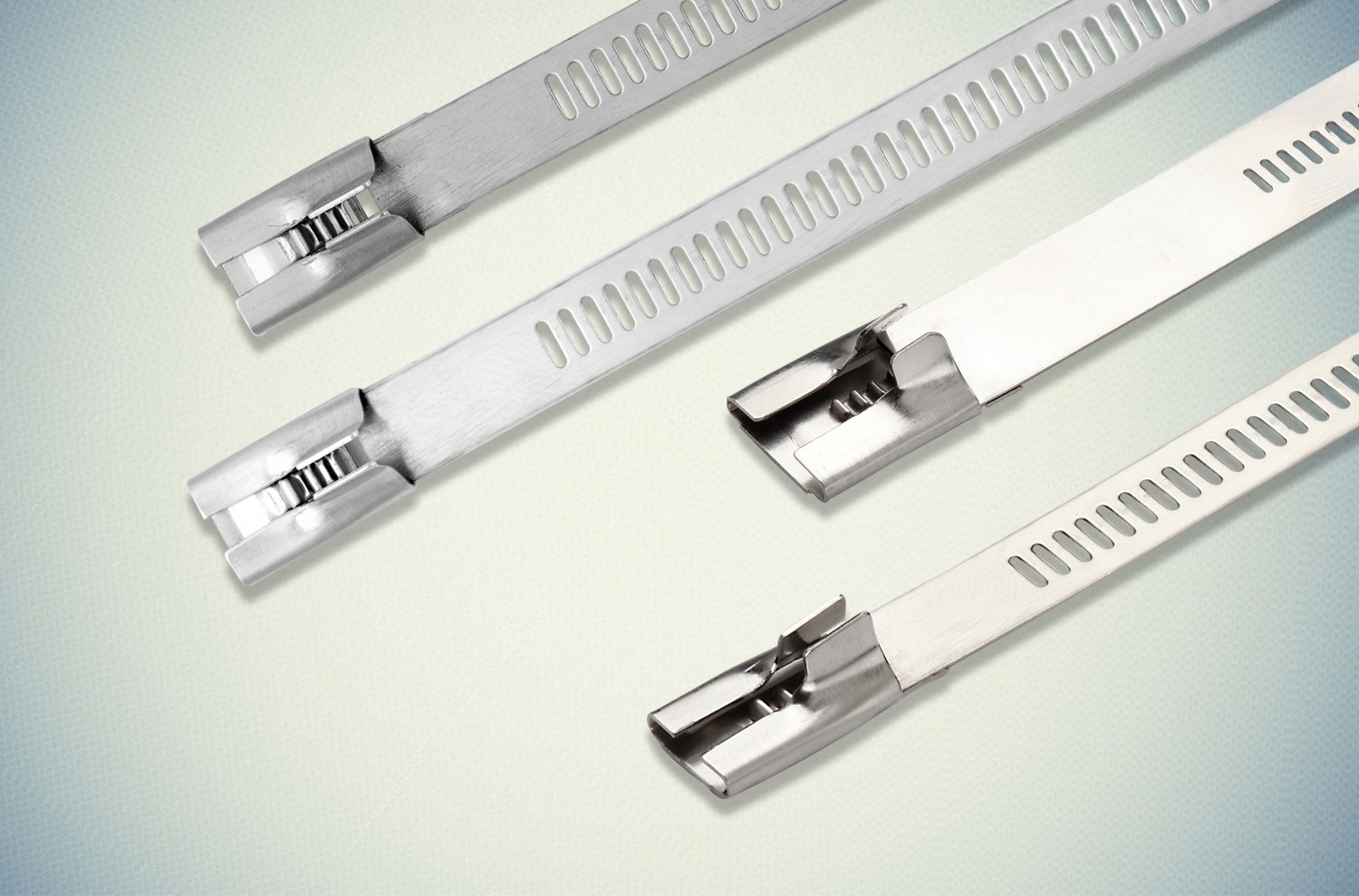

Uncoated Multi Lock Steel Tie

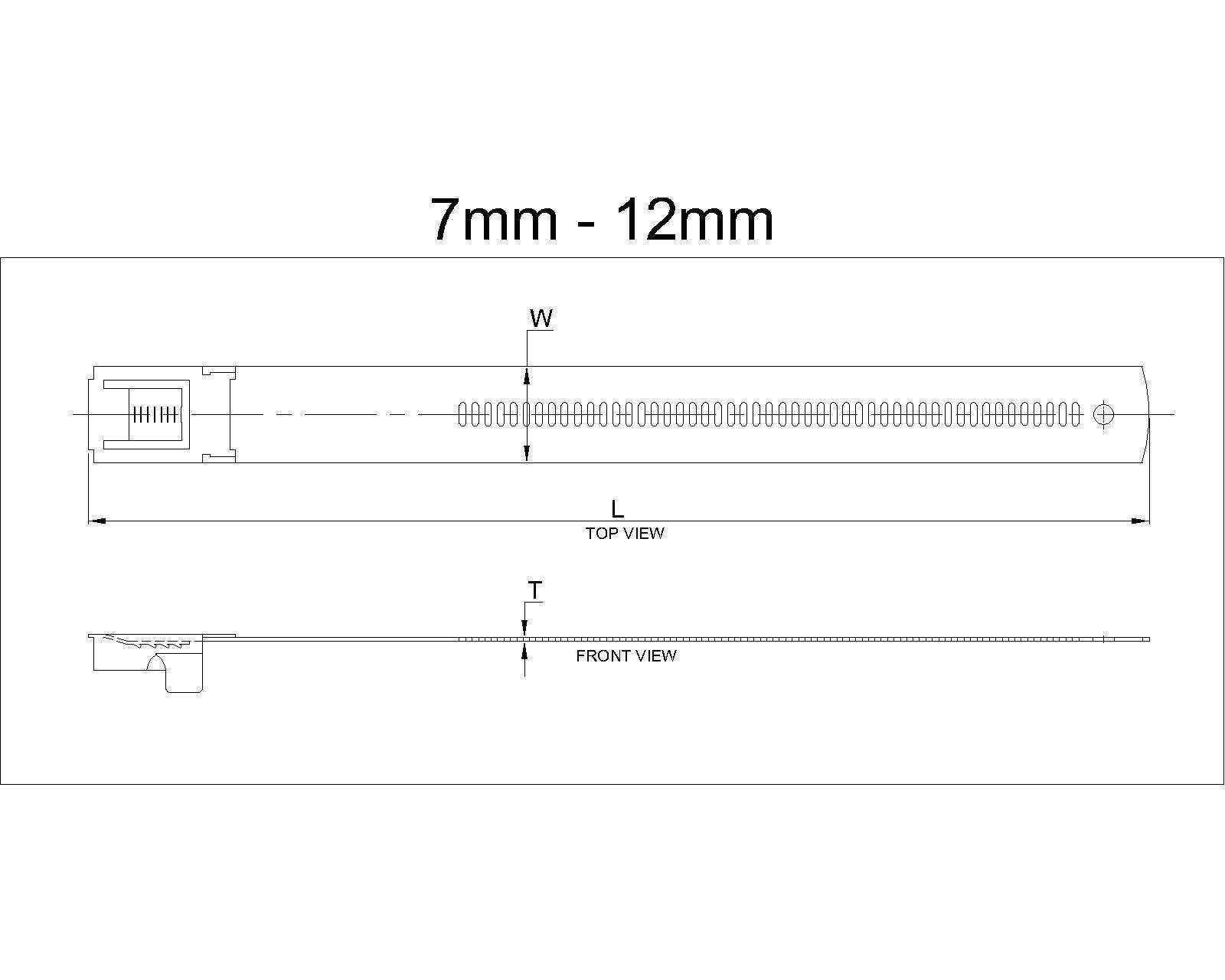

Uncoated Multi Lock Steel Tie Line Drawing - Multi Lock Steel Tie Uncoated Multi Lock Steel Tie Uncoated

Material: Stainless Steel SS 316, SS 304
Operating Temp: -80°C to +538°C
Installation: By hand, tie tools (STT1, STT2) & hook (STT 3)
Test Certificate:
Packing: 100 pcs bag
Unit: 100 Pcs/Pkt
* Multi lock steel ties are self locking with multiple locking systems designed for strong and secure hold
* It is designed to accommodate double wraps
* Smooth edges of ties provide utmost safety while installation
Length (mm) Width (mm) Thickness (mm) Max. Bundle Dia (mm) Length (inch) Width (inch) Thickness (inch) Max. Bundle Dia (inch) Loop Tensile Strength Kgs (lbs) G.W. /100 pcs Kgs. (Lbs.) SS 316 SS 304 PDF Drawing
150 7.0 0.25 35 5.91 0.28 0.010 1.38 60 (132) 0.26 (0.57)
ML-150
ML-150/4
225 7.0 0.25 60 8.86 0.28 0.010 2.36 60 (132) 0.33 (0.72)
ML-225
ML-225/4
300 7.0 0.25 80 11.81 0.28 0.010 3.15 60 (132) 0.42 (0.92)
ML-300
ML-300/4
450 7.0 0.25 125 17.72 0.28 0.010 4.92 60 (132) 0.59 (1.30)
ML-450
ML-450/4
610 7.0 0.25 180 24.02 0.28 0.010 7.09 60 (132) 0.78 (1.71)
ML-610
ML-610/4
150 12.0 0.25 35 5.91 0.47 0.010 1.38 130 (287) 0.45 (0.99)
MLH-150
MLH-150/4
225 12.0 0.25 60 8.86 0.47 0.010 2.36 130 (287) 0.59 (1.30)
MLH-225
MLH-225/4
300 12.0 0.25 80 11.81 0.47 0.010 3.15 130 (287) 0.76 (1.67)
MLH-300
MLH-300/4
450 12.0 0.25 125 17.72 0.47 0.010 4.92 130 (287) 1.07 (2.35)
MLH-450
MLH-450/4
610 12.0 0.25 180 24.02 0.47 0.010 7.09 130 (287) 1.49 (3.28)
MLH-610
MLH-610/4
