REUSABLE ECONOMY STEEL TIE COATED

Applications

Suitable for corrosive climate condition, higher temperature and higher tensile strength requirement

Key Industries:

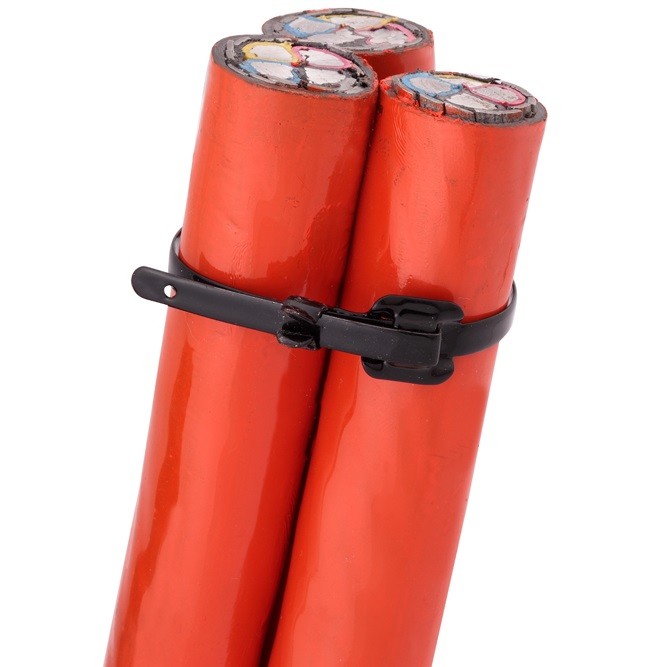

Economy Reusable Steel Tie Coated

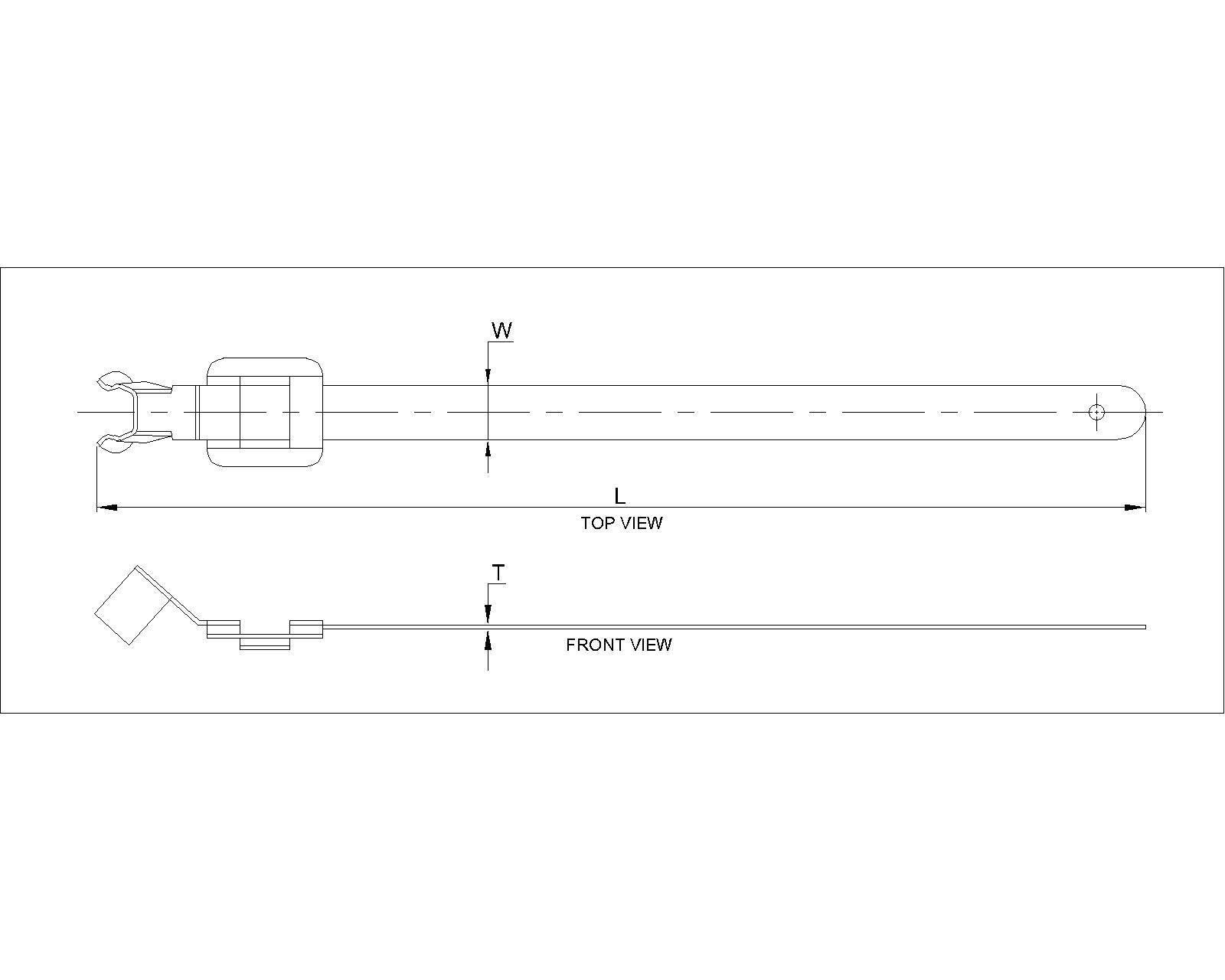

Economy Reusable Steel Tie Coated Line Drawing - Reusable Economy Steel Tie Coated Reusable Economy Steel Tie Coated

Material: Stainless Steel SS 316, SS 304
Coating:
* Black PPA – Thermoplastic
* Black Polyster– Polyster
* Black Nylon– Nylon
Operating Temp: Coated -80°C to +150°C
Installation: By hand tie tool (STT 4) and HOOK (STT3)
Test Certificate:
Packing: 100 pcs bag
Unit: 100 Pcs/Pkt
* Designed for low cost & low tensile applications
* Smooth edges of ties provide utmost safety while installation
* Coating material is Non-toxic, halogen free, low smoke and UV resistant
* Coated ties provides long term life in corrosive climate condition
Length (mm) Width (mm) Thickness (mm) Max. Bundle Dia (mm) Length (inch) Width (inch) Thickness (inch) Max. Bundle Dia (inch) Coating Type Loop Tensile Strength Kgs (lbs) G.W. /100 pcs Kgs. (Lbs.) Cat No. SS 316 Cat No. SS 304 PDF Drawing
150 5.0 0.70 30 5.91 0.20 0.03 1.18 Polyester 120 (265) 0.41 (0.90)
RTE-150CP
RTE-150/4CP
150 5.0 1.10 30 5.91 0.20 0.04 1.18 Thermoplastics 120 (265) 0.42 (0.92)
RTE-150CT
RTE-150/4CT
150 5.0 0.70 30 5.91 0.20 0.03 1.18 Nylon 120 (265) 0.41 (0.90)
RTE-150CN
RTE-150/4CN
230 5.0 0.70 54 9.06 0.20 0.03 2.13 Polyester 120 (265) 0.59 (1.30)
RTE-230CP
RTE-230/4CP
230 5.0 1.10 54 9.06 0.20 0.04 2.13 Thermoplastics 120 (265) 0.60 (1.32)
RTE-230CT
RTE-230/4CT
230 5.0 0.70 54 9.06 0.20 0.03 2.13 Nylon 120 (265) 0.59 (1.30)
RTE-230CN
RTE-230/4CN
330 5.0 0.70 85 12.99 0.20 0.03 3.35 Polyester 120 (265) 0.81 (1.78)
RTE-330CP
RTE-330/4CP
330 5.0 1.10 85 12.99 0.20 0.04 3.35 Thermoplastics 120 (265) 0.82 (1.80)
RTE-330CT
RTE-330/4CT
330 5.0 0.70 85 12.99 0.20 0.03 3.35 Nylon 120 (265) 0.81 (1.78)
RTE-330CN
RTE-330/4CN
450 5.0 0.70 125 17.72 0.20 0.03 4.92 Polyester 120 (265) 1.07 (2.35)
RTE-450CP
RTE-450/4CP
450 5.0 1.10 125 17.72 0.20 0.04 4.92 Thermoplastics 120 (265) 1.08 (2.38)
RTE-450CT
RTE-450/4CT
450 5.0 0.70 125 17.72 0.20 0.03 4.92 Nylon 120 (265) 1.07 (2.35)
RTE-450CN
RTE-450/4CN
610 5.0 0.70 175 24.02 0.20 0.03 6.89 Polyester 120 (265) 1.42 (3.13)
RTE-610CP
RTE-610/4CP
610 5.0 1.10 175 24.02 0.20 0.04 6.89 Thermoplastics 120 (265) 1.44 (3.17)
RTE-610CT
RTE-610/4CT
610 5.0 0.70 175 24.02 0.20 0.03 6.89 Nylon 120 (265) 1.42 (3.13)
RTE-610CN
RTE-610/4CN
762 5.0 0.70 220 30.00 0.20 0.03 8.66 Polyester 120 (265) 1.75 (3.85)
RTE-762CP
RTE-762/4CP
762 5.0 1.10 220 30.00 0.20 0.04 8.66 Thermoplastics 120 (265) 1.77 (3.90)
RTE-762CT
RTE-762/4CT
762 5.0 0.70 220 30.00 0.20 0.03 8.66 Nylon 120 (265) 1.75 (3.85)
RTE-762CN
RTE-762/4CN
914 5.0 0.70 270 35.98 0.20 0.03 10.63 Polyester 120 (265) 2.08 (4.58)
RTE-914CP
RTE-914/4CP
914 5.0 1.10 270 35.98 0.20 0.04 10.63 Thermoplastics 120 (265) 2.10 (4.62)
RTE-914CT
RTE-914/4CT
914 5.0 0.70 270 35.98 0.20 0.03 10.63 Nylon 120 (265) 2.08 (4.58)
RTE-914CN
RTE-914/4CN
