REUSABLE STEEL TIE COATED

Applications

Suitable for corrosive climate condition, higher temperature and higher tensile strength requirement.

Key Industries:

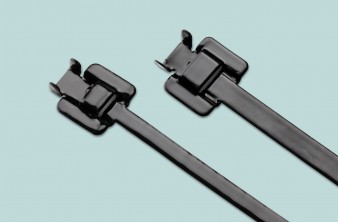

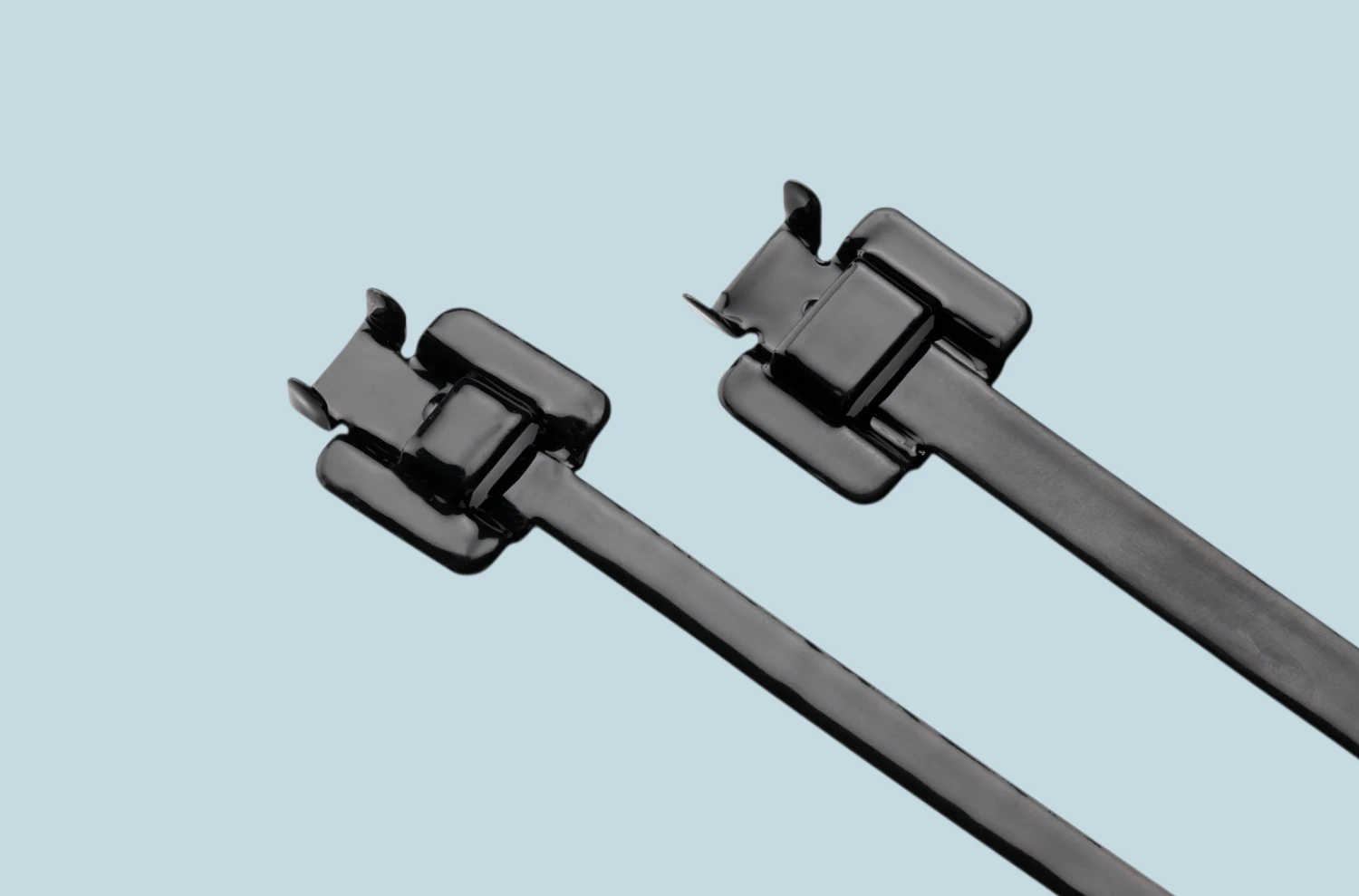

Reusable Steel Cable Tie Coated

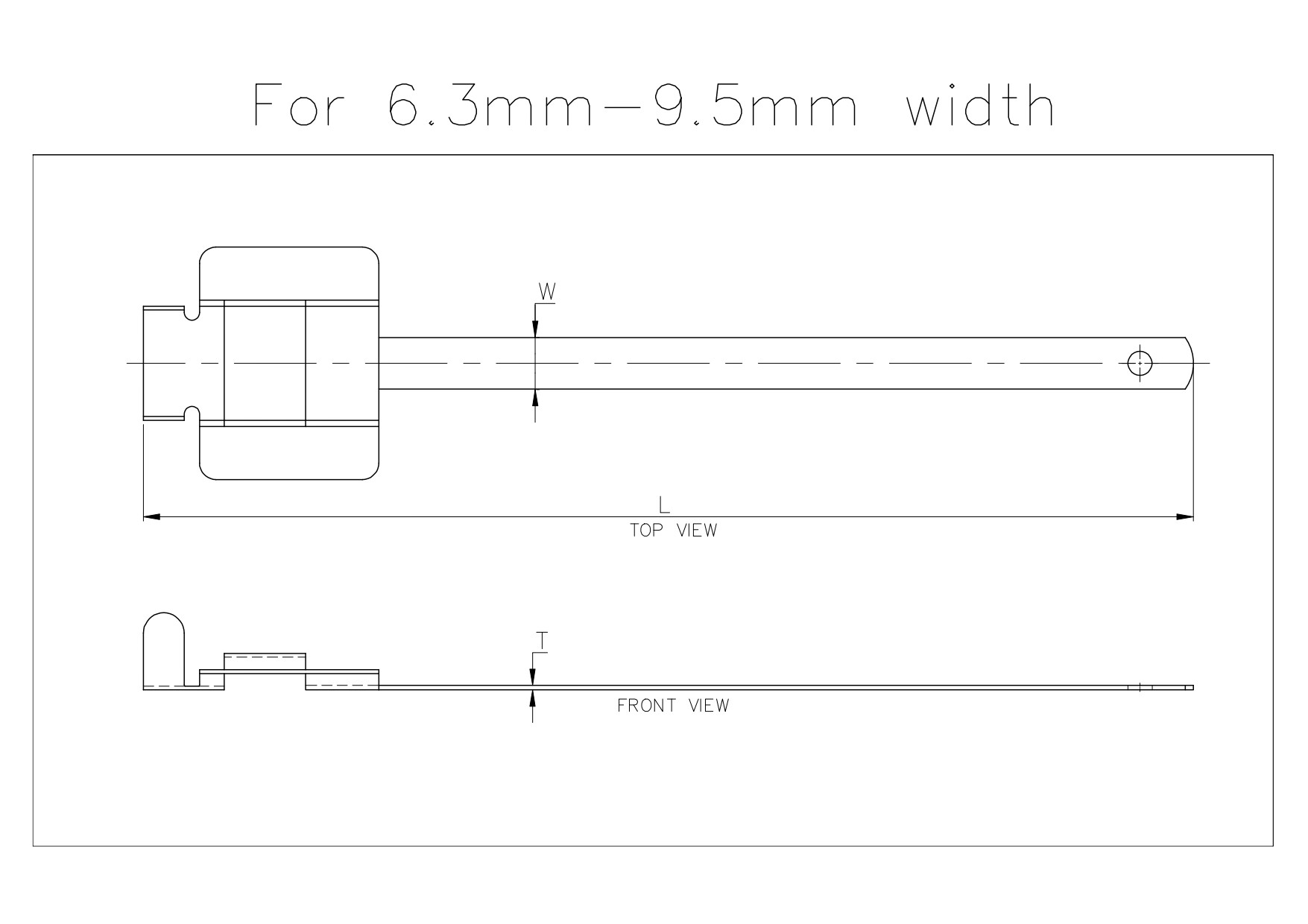

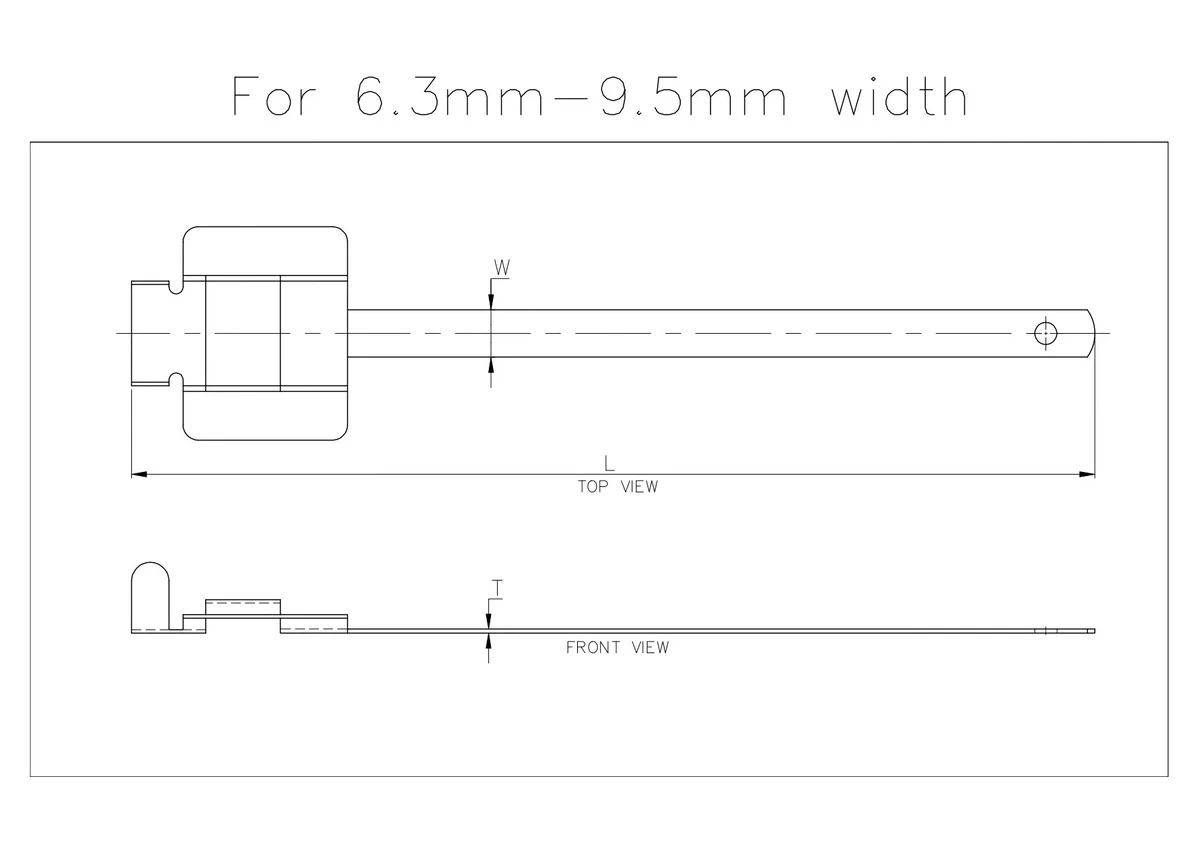

Reusable Steel Cable Tie Coated Line Drawing - Reusable Steel Tie Coated Reusable Steel Tie Coated

Material: Stainless Steel SS 316, SS 304
Coating Material:
* Black PPA – Thermoplastic
* Black Polyster– Polyster
* Black Nylon– Nylon
Operating Temp:  -80°C  to +150°C
Installation: By hand or tie tools (STT 4) & hook (STT 3)
Test Certificate:
Packing: 100 pcs bag
Unit: 100 Pcs/Pkt
* Reusable steel ties are designed for quick fastening of cables, tubes, pipes etc. & also can be unfastened for reuse
* It is designed to accommodate double wraps.
* Smooth edges of ties provide utmost safety while installation
* Coating material is non-toxic, halogen free, low smoke and UV resistant
* Coated ties provides long term life in corrosion climate condition
Length (mm) Width (mm) Thickness (mm) Max. Bundle Dia (mm) Length (inch) Width (inch) Thickness (inch) Max. Bundle Dia (inch) Coating Type Loop Tensile Strength Kgs (lbs) G.W. /100 pcs Kgs (Lbs.) SS 316 SS 304 PDF Drawing
152 6.3 0.70 32 5.98 0.25 0.03 1.26 Polyster 149 (329) 0.58 (1.27)
RT-152CP
RT-152/4CP
152 6.3 1.1 32 5.98 0.25 0.04 1.26 Thermoplastic 149 (329) 0.60 (1.32)
RT-152CT
RT-152/4CT
152 6.3 0.70 32 5.98 0.25 0.03 1.26 Nylon 149 (329) 0.58 (1.27)
RT-152CN
RT-152/4CN
229 6.3 0.70 57 9.02 0.25 0.03 2.24 Polyster 149 (329) 0.80 (1.76)
RT-229CP
RT-229/4CP
229 6.3 1.1 57 9.02 0.25 0.04 2.24 Thermoplastic 149 (329) 0.82 (1.80)
RT-229CT
RT-229/4CT
229 6.3 0.70 57 9.02 0.25 0.03 2.24 Nylon 149 (329) 0.80 (1.76)
RT-229CN
RT-229/4CN
305 6.3 0.70 81 12.01 0.25 0.03 3.19 Polyster 149 (329) 0.98 (2.16)
RT-305CP
RT-305/4CP
305 6.3 1.1 81 12.01 0.25 0.04 3.19 Thermoplastic 149 (329) 1.01 (2.22)
RT-305CT
RT-305/4CT
305 6.3 0.70 81 12.01 0.25 0.03 3.19 Nylon 149 (329) 0.98 (2.16)
RT-305CN
RT-305/4CN
457 6.3 0.70 130 17.99 0.25 0.03 5.12 Polyster 149 (329) 1.38 (3.04)
RT-457CP
RT-457/4CP
457 6.3 1.1 130 17.99 0.25 0.04 5.12 Thermoplastic 149 (329) 1.41 (3.10)
RT-457CT
RT-457/4CT
457 6.3 0.70 130 17.99 0.25 0.03 5.12 Nylon 149 (329) 1.38 (3.04)
RT-457CN
RT-457/4CN
500 6.3 0.70 143 19.69 0.25 0.03 5.63 Polyster 149 (329) 1.66 (3.65)
RT-500CP
RT-500/4CP
500 6.3 1.1 143 19.69 0.25 0.04 5.63 Thermoplastic 149 (329) 1.71 (3.76)
RT-500CT
RT-500/4CT
500 6.3 0.70 143 19.69 0.25 0.03 5.63 Nylon 149 (329) 1.66 (3.65)
RT-500CN
RT-500/4CN
610 6.3 0.70 178 24.02 0.25 0.03 7.01 Polyster 149 (329) 1.84 (4.05)
RT-610CP
RT-610/4CP
610 6.3 1.1 178 24.02 0.25 0.04 7.01 Thermoplastic 149 (329) 1.89 (4.16)
RT-610CT
RT-610/4CT
610 6.3 0.70 178 24.02 0.25 0.03 7.01 Nylon 149 (329) 1.84 (4.05)
RT-610CN
RT-610/4CN
152 9.5 0.70 32 5.98 0.37 0.03 1.26 Polyster 181 (399) 0.90 (1.98)
RTH-152CP
RTH-152/4CP
152 9.5 1.1 32 5.98 0.37 0.04 1.26 Thermoplastic 181 (399) 0.93 (2.05)
RTH-152CT
RTH-152/4CT
152 9.5 0.70 32 5.98 0.37 0.03 1.26 Nylon 181 (399) 0.90 (1.98)
RTH-152CN
RTH-152/4CN
229 9.5 0.70 57 9.02 0.37 0.03 2.24 Polyster 181 (399) 1.20 (2.64)
RTH-229CP
RTH-229/4CP
229 9.5 1.1 57 9.02 0.37 0.04 2.24 Thermoplastic 181 (399) 1.24 (2.73)
RTH-229CT
RTH-229/4CT
229 9.5 0.70 57 9.02 0.37 0.03 2.24 Nylon 181 (399) 1.20 (2.64)
RTH-229CN
RTH-229/4CN
305 9.5 0.70 81 12.01 0.37 0.03 3.19 Polyster 181 (399) 1.50 (3.30)
RTH-305CP
RTH-305/4CP
305 9.5 1.1 81 12.01 0.37 0.04 3.19 Thermoplastic 181 (399) 1.55 (3.41)
RTH-305CT
RTH-305/4CT
305 9.5 0.70 81 12.01 0.37 0.03 3.19 Nylon 181 (399) 1.50 (3.30)
RTH-305CN
RTH-305/4CN
457 9.5 0.70 130 17.99 0.37 0.03 5.12 Polyster 181 (399) 2.08 (4.25)
RTH-457CP
RTH-457/4CP
457 9.5 1.1 130 17.99 0.37 0.04 5.12 Thermoplastic 181 (399) 2.14 (4.71)
RTH-457CT
RTH-457/4CT
457 9.5 0.70 130 17.99 0.37 0.03 5.12 Nylon 181 (399) 2.08 (4.25)
RTH-457CN
RTH-457/4CN
500 9.5 0.70 143 19.69 0.37 0.03 5.63 Polyster 181 (399) 2.19 (4.82)
RTH-500CP
RTH-500/4CP
500 9.5 1.1 143 19.69 0.37 0.04 5.63 Thermoplastic 181 (399) 2.25 (4.96)
RTH-500CT
RTH-500/4CT
500 9.5 0.70 143 19.69 0.37 0.03 5.63 Nylon 181 (399) 2.19 (4.82)
RTH-500CN
RTH-500/4CN
610 9.5 0.70 178 24.02 0.37 0.03 7.01 Polyster 181 (399) 2.60 (5.73)
RTH-610CP
RTH-610/4CP
610 9.5 1.1 178 24.02 0.37 0.04 7.01 Thermoplastic 181 (399) 2.67 (5.88)
RTH-610CT
RTH-610/4CT
610 9.5 0.70 178 24.02 0.37 0.03 7.01 Nylon 181 (399) 2.60 (5.73)
RTH-610CN
RTH-610/4CN
762 9.5 0.70 227 30.00 0.37 0.03 8.94 Polyster 181 (399) 3.35 (7.38)
RTH-762CP
RTH-762/4CP
762 9.5 1.1 227 30.00 0.37 0.04 8.94 Thermoplastic 181 (399) 3.45 (7.60)
RTH-762CT
RTH-762/4CT
762 9.5 0.70 227 30.00 0.37 0.03 8.94 Nylon 181 (399) 3.35 (7.38)
RTH-762CN
RTH-762/4CN
914 9.5 0.70 275 35.98 0.37 0.03 10.83 Polyster 181 (399) 3.72 (8.20)
RTH-914CP
RTH-914/4CP
914 9.5 1.1 275 35.98 0.37 0.04 10.83 Thermoplastic 181 (399) 3.82 (8.42)
RTH-914CT
RTH-914/4CT
914 9.5 0.70 275 35.98 0.37 0.03 10.83 Nylon 181 (399) 3.72 (8.20)
RTH-914CN
RTH-914/4CN
