SLIDE ON CARRIER RAILS & SLIDE ON STEEL MARKERS

Applications

Cable identification in corrosive climatic condition

Key Industries:

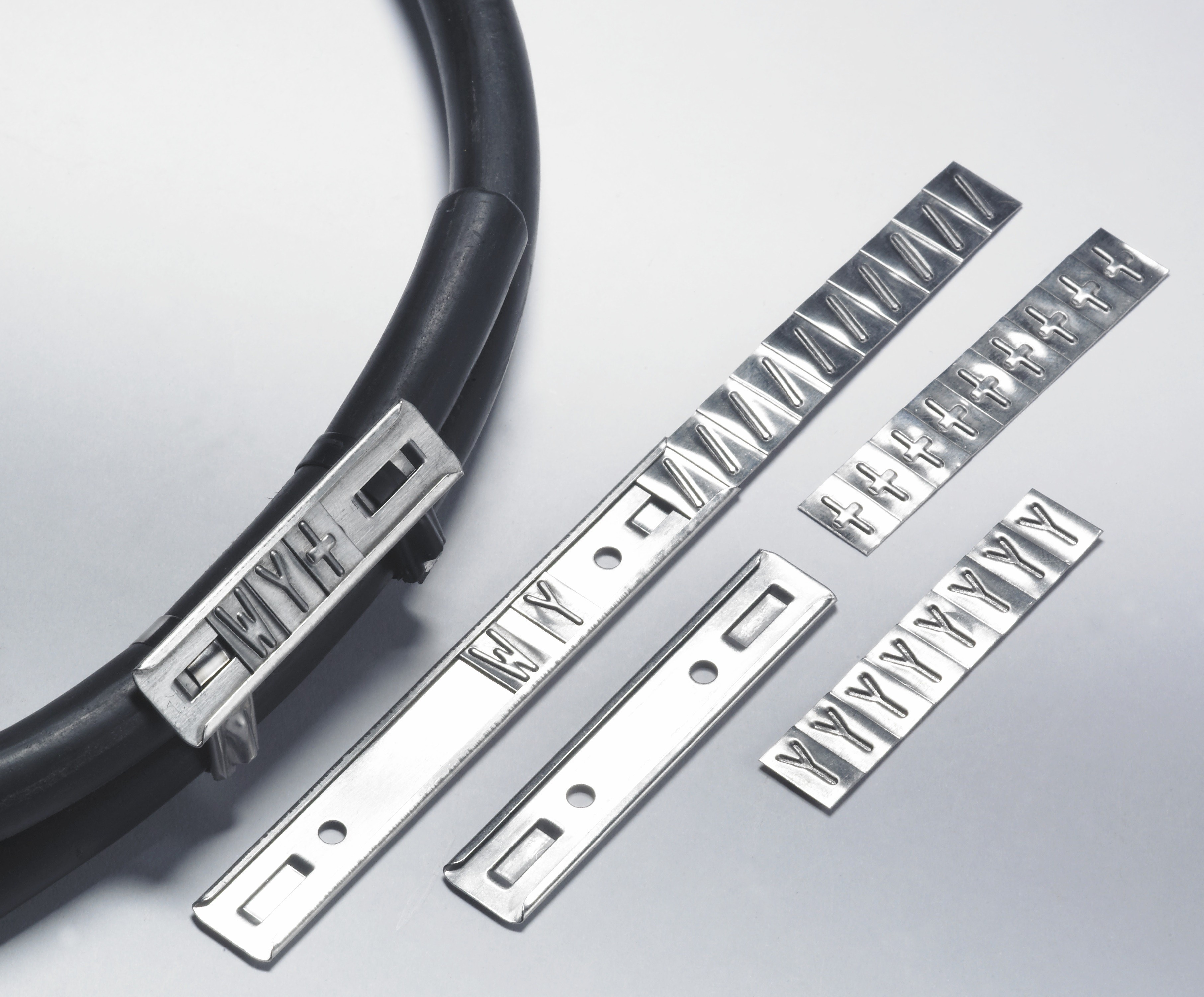

Slide on Steel Markers

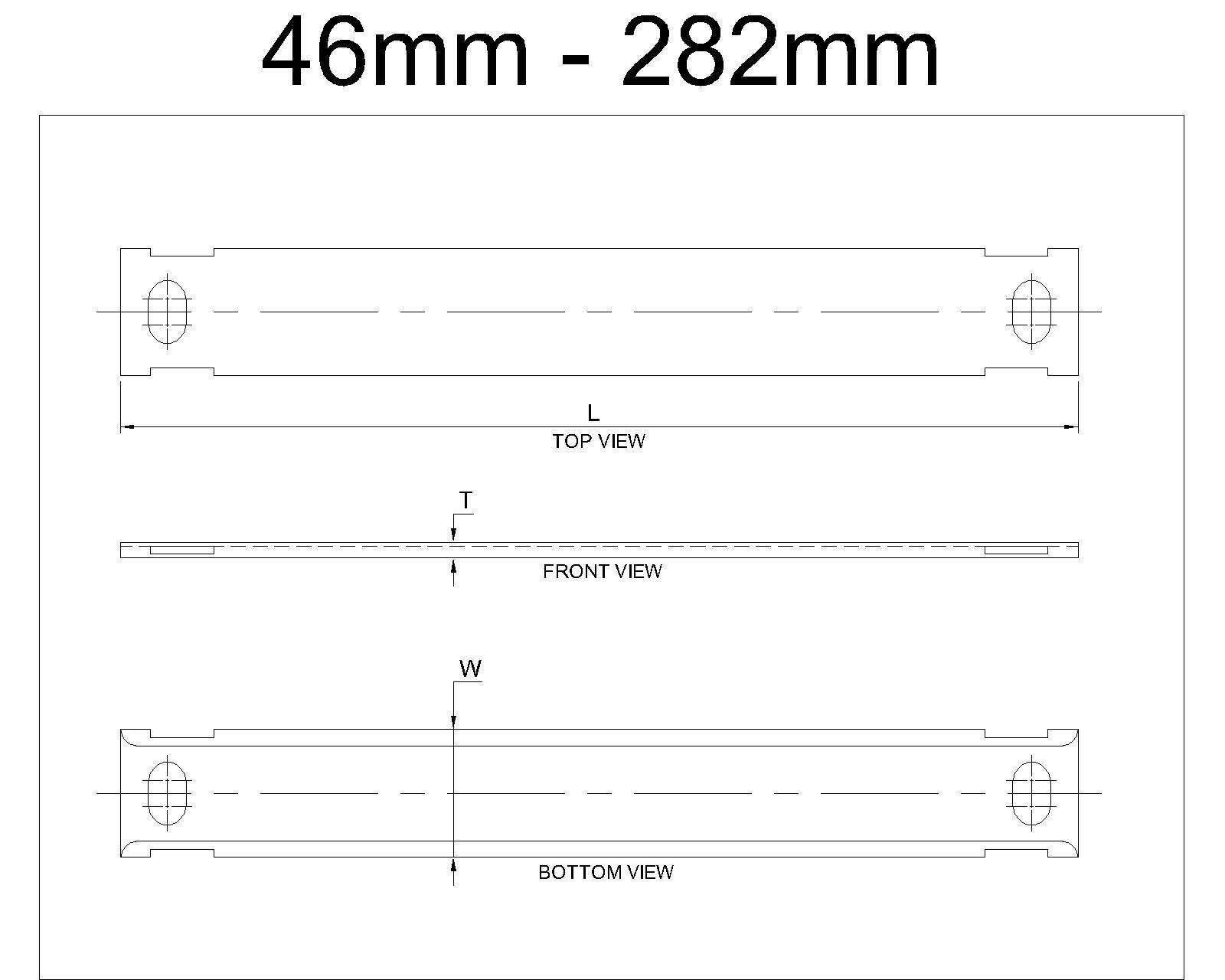

Slide on Steel Markers Line Drawing - Slide on Carrier Rails & Steel Markers Slide on Carrier Rails & Slide on Steel Markers

Material: Stainless Steel SS 316
Operating Temp: -80°C to +538°C
Packing: 100 pcs bag
Unit: 100 Pcs/Pkt

* The unique slide – on design enables quick & easy assembly. (Available in different length with screw mounting  hole  Ø 3 m).
* Slide – on premarked marker strip is required to be slided inside the carrier rails & break – off from the precut divisions with thumb pressure as per the marking requirement.
* Slide – on marker strips are available in alphabets, numbers & symbols like (0 to 9 / A to Z / +, -, /, . ,Blank, ╧)
Length (mm) Length (Inch) Mounting Hole Centers (mm) Accomodates Max. No. of Markers/Rail (Pcs) G.W. /100 pcs Kgs. (Lbs.) Width (mm) Cat No. SS 316 Cat No. SS 304 PDF Drawing
46 1.81 11 5 0.14 (0.30) 11
SCR-46
SCR-46/4
56 2.20 21 6 0.17 (0.37) 11
SCR-56
SCR-56/4
82 3.23 47 11 0.26 (0.57) 11
SCR-82
SCR-82/4
106 4.17 71 15 0.34 (0.75) 11
SCR-106
SCR-106/4
286 11.26 250 44 0.92 (2.02) 11
SCR-286
SCR-286/4
