NYLON SCREW MOUNTING SUPPORT

Applications

For supporting & holding cable /wire bunch

Key Industries:

UL Approved Screw Mounting Support

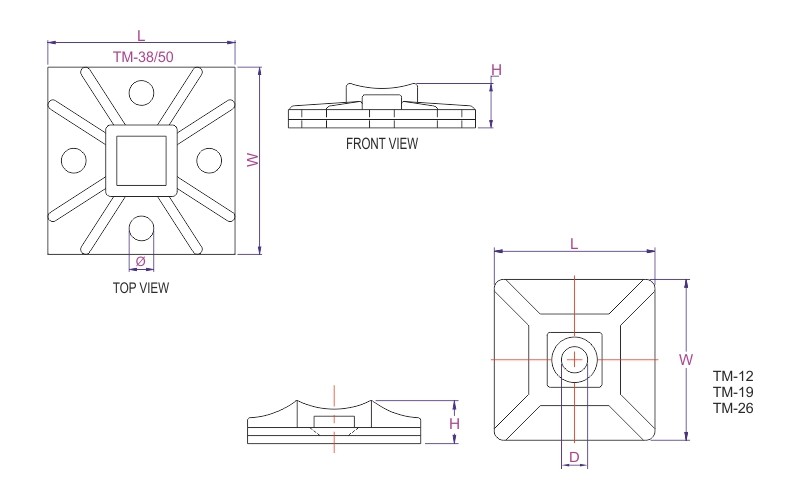

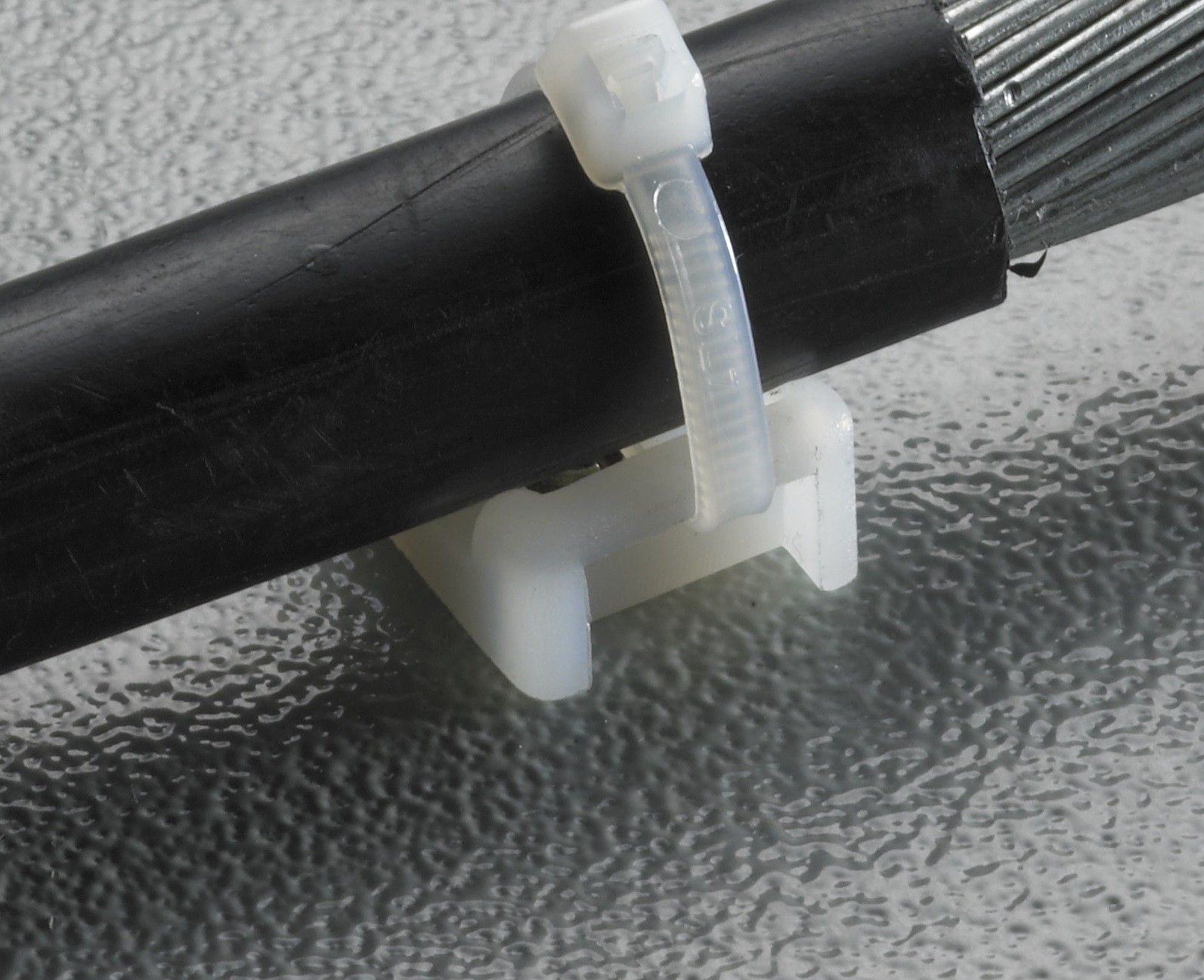

UL Approved Screw Mounting Support Line Drawing - Screw Mounting Support End Application - Screw Mounting Support

Material: Nylon 6: UL 94 V-2
Color: Natural
Operating Temp: -40°C to +85°C
Unit: 100 Pcs/Pkt

Tolerance:
Length: ±1mm
Width: ±0.5mm
Height: ±0.5mm
Slot: ±1mm
Mounting Hole: ±0.6mm

* Its unique design provides maximum stability to the wire bundles.
* Hold wire / cables bundles and help to routing of the same as desired
* Allow multiple cable to run in parallel (NS-8, 8A, 8B)

Length L (mm) Width W (mm) Height W (mm) Slot Size L x W (mm) Mounting Hole Dia (mm) For Cable Tie width (mm) Cat No. PDF Drawing
15.5 10.2 7 6 x 1.2 4.5 3.6
NS-3
16.5 11.5 7.2 7.5 x 1.5 4.5 4.8
NS-4
22 17.5 10 11.8 x 2.5 4.5 7.8/8.1/9.1
NS-9
41.2 18.4 16 14.2 x 3.5 5.7 12.5
NS-12
15.5 10.2 6.8 5.8 x 1.20 4.6 3.6
NS-3A
15.5 10.2 6.8 5.8 x 1.20 3.8 3.6
NS-3B
19 19 4.8 4.5 x 1.3 5 3.6
NS-19
21.9 17.35 9.5 11 x 2.30 5.1 7.8/8.1//9.1
NS-9A
21.9 17.35 9.5 11 x 2.30 6.6 7.8/8.1//9.1
NS-9B
25.5 25.5 5.2 6.2 x 1.4 4.5 4.8
NS-26
