PUSH MOUNT HOLDER

Applications

For supporting & holding cable / wire bunch with cable ties & without use of screw or adhesive tape

Key Industries:

Push Mount Tie Holder

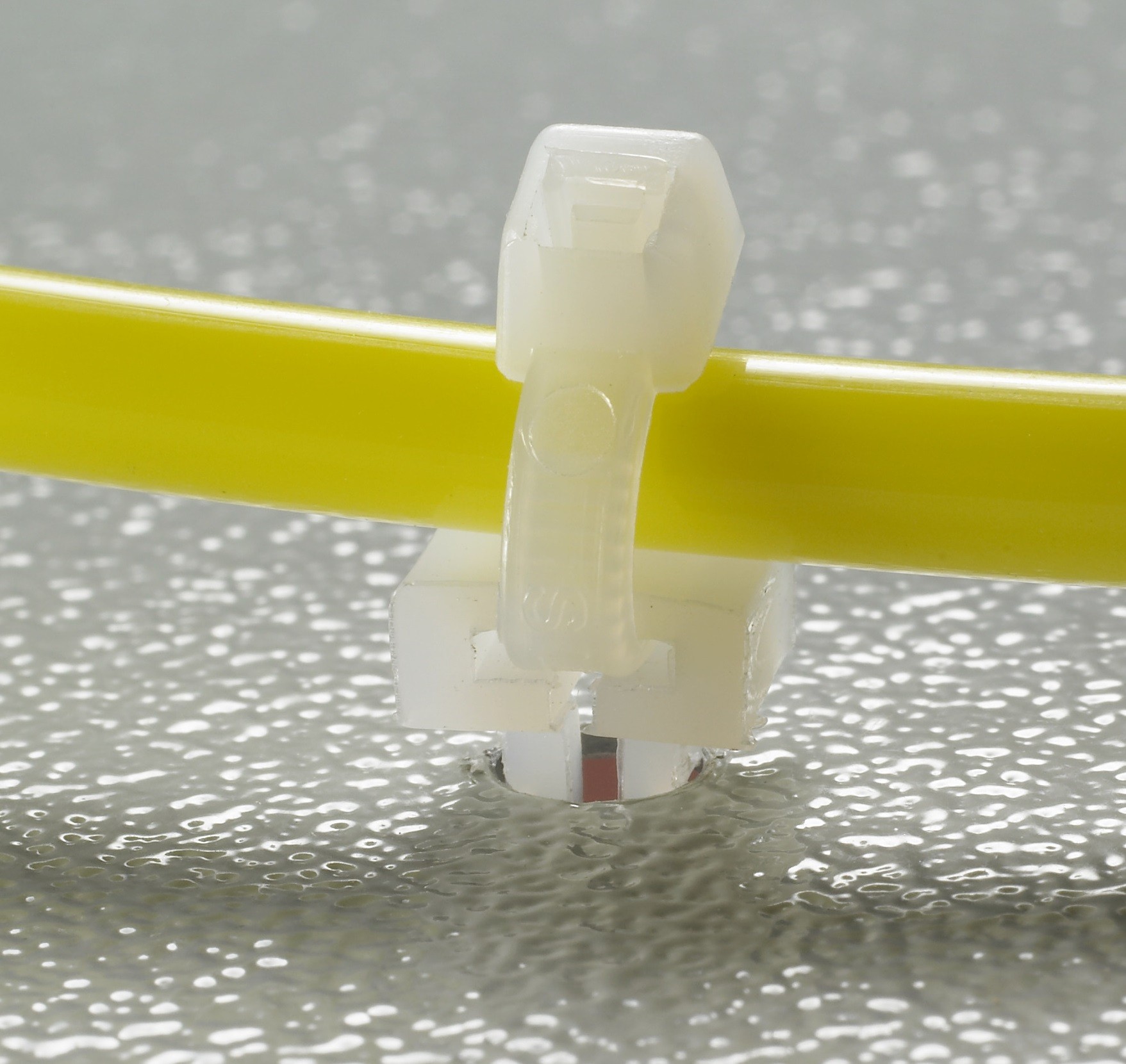

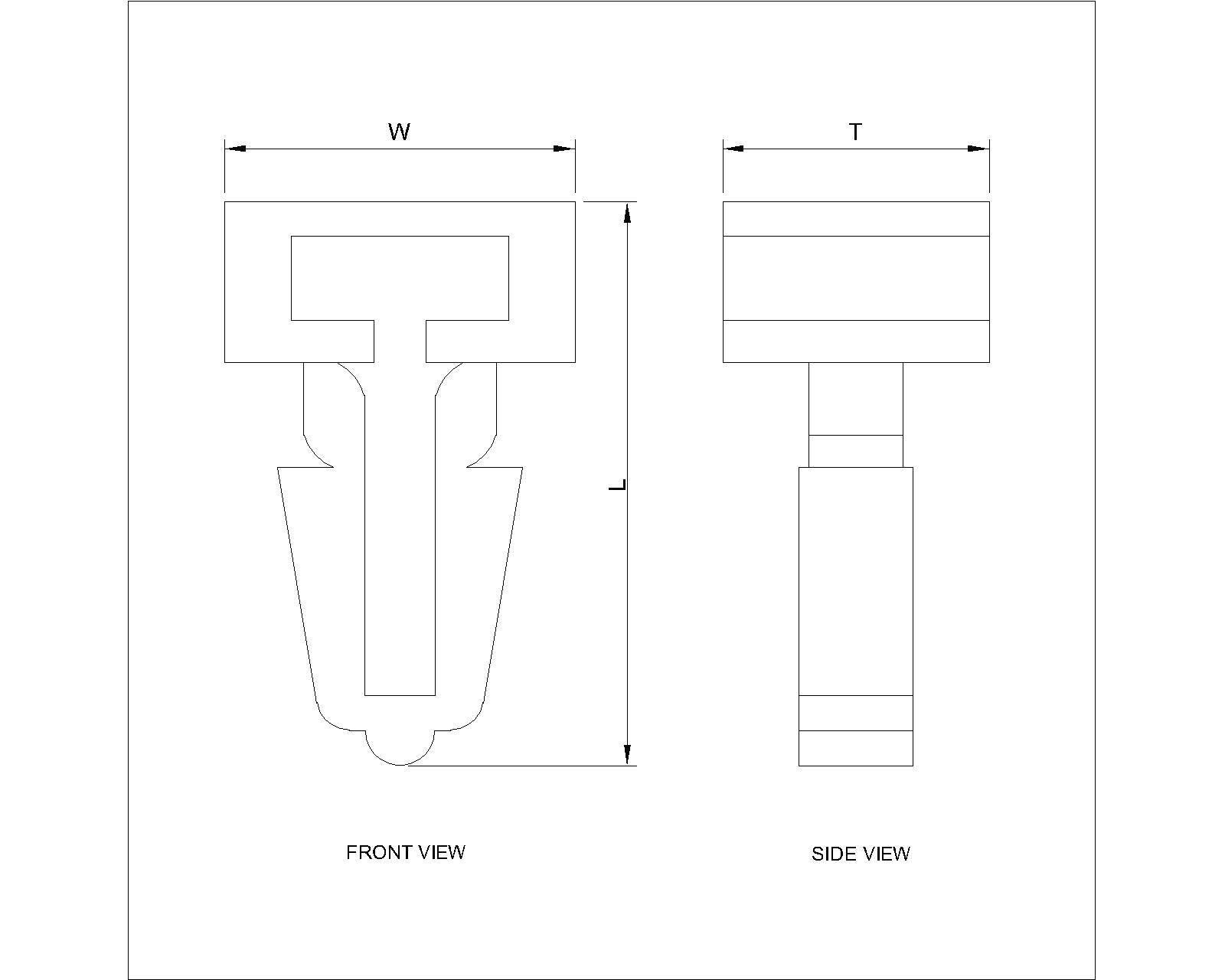

Push Mount Tie Holder Line Drawing - Push Mount Holder End Application - Push Mount Holder

Material: Nylon 6: UL 94 V-2
Color: Natural
Operating Temp: -40°C to +85°C
Packing: 100 Pcs. bag
Unit: 100 Pcs/Pkt

Tolerance:
Length: ±1mm
Width: ±0.5mm
Slot L x H: ±1mm
W1 Width: ±0.1mm
Mfg. Hole: ±0.6mm

* Its eliminates the use of screws for mounting on the surface with predrilled hole
* Used where more secured mount is require
Size (mm) L Lenght (mm) W Width (mm) L x H Slot (mm) W1 Width (mm) Mfg. Hole (mm) For Cable Tie Width Cat No. PDF Drawing
4.8 Push Mount Tie Holder 14.65 8.10 5.75 x 1.45 6.8 4.8 4.8
NSP-4
