REVERSE LOCKING PCB SUPPORT

Applications

This supports are made to use between PCB to PCB or PCB to chassis as a spacer

Key Industries:

PCB Support Reverse Locking

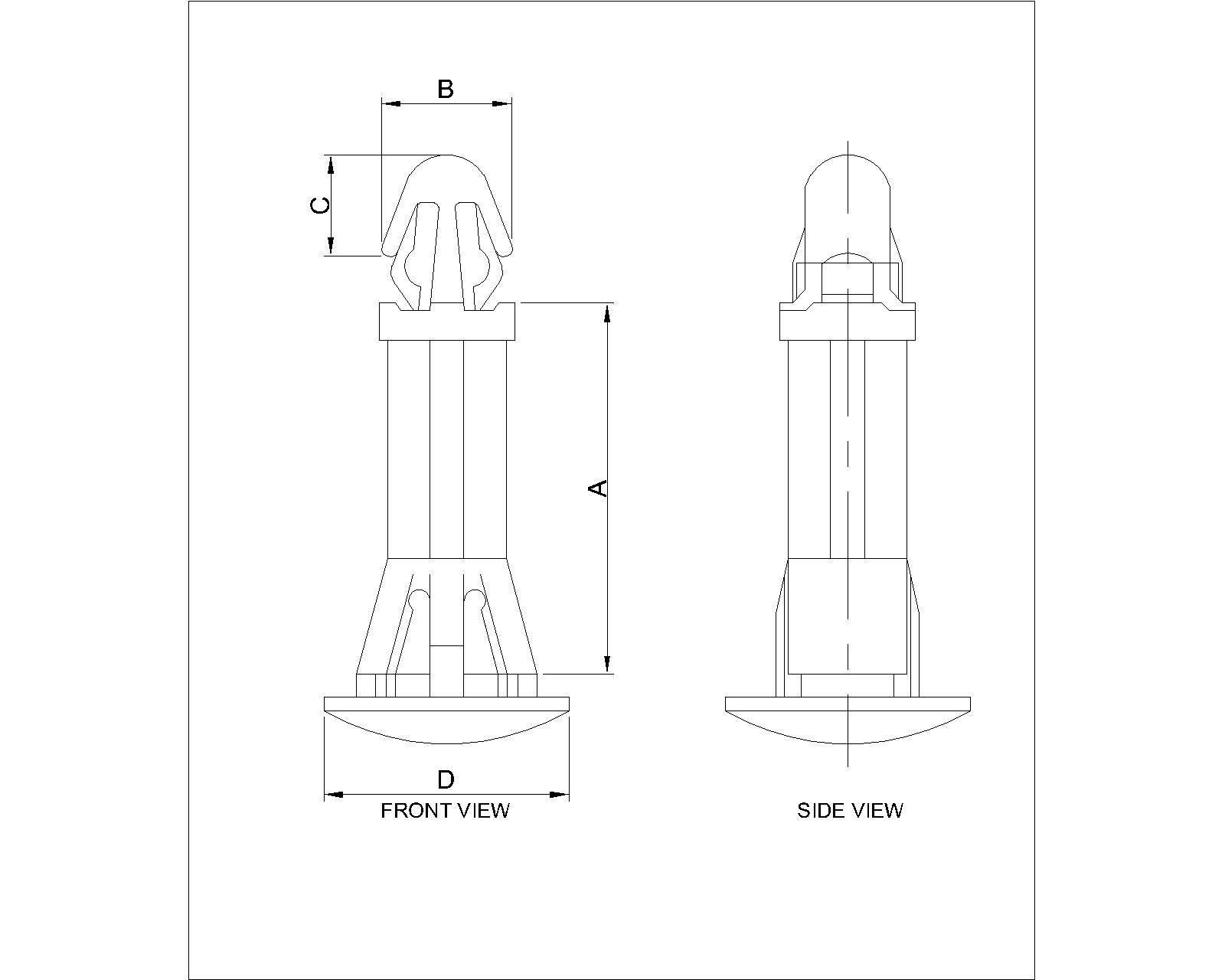

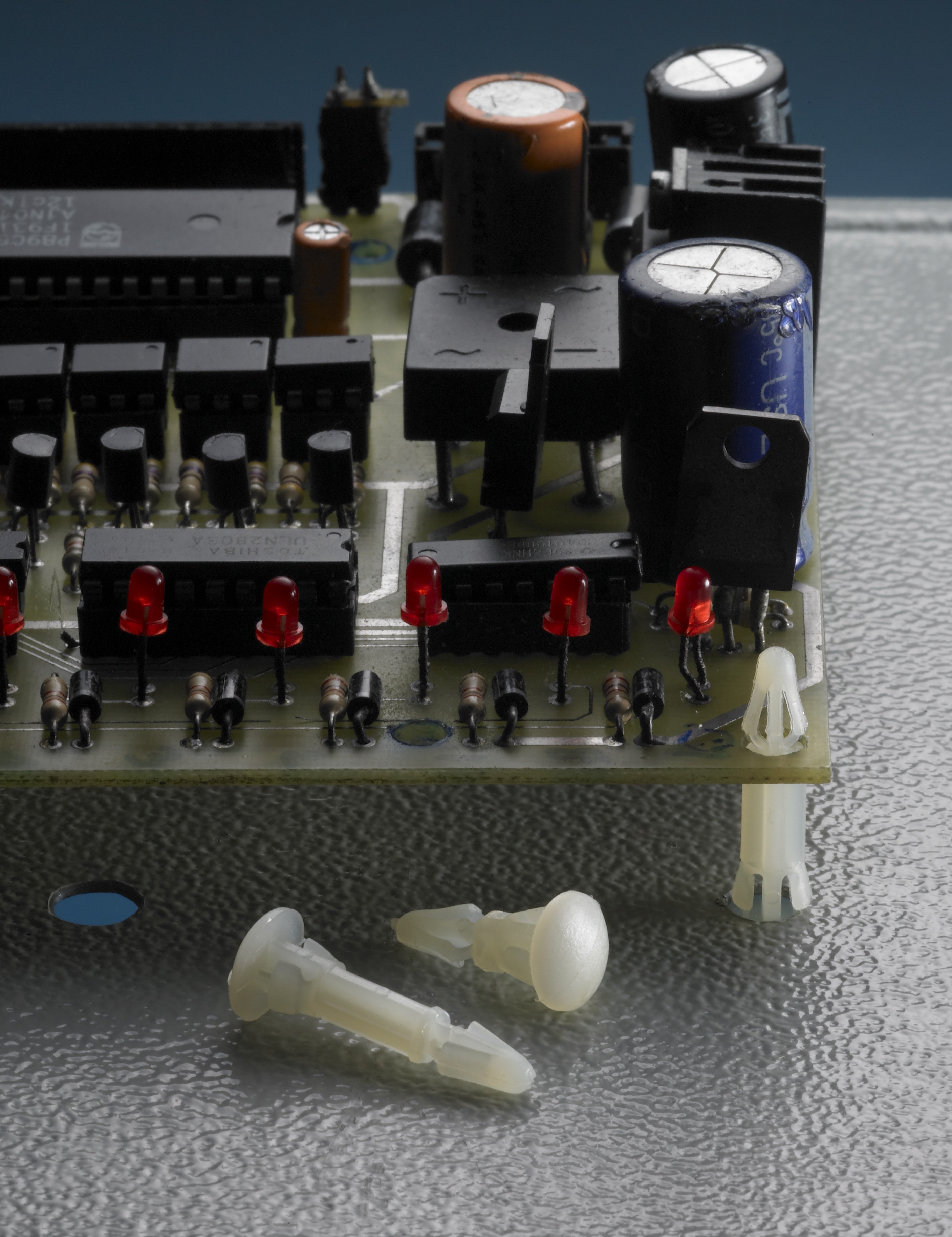

PCB Support Reverse Locking Line Drawing - PCB Support Reverse Locking End Application - PCB Support Reverse Locking

Material: Nylon 66, UL 94V-2
Color: Natural
Operating Temp: -40°C to +85°C
Packing: 100 Pcs. bag
Unit: 100 Pcs/Pkt

Tolerance:
Spacing Height: ±1mm
B: ±0.5mm
C: ±0.5mm
D: ±0.5mm

Thin button head for minimum protrusion insert the supports through both holes from chassis underside
A Spacing Height (mm) B (mm) C (mm) D (mm) Cat No. PDF Drawing
6.4 5.15 7.00 9.60
PBR-6
9.6 5.05 7.05 9.60
PBR-9
11.6 5.15 7.20 9.60
PBR-12
13.7 5.20 7.20 9.60
PBR-14
15.5 5.15 7.25 9.60
PBR-16
17.6 5.15 7.30 9.60
PBR-17
